WABCO CAN Router User Manual

11
3
CAN Router
CAN Repeater
Components
3.5 Cable

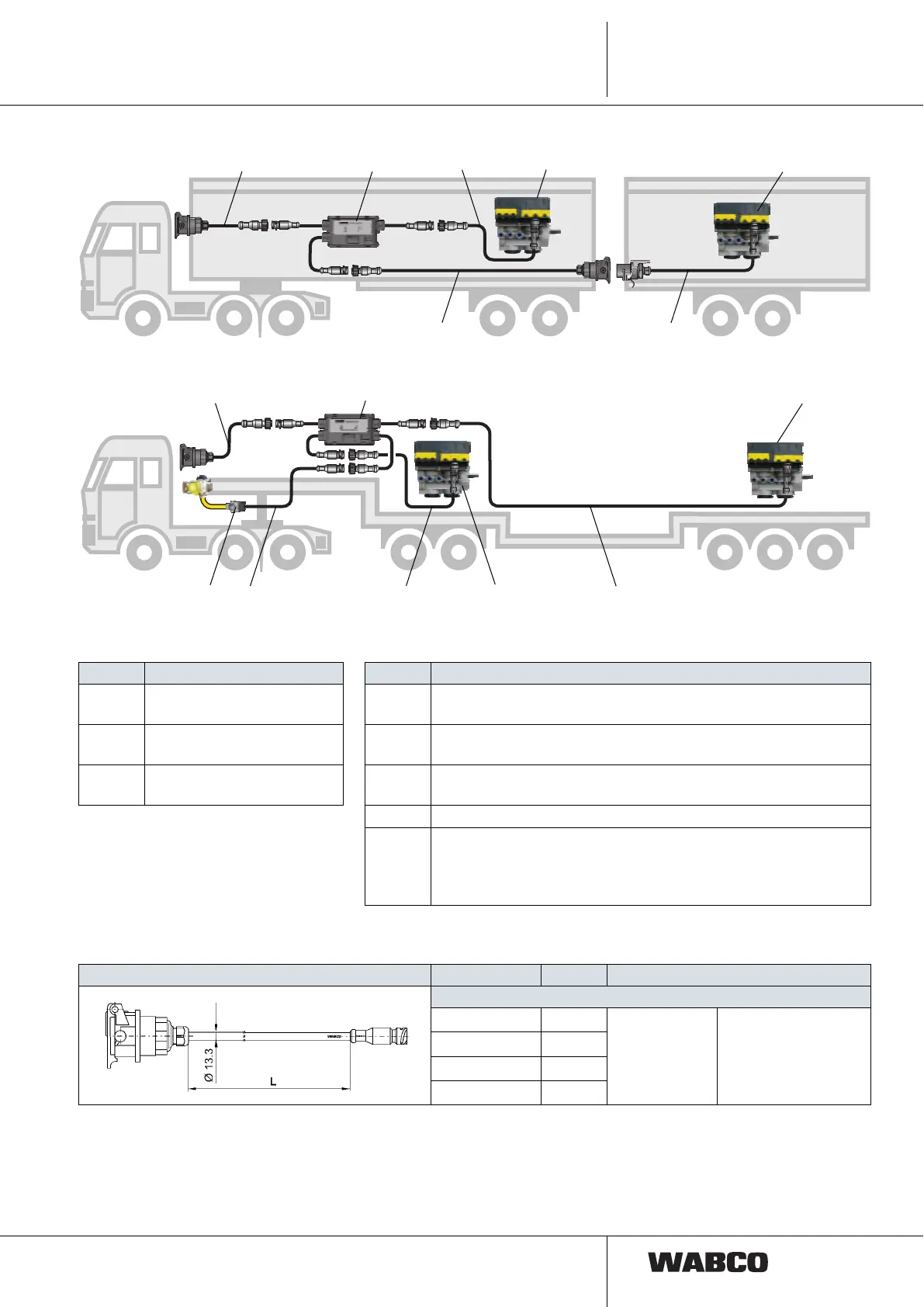

Fig. Cabling a CAN router (1) in a "Eurocombi" tractor-trailer combination with two Trailer EBS modulators (2)
Fig. Cabling a CAN router (1) with optional external pressure sensor (3) in a Flat Bed Trailer with two Trailer EBS E1
modulators (2)
3.5.1 Power supply cable
Pos. Component Pos. Cable family
1 CAN Router 4
449 133 … 0 / 449 135 … 0 (for semitrailer)
449 231 … 0 / 449 233 … 0 (for drawbar trailer)
2 Trailer EBS E Modulator 5
449 135 … 0
449 231 … 0
3 Pressure sensor 6
449 347 … 0 (for T-EBS E)
449 333 … 0 (for T-EBS D)
7 449 425 … 0
8
449 173 … 0 (for semitrailers with T-EBS E)
449 273 … 0 (for drawbar trailers with T-EBS E)
449 172 … 0 (for semitrailers with T-EBS D)
449 272 … 0 (for drawbar trailers with T-EBS D)
Cable WABCO no. L in m Cable ends - Design
Power IN semitrailer (permitted total length max. 18 m)
449 133 003 0 0,3
Socket
ISO 7638
Connector
DIN bayonet
7-pin
449 133 030 0 3,0
449 133 120 0 12,0
449 133 150 0 15,0
1
2
24
6
5
8
1
2
2
3
4
67
6
1
