WABCO CAN Router User Manual

12
3
CAN Router
CAN Repeater
Components

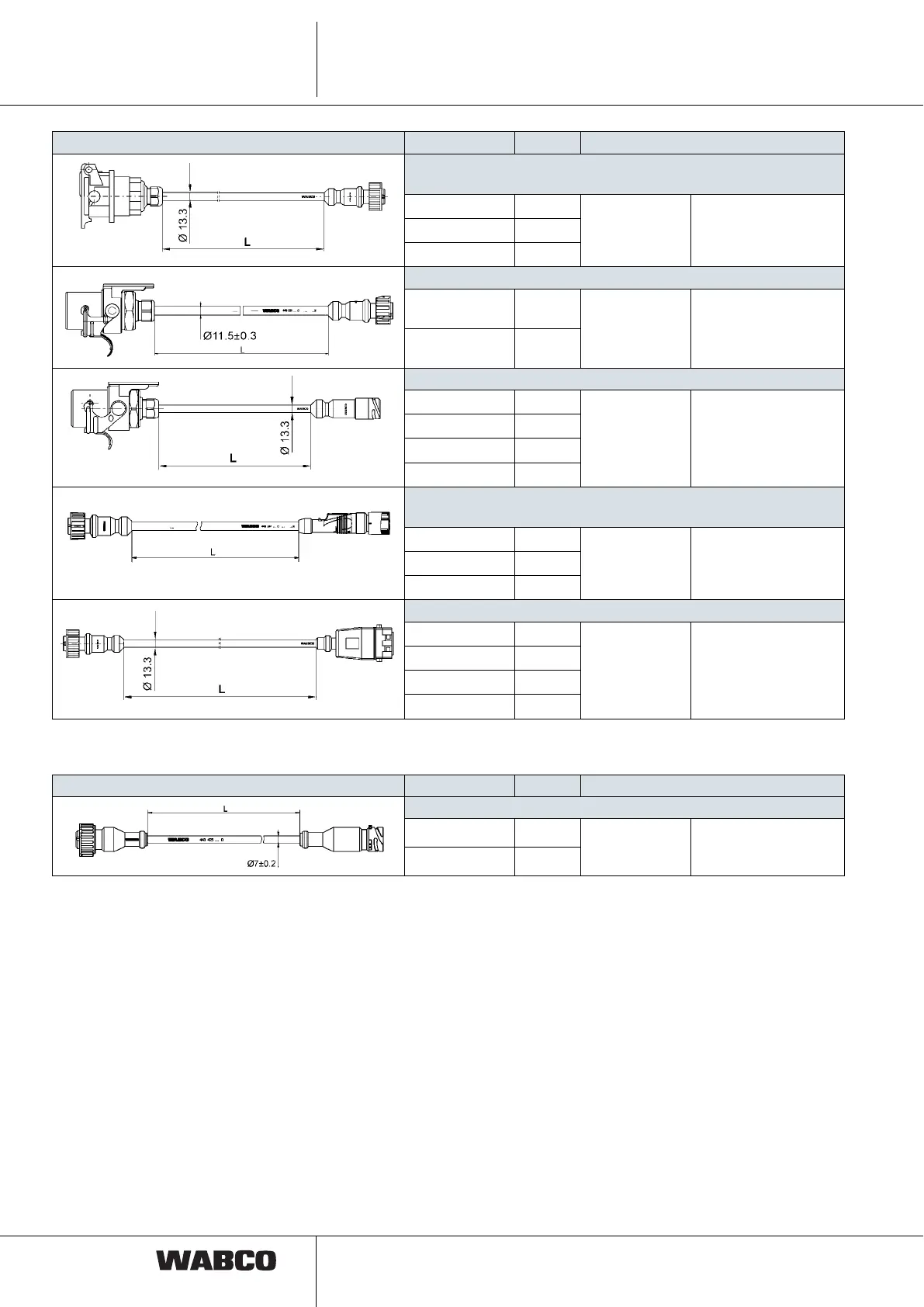

3.5.2 Sensor cable
Power IN semitrailer (permitted total length max. 18 m)
Power OUT2 (permitted total length max. 15 m)
449 135 005 0 0,5
Socket
ISO 7638
Socket
DIN bayonet
7-pin
449 135 025 0 2,5
449 135 060 0 6,0
Power IN drawbar trailer (permitted total length max. 18 m)
449 231 060 0 6,0
Connector
ISO 7638
Socket
DIN bayonet
7-pin
449 231 120 0 12,0
Power IN drawbar trailer (permitted total length max. 18 m)
449 233 030 0 3,0
Connector
ISO 7638
Connector
DIN bayonet
7-pin
449 233 100 0 10,0
449 233 140 0 14,0
449 233 180 0 18,0
Power OUT1 (with connection, permitted total length
max. 80 m)
449 347 003 0 0,3
Socket
DIN bayonet
7-pin
T-EBS E
8-pin
Cod. B
449 347 025 0 2,5
449 347 080 0 8,0
Power OUT1 (permitted total length max. 80 m)
449 333 003 0 0,3
Socket
DIN bayonet
7-pin
T-EBS D
"Power"
449 333 025 0 2,5
449 333 055 0 5,5
449 333 120 0 12,0
Cable WABCO no. L in m Cable ends - Design
Connecting cable Pressure sensor
449 425 030 0 3,0
Socket
DIN bayonet
Connector
DIN bayonet
449 425 060 0 6,0
Cable WABCO no. L in m Cable ends - Design
1
