CAN Router
CAN Repeater
Diagnostics

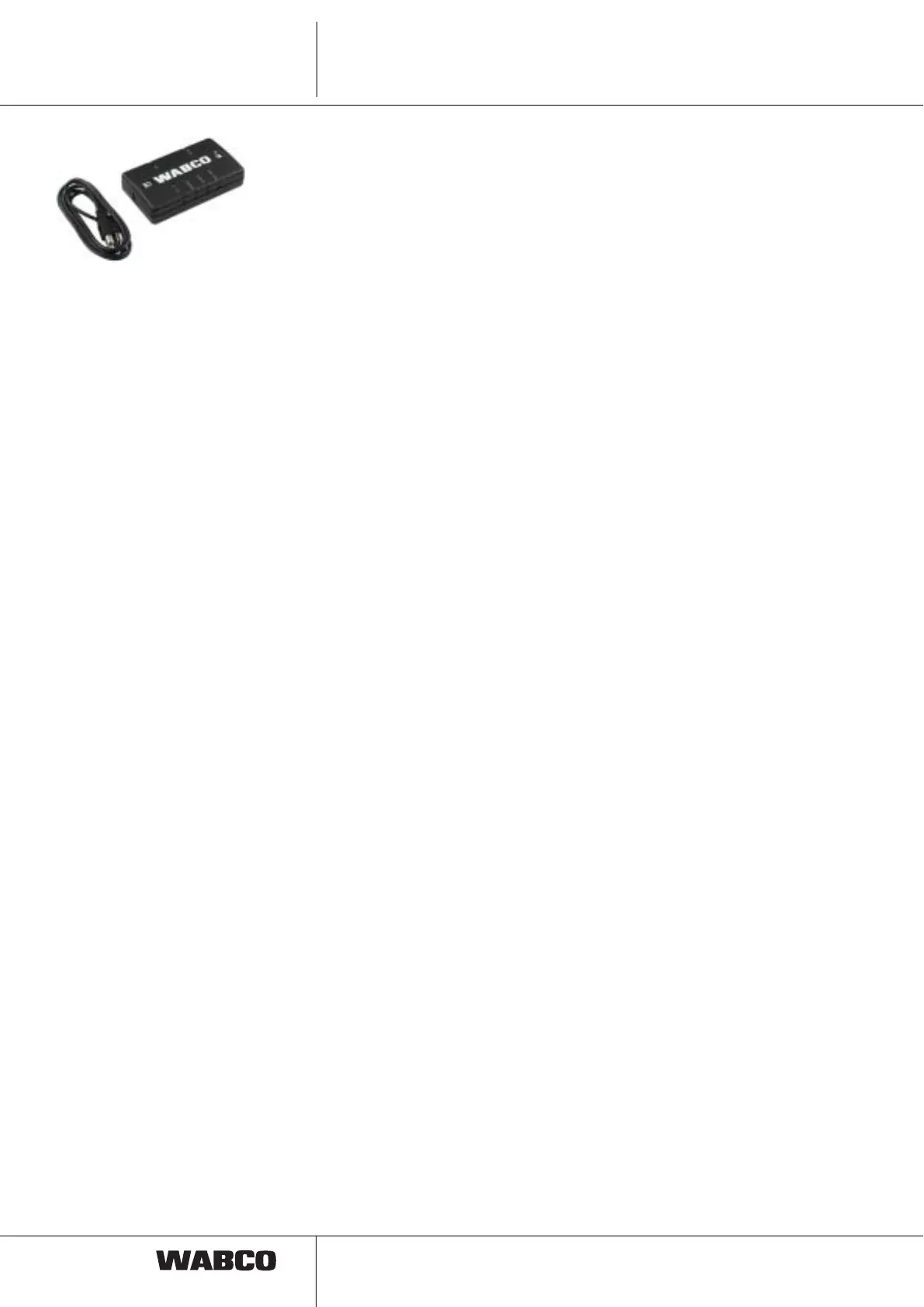

Diagnostic Interface Set
To set up the diagnosis, the WABCO Diagnostic Interface Set with order number 446
301 030 0 (USB connection) is required. The set contains the Diagnostic Interface
and a USB connecting cable to the PC or laptop.
The old Diagnostic Interfaces with serial connection (446 301 021 0) and with USB
connection (446 301 022 0) can still be used.
5.3 Diagnostic Software
There are three ways to obtain the "Trailer CAN Router-Repeater" diagnostic
software:
• Offline as a USB stick version
• Online as a single download
• As a part of a WABCO system diagnostics subscription
For the diagnosis of multiple WABCO systems, WABCO offers you four different
Diagnostic Software subscriptions via the Internet. These contain numerous
diagnostic programs at one very low price.
On the Internet, on Web page www.wabco-auto.com in the quick access area, click
on "Diagnosis" and then on "WABCO System Diagnostics". There, you will find
further information and can order the Diagnostic Software in your language and to
load onto your PC.
5.3.1 Diagnostic Software "Trailer CAN Router-Repeater"
If a diagnostics connection exists, the diagnostic software recognises, when starting,
which system – whether CAN Router or -Repeater – is connected and adapts the
display of the diagnostic software accordingly.
The following important tasks are covered by the diagnosis:
Diagnostic memory Under menu point "Messages/Diagnostic memory“, current and aged system errors
and notes are shown (see chapter 6.1 „Diagnostic messages“, page 20).
The diagnostic memory can be deleted with the respective button.
Status monitoring • Monitoring the CAN communication between the CAN router/repeater and the T-
EBS modulator
If a fault is reported in the CAN communication, the cable connection must be
checked.
If multiple CAN routers are connected in series, each device must be checked
individually. Always choose the interface directly before the CAN router for checking
the communication status to the downstream T-EBS modulator or attached router.
• Monitoring the status of the warning lights
