16
4
CAN Router
CAN Repeater
Workshop instructions
On the housing cover label, the connection designations, fuse allocations and bolt
tightening torques are shown in case fuses have to be replaced.

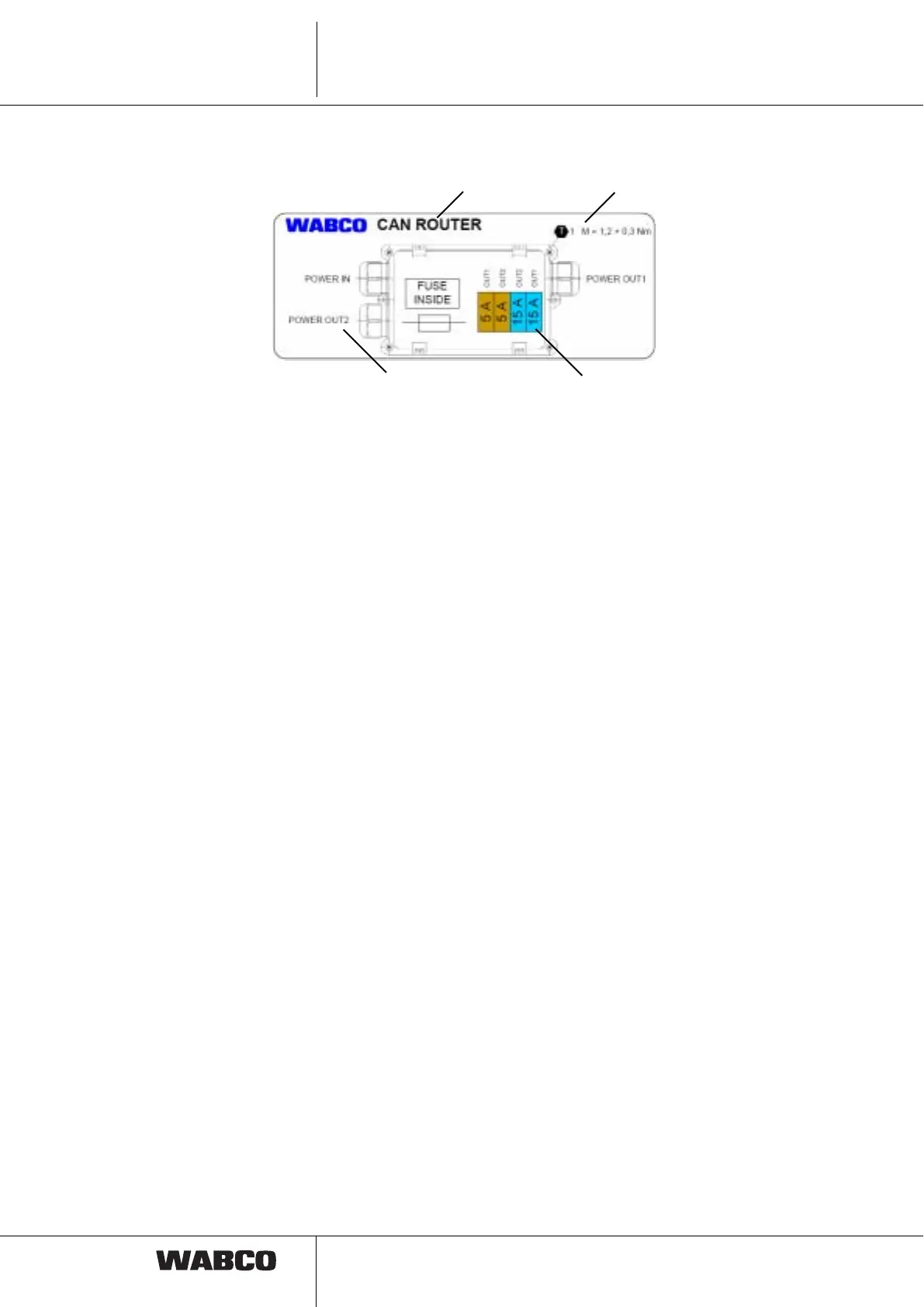

Fig. Label on the housing cover of the CAN router
A Device designation
B Tightening torque for the bolts on the housing cover
C Connection designation
D Fuse allocation
Changing a fuse Use the diagnostic software to determine the position of the defective fuse. The
position can be located in the diagnostic memory.
Mark the cover and the housing of the ECU if necessary, so that the alignment is
not wrong when the cover is replaced later.
Unscrew the housing of the ECU.
Carefully remove the defective fuse and replace with a new fuse. The "little fuse"
fuses can be purchased at most retail outlets.
Close the housing with the housing cover and make sure that it is aligned properly
with your markings.
Tighten the bolts alternating across from one another. The maximum tightening
torque is shown in position B on the housing cover.
BB
C
D
