Operation
☞ Slacken and remove the screws of cover 1.
☞ Raise the floor mat on either side.
☞ Tighten screws B on either side to 110 Nm (81 ft.lbs).
☞ Place the floor mat on either side and install cover 1.
☞ Tighten screws B on either side to 110 Nm (81 ft.lbs).
Canopy attachment
☞ Tighten screws B at all four corners to 110 Nm (81 ft.lbs).

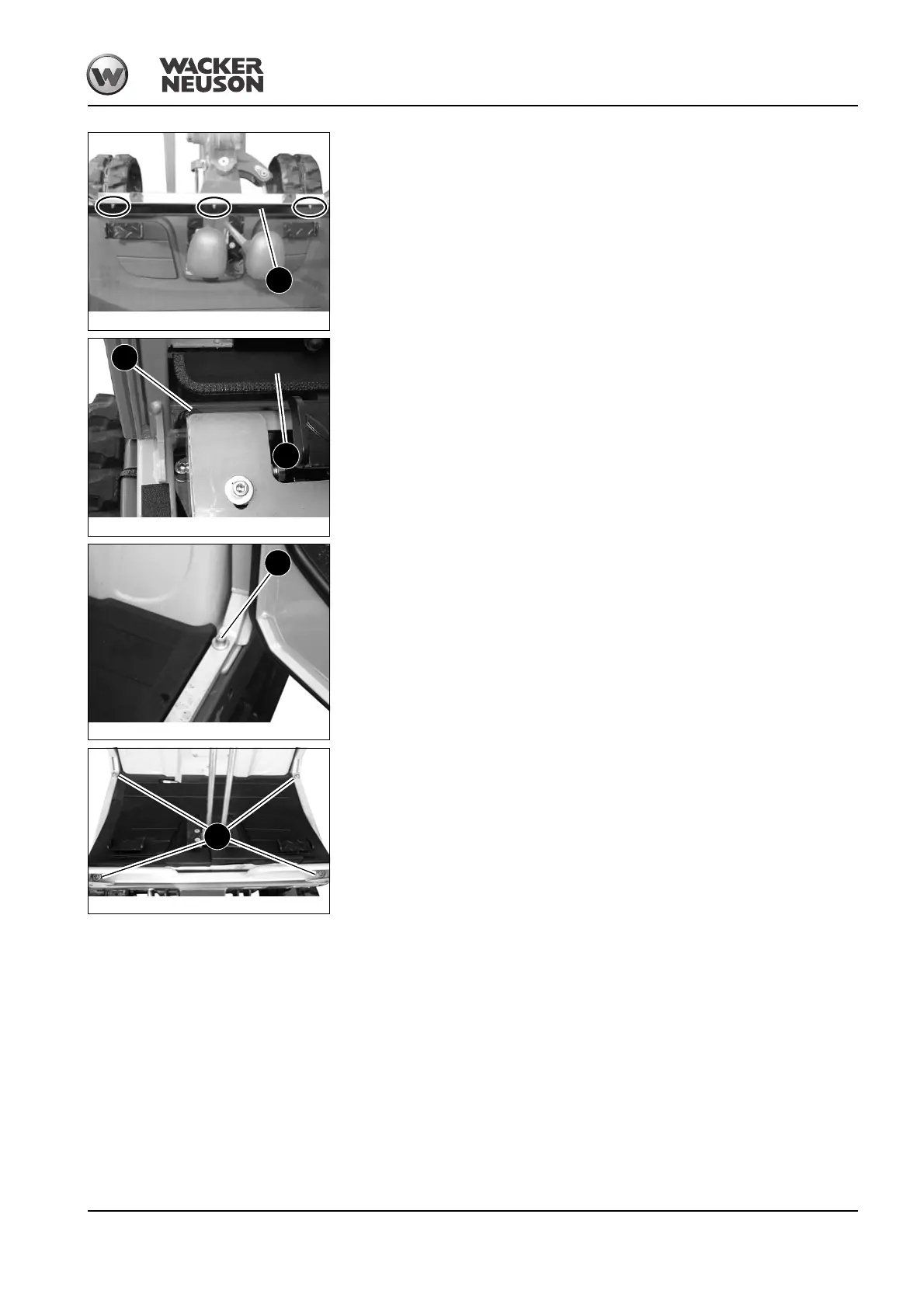

Abb. 114: Left and right-hand cab attachment
1
Abb. 115: Left and right-hand cab attachment
B
1
Abb. 116: Rear left cab attachment
B
Abb. 117: Canopy attachment
B
