Operation
Load the machine as follows:
• Fit the standard bucket and lock it safely
• Empty the standard bucket or remove the attachment
• Tilt in the bucket
• Fully raise the boom
• Pull the stick toward the machine
• Raise the stabilizer blade (it must be at the rear)
• Stop the engine
• Raise the control lever base
• Remove the ignition key and carry it with you
• Lock the upper carriage
• Do not allow anyone to stay in the cab, and close the doors and the engine cover
• Use suitable lifting gear, chains, etc.
• Install the lifting gear at the point on the boom provided for lifting the machine
• Install the lifting gear at the points on the stabilizer blade provided for lifting the
machine
• Ensure that the lifting gear has the required lengths L1, L2, L3 and L4
• Slowly raise the machine
Required lengths L1, L2, L3 and L4 of the lifting gear:

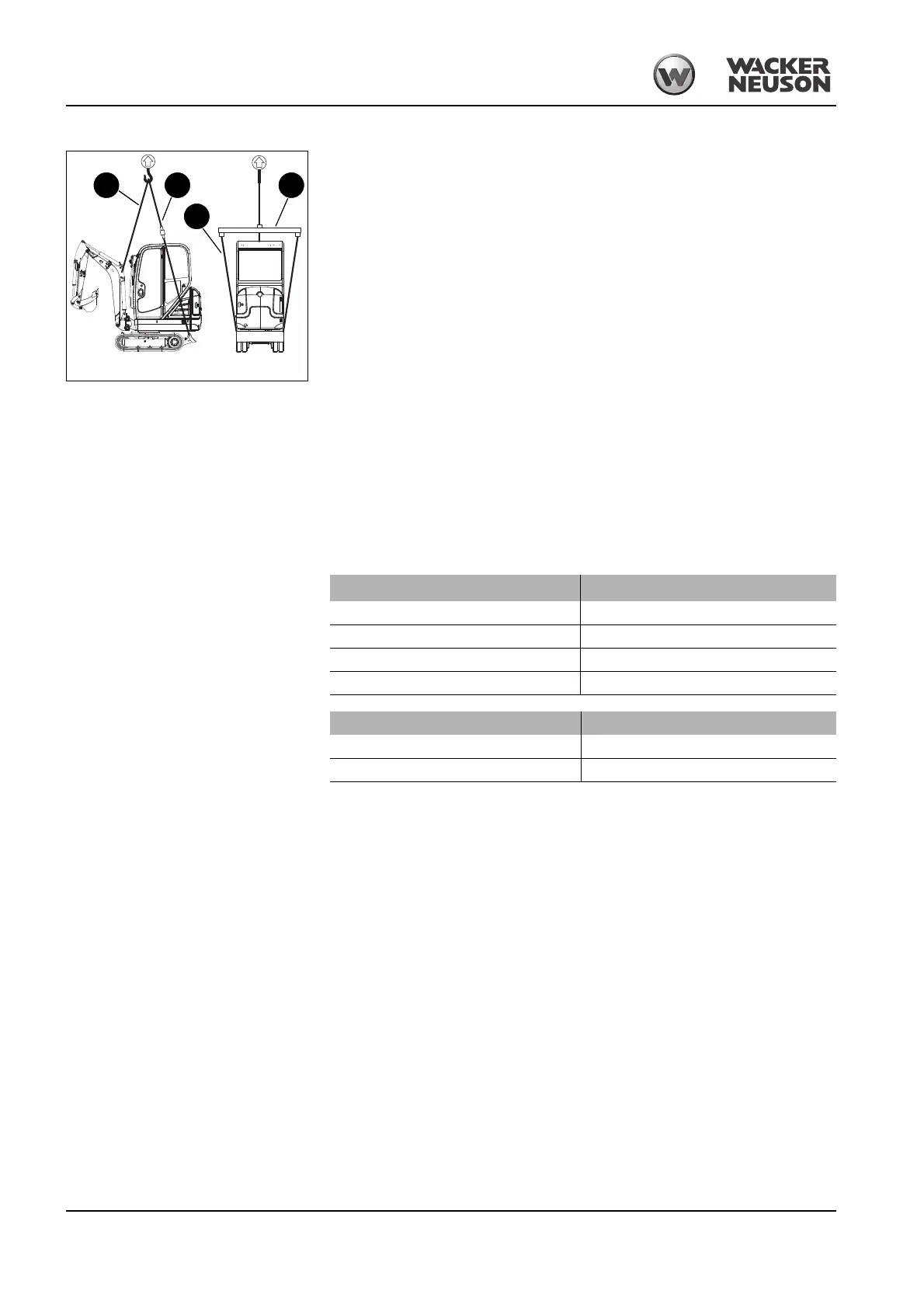

Abb. 118: Craning operation with lifting gear
L3
L1 L4L2
Length
Dimension
L1 2200 mm (87 in)
L2 3400 mm (10‘-10”)
L3 2000 mm (79 in)
L4 1600 mm (63 in)
Authorized loads Force
Boom lifting eye 40 kN (8992 lbf)
Stabilizer blade lifting eye 40 kN (8992 lbf)
