Wacker Neuson BS 70-2 Repair Manual

Repair Engine and Upper Machine Components
wc_tx001546gb.fm 73

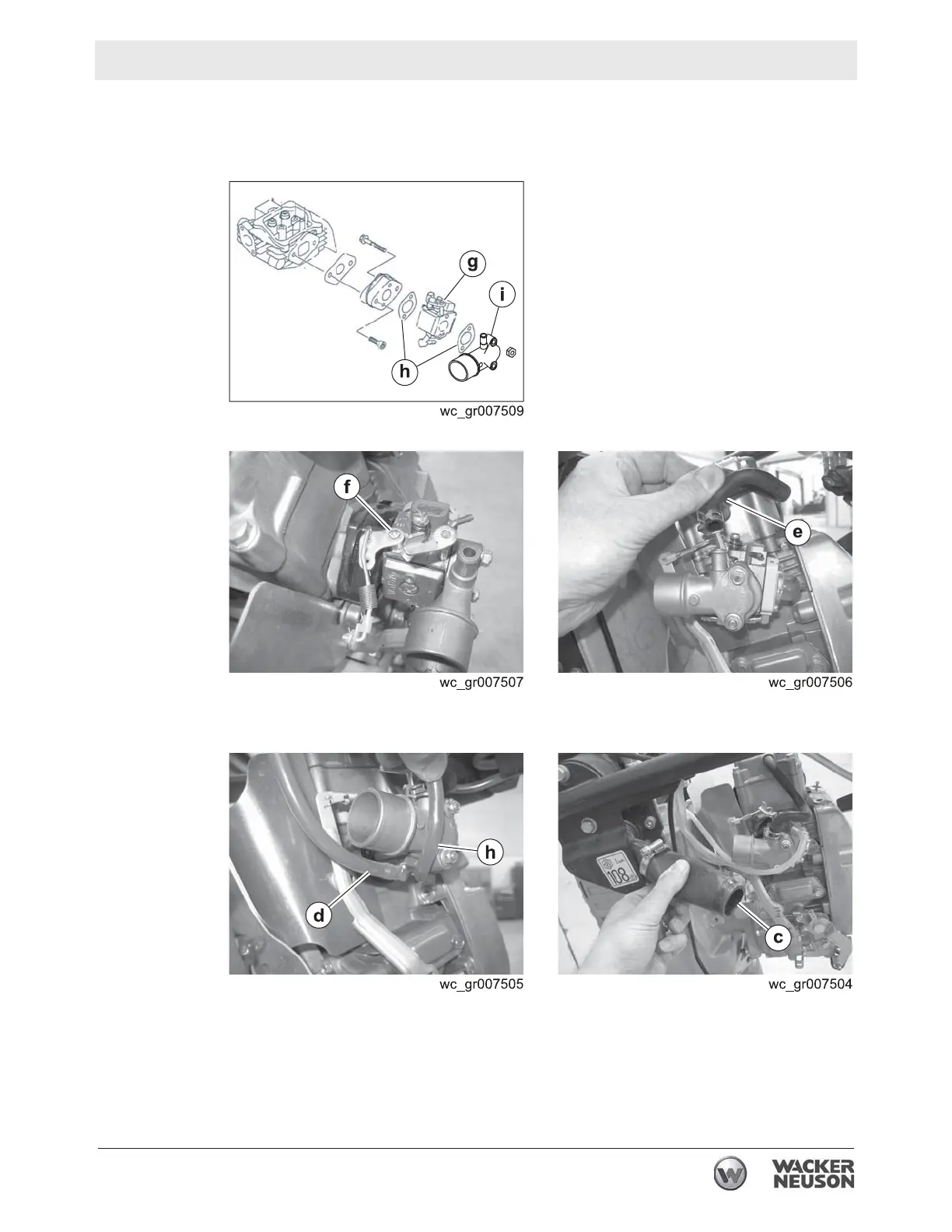

Installation
Perform the procedure below to install the carburetor.
4.23.1 Install the carburetor (g), gaskets (h), and adapter (i).
4.23.2 Reconnect the linkage with screw
(f).
4.23.3 Reconnect the hose
(e).
4.23.4 Reconnect the fuel hose (d) and the compensation hose (h).
4.23.5 Reconnect the air hose
(c).
4.23.6 Reconnect the throttle cable (b).
