4.24 Replacing the WM 100 Engine
Requirements
• Machine shut down and cool
• Loctite® 243 or equivalent
• Torque wrench
• Two wire ties
Removal
Perform the procedure below to remove the engine.
4.24.1 Remove the carburetor. See topic Replacing the Carburetor (WM 100
engine)
.

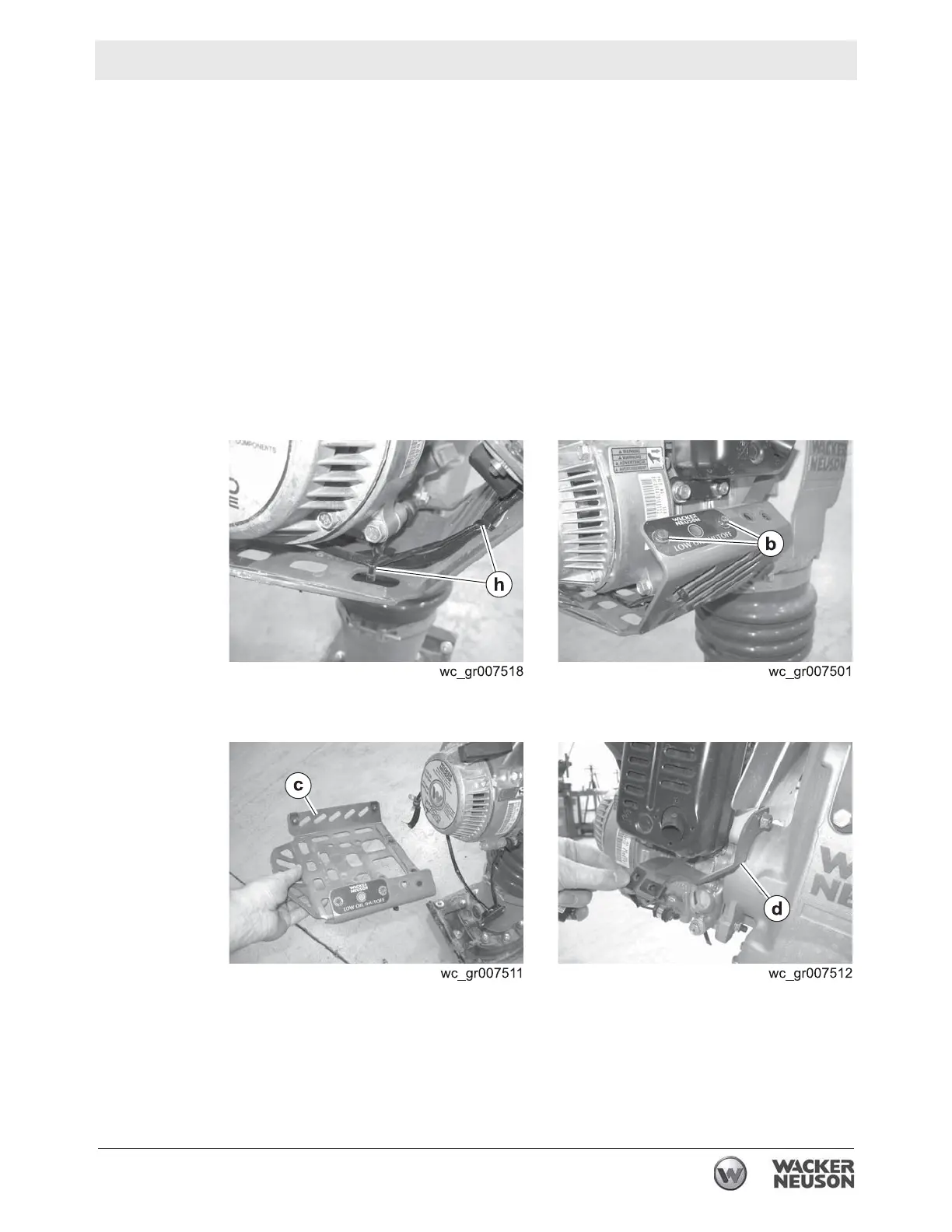

4.24.2 Clip the wire ties (h).
4.24.3 Remove the screws
(b) that hold the low oil shutdown switch.
4.24.4 Remove the lower guard (c).
4.24.5 Remove the support bracket
(d).
4.24.6 Remove the heat shield (a).
