Rammer Repair Ramming System
wc_tx001547gb.fm 93
Installation

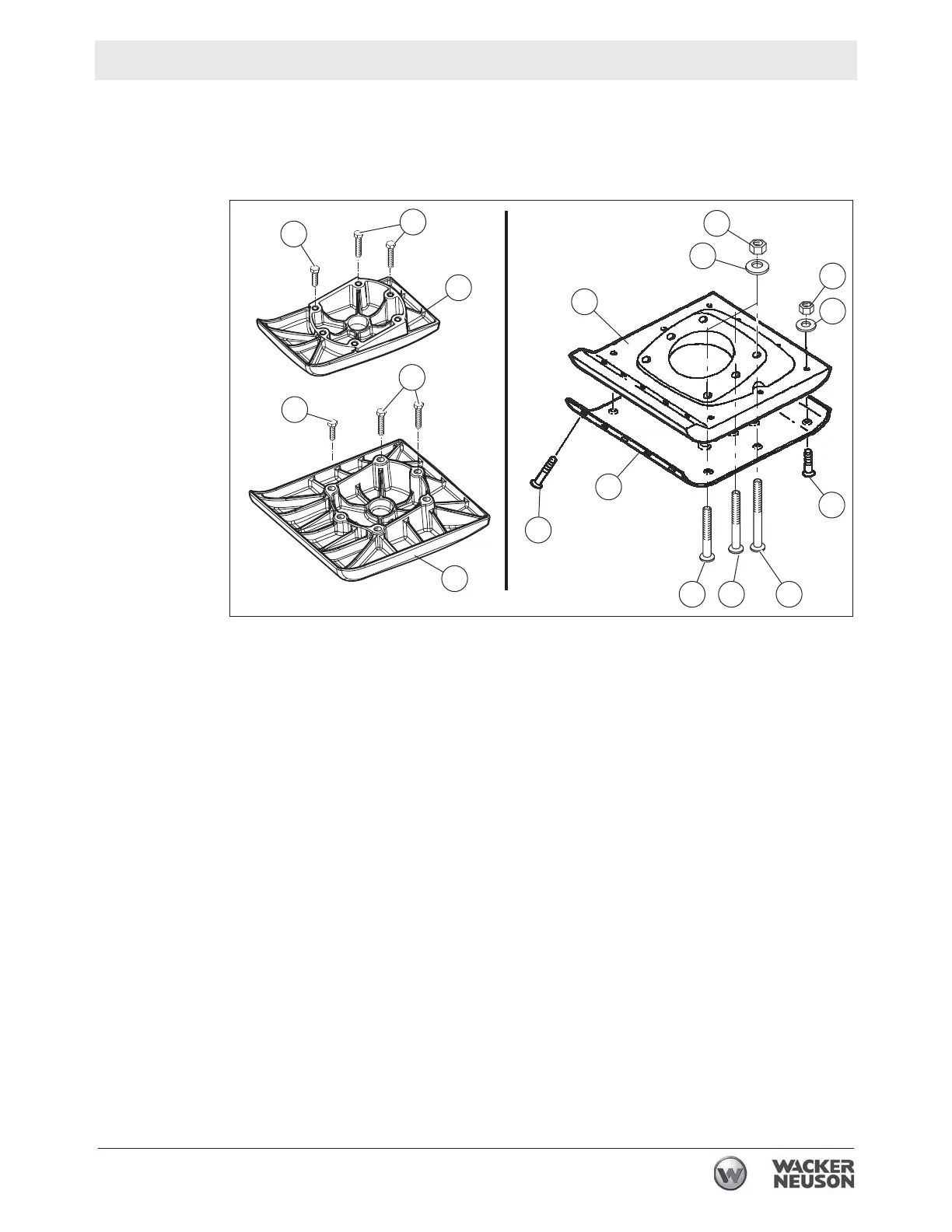

Follow the guidelines below when installing the shoes.
5.2.7 The plow bolts (m, n, and o) and (l and j) as well as hex bolts (a and b)
have different lengths. Use the longer of the bolts where needed.
5.2.8 When reusing bolts, clean the threads thoroughly before use.
5.2.9 Be sure notches of plow bolts seat in grooves of shoe.
5.2.10 Torques: (Recheck torques after first five hours of use.)
hex bolt (a): 85.5 Nm (63 ft.lbs.)
lock nuts (e): 79 Nm (58 ft.lbs.)
lock nuts (l): 24 Nm (18 ft.lbs.)
