Note: By using the automatic centrifugal clutch a re-tightening of the V-belt is
not required.
11.Replace and tighten the V-belt guard. Tightening torque 25 Nm.
Change exciter oil and check oil level
Note: Change oil and check oil level in the event of hot exciter oil. Machine must
be idle and level.
Note: To protect against oil spills, equip work surface with an impermeable film.
1. Tilt and prop up machine to the side of the filler boring.
2. Place a suitable container under the filler boring.
3. Remove any dirt around the filler boring.
4. Unscrew screw plug from filler boring, completely drain the used oil.
Note: Collect leaking or overflowing oil and, together with the used oil, dispose
of in an environmentally friendly manner in accordance with regulations.
5. Tilt and prop up machine on the other side.
Note: Only fill the prescribed amount of oil.
DANGER
Danger of scalding
Caution when draining hot oil.

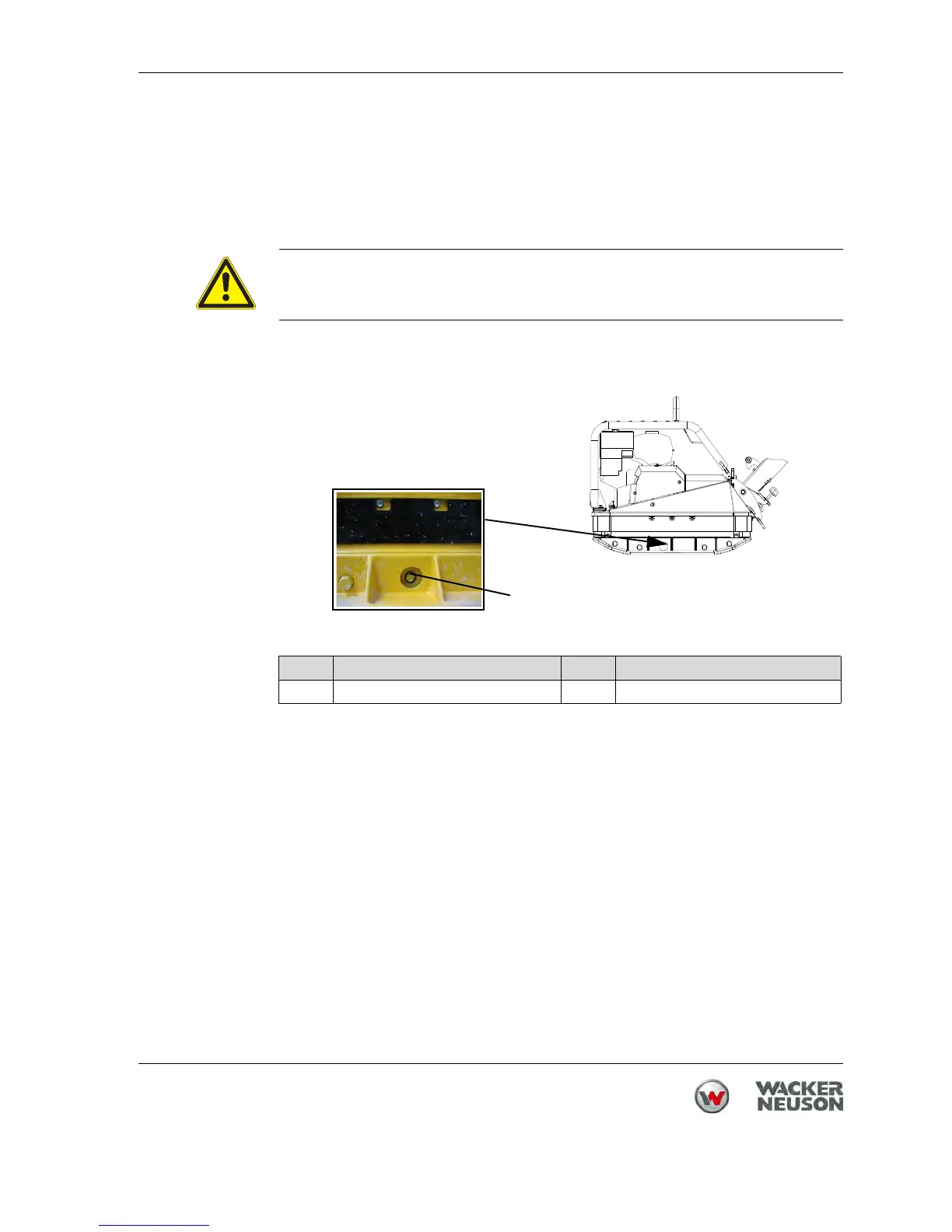

Pos. Designation Pos. Designation
1 Screw plug 2 Filler boring
