6 Components and operator's controls
100_0202_cp_0006.fm 21
With the ON/OFF switch, the diagnostic and configuration menus can also be called up and menu items
can be changed.
Setting key
Digits of the activation PIN, setup PIN, or machine settings can be adjusted with the black setting key.
Display and control lamps
Control lamp for operation
The control lamp for operation indicates whether the machine has been activated via the ON/OFF switch.
The control lamp for operation lights up green when the machine has been activated via the ON/OFF
switch.
The control lamp for operation goes out when the machine has been deactivated via the ON/OFF
switch.
Control lamp for charging
The control lamp for charging indicates whether the starter battery of the machine is being charged.
The control lamp for charging lights up red when the machine is activated.
The control lamp for charging goes out when the engine is running.
The control lamp for charging lights up red when the starter battery of the machine is no longer
charged.
Control lamp for preheating
When the engine is started, the control lamp for preheating indicates whether the glow plugs are being
preheated.
The control lamp for preheating lights up yellow as long as the glow plugs of the engine are preheated
during starting.
The control lamp for preheating goes out when preheating is completed.
Control lamp for air cleaner
The control lamp for the air cleaner displays the maintenance condition of the air cleaner.
The control lamp for the air cleaner lights up yellow when the air cleaner is dirty.
Control lamp for oil pressure
The oil-pressure control lamp indicates whether the oil pressure is sufficient.
The control lamp for oil pressure lights up red when the machine is activated.
The control lamp for oil pressure goes out when the engine is running.
The control lamp for oil pressure lights up red when the oil pressure is too low.

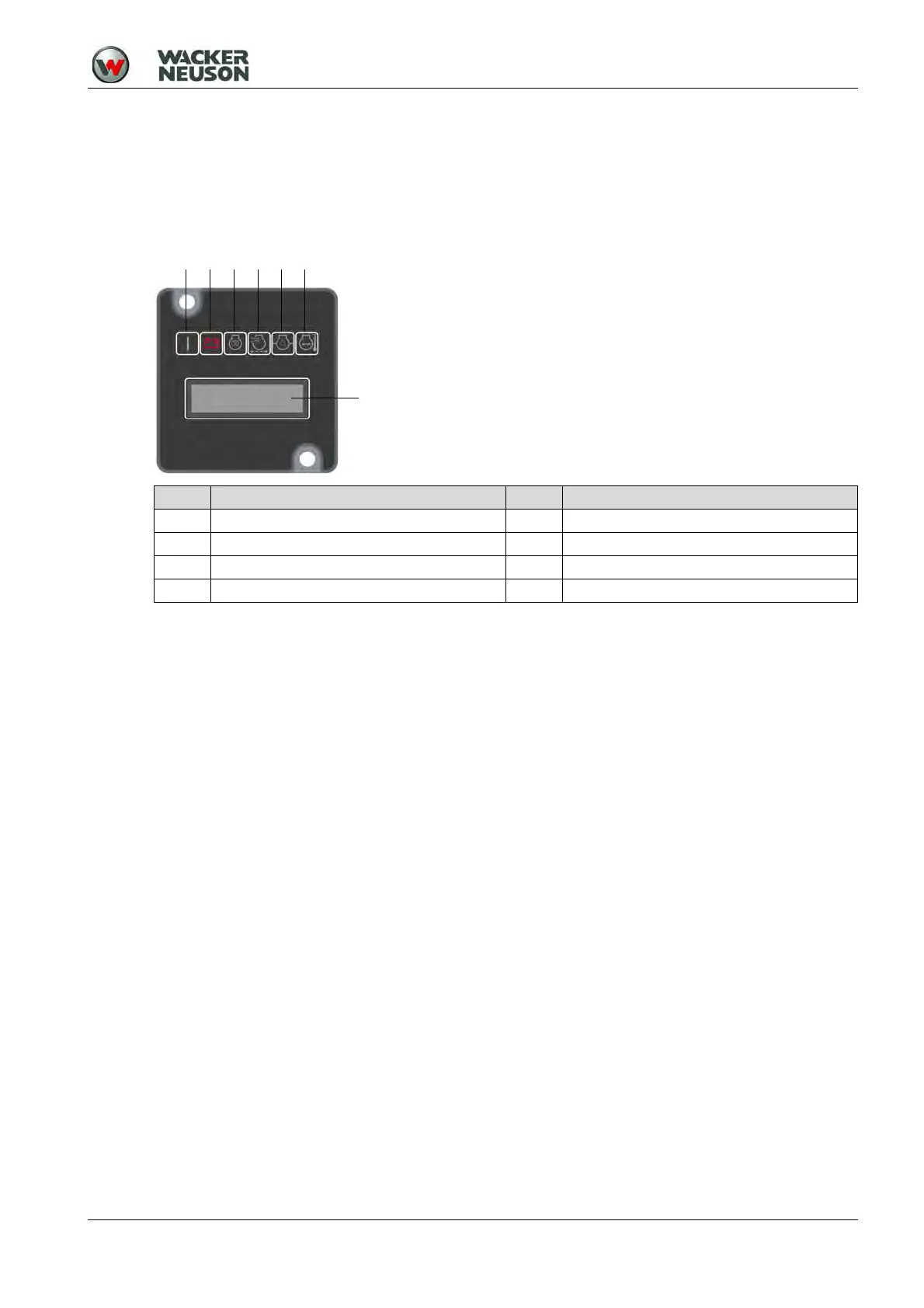

Item Designation Item Designation
1 Control lamp for operation 5 Control lamp for oil pressure
2 Control lamp for charging 6 Control lamp for coolant temperature
3 Control lamp for preheating 7 Display
4 Control lamp for air cleaner
