4 Putting into operation
Lowering the rollbar
1. Park the machine on level ground.
2. Raise ring D.
3. Remove split pin C from lock pin B.
4. Remove lock pin B.
5. Slowly lower rollbar A with the help of a second qualified person from
the side of the machine.
Raising the rollbar
1. Park the machine on level ground.
2. Raise the rollbar with the help of a second qualified person.
3. Secure the rollbar with lock pins B.
4. Secure lock pins B with split pins C.
5. Lower ring D.
Sun visor (option)
The sun visor can increase road safety. It is located at the upper edge of
the cabin. Fold down the sun visor as required. Adjust the sun visor so
that the machine travel and operating range is not covered.
Sunshield (option)
Sunshield A protects against excessive sun.
Information
Do not remove protection B if a sunshield is installed. It prevents the
sunshield from hitting the engine cover when the rollbar is lowered.

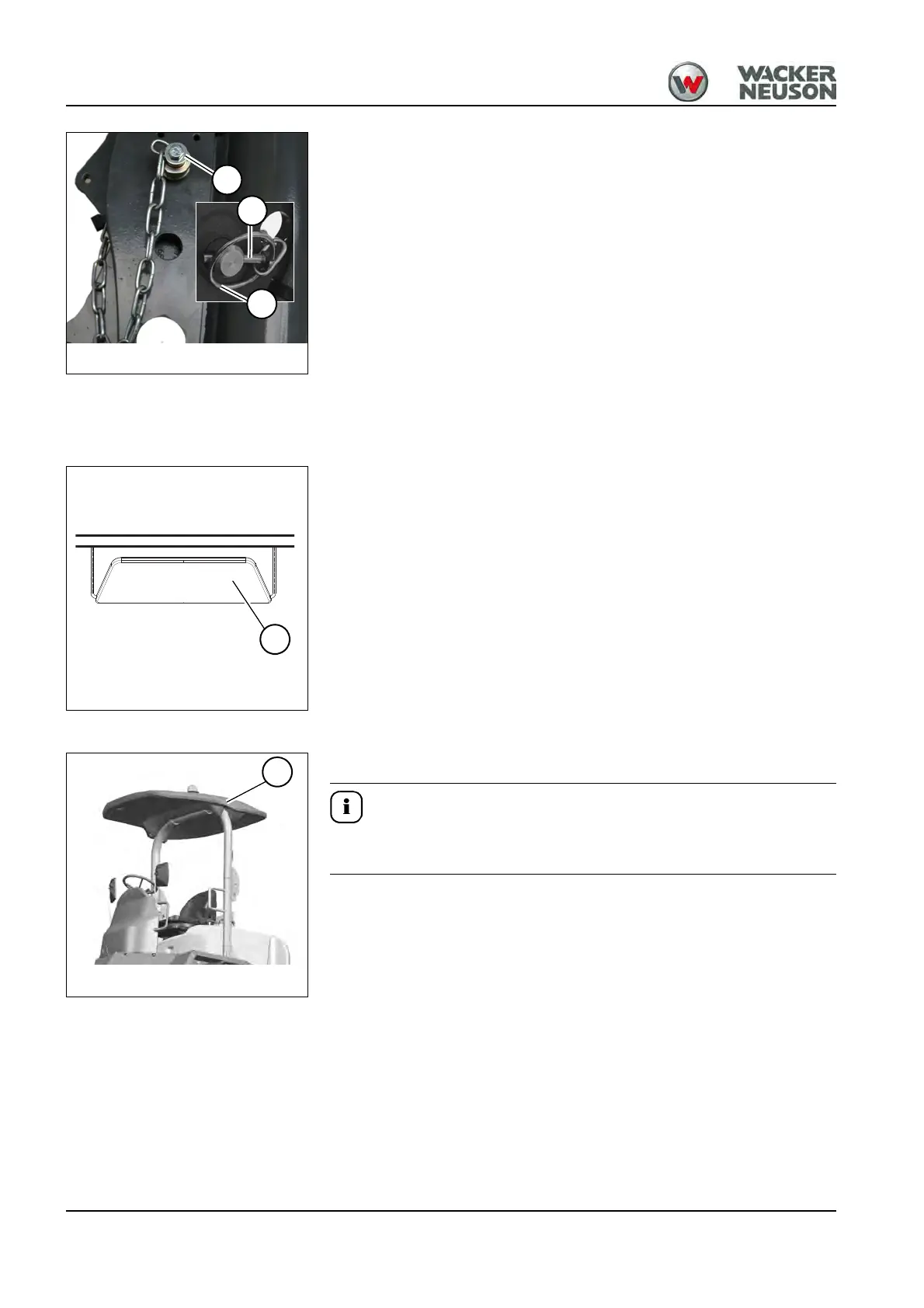

Fig. 73
B
C
D
Fig. 74 Sunshield
A
Fig. 75 Sunshield
A
