Changing the width of the stabilizer blade
NOTICE
Damage to machine when travelling through passages.
► The dozer blade and telescopic travel gear must have the same width.
Reducing the width of the stabilizer blade
1. Raise the dozer blade a little.
2. Shut off the engine and store the ignition switch key safely.
3. Pull out the bolts A left and right.
4. Screw in the dozer blade preparation B left and right.
5. Insert the bolts A left and right.
Increasing the width of the stabilizer blade
1. Start the engine.
2. Raise the dozer blade a little.
3. Pull out the bolts A left and right.
4. Fold out the dozer blade preparation B left and right.
5. Insert the bolts A left and right.
A

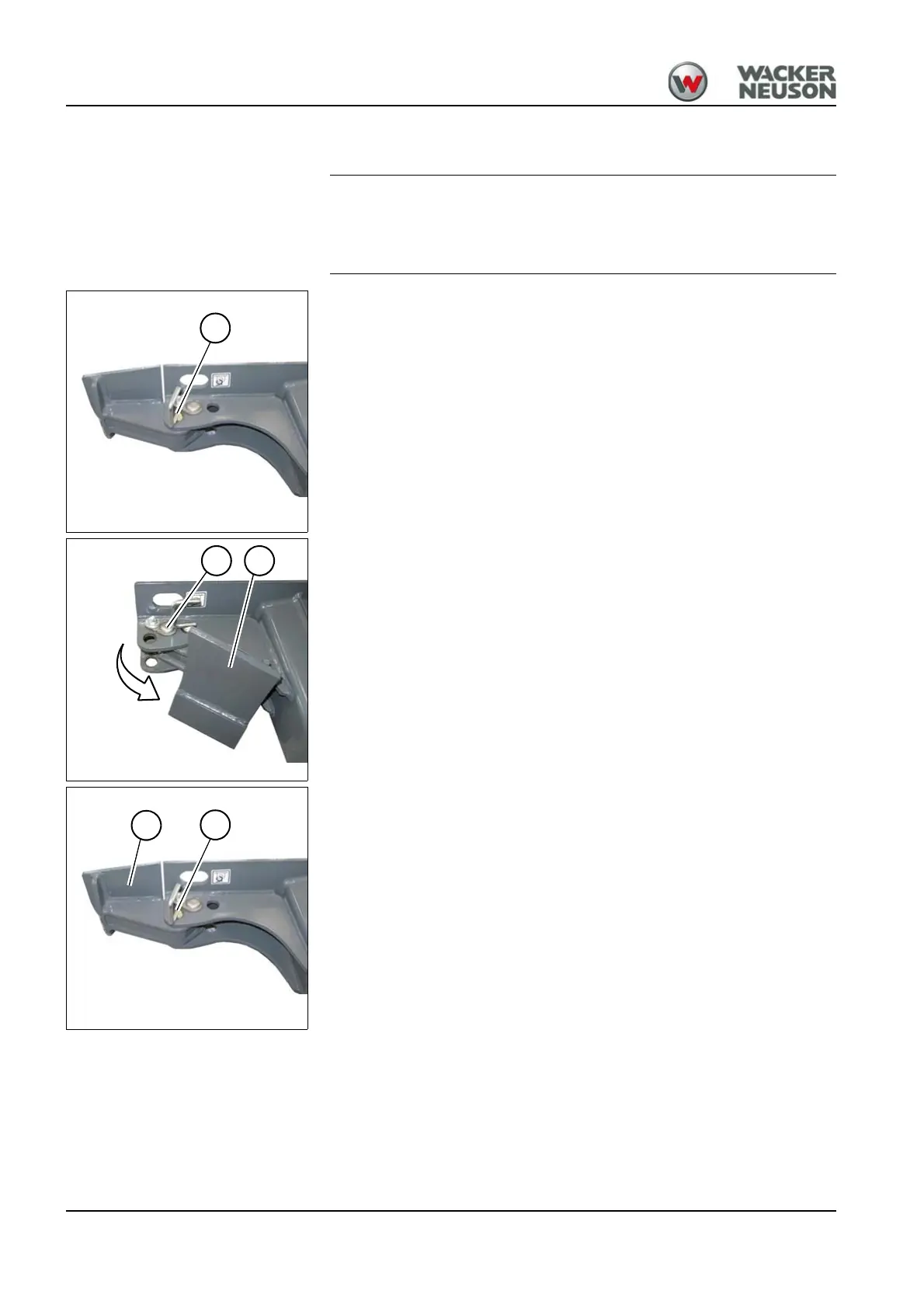

Fig. 93
A B
Fig. 94
A
B
Fig. 95
