Wacker Neuson E13-01

7-16 BA EZ17 en* 1.1 * ez17w700.fm
7 Maintenance

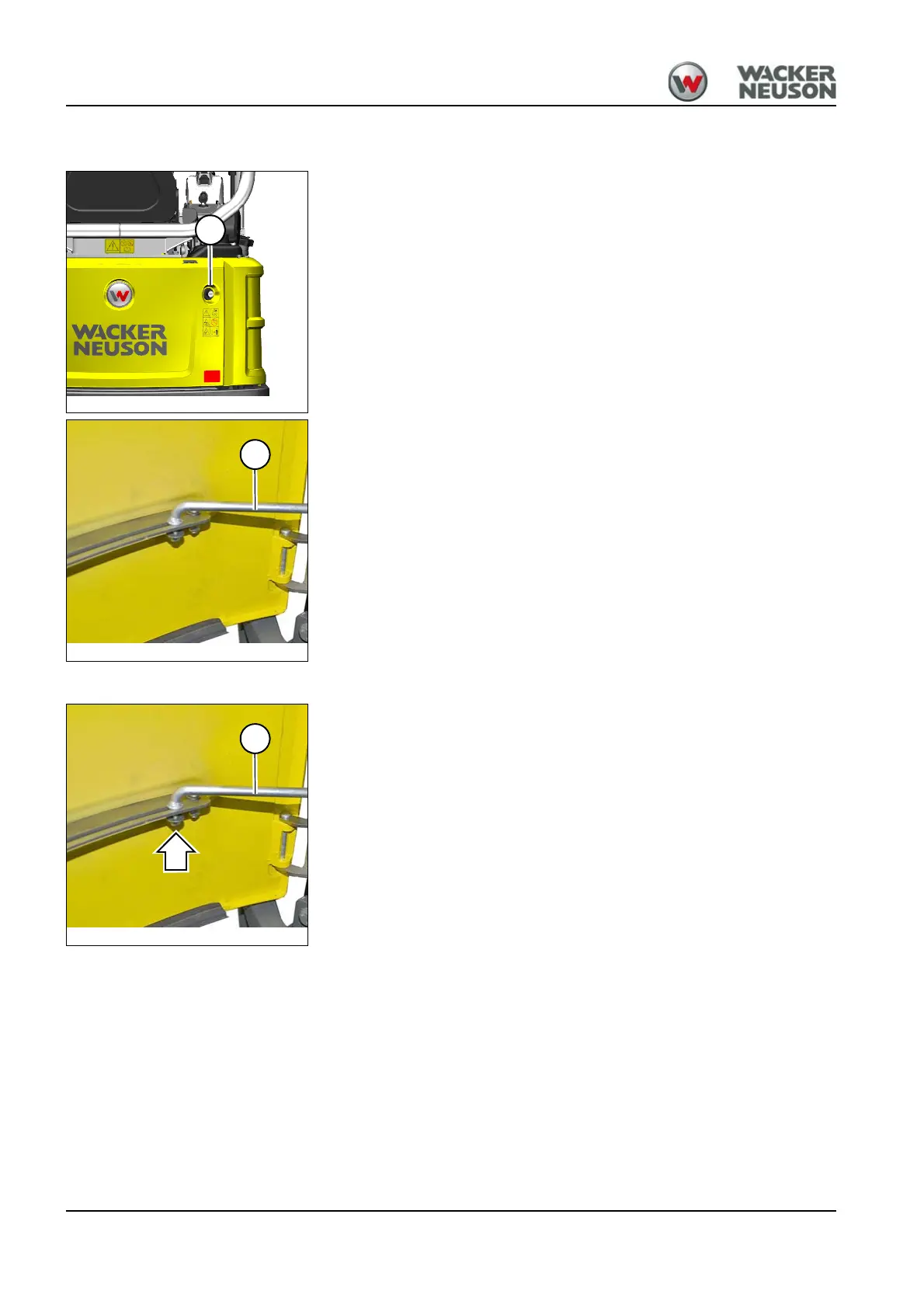

Opening the engine cover
1. Stop and park the machine. Stop the engine. See “Preparing
lubrication”.
2. Turn the starting key in lock A anticlockwise.
3. Press lock A and open the engine hood.
4. Make rod B engage in the lock.
Closing the engine cover
1. Press rod B upward and hold it in the raised position briefly.
2. Close the engine cover.
3. Turn the starting key in lock A clockwise.
Fig. 195
A
Fig. 196
B
Fig. 197
B
