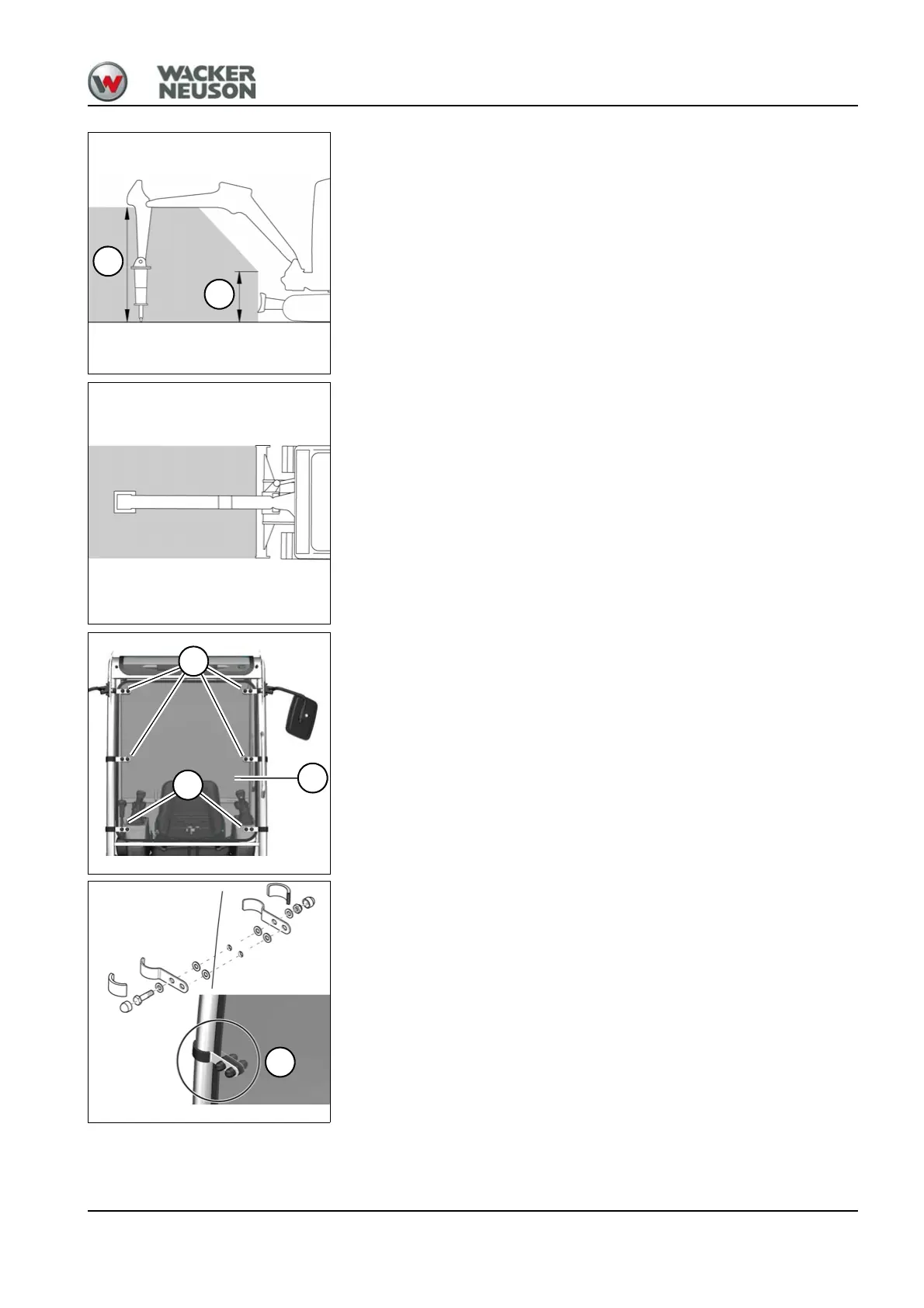

Wacker Neuson E13-01 User Manual

BA EZ17 en* 1.1 * ez17i400.fm 4-15
Putting into operation 4
Work range
Work range height A: 120 cm (47 in), B: 50 cm (20 in)
Figures 59 and 60 refer to work with a Wacker Neuson hydraulic hammer.
Working with another tool can result in a different work range.
Assembly
1. 2 persons are required for installing.
2. Stop and park the machine. Stop the engine. See “Preparing
lubrication”.
3. Attach shatter protection A to the tie-down lugs B .
Fig. 59 (symbolic representation)
B
A
45°
Fig. 60 (symbolic representation)
Fig. 61
B
A
B
Fig. 62
B
