Putting into operation 4
1. Move vehicle Y close to machine X so that the length of the battery
jumper cables is sufficient.
2. Stop the engine of vehicle Y.
3. Open the battery cover of the vehicle X –seechapter“ Battery cover”
on page 7-18.
4. Open the battery maintenance access from the vehicle Y.
5. Connect the battery jumper cables in the following order: A – B – C –
D.
6. Start the engine of vehicle Y.
7. Wait five minutes for the empty battery to be charged a little.
8. Start the engine of machine X.
9. Switch on the boom light of machine X in order to avoid voltage peaks
and to protect the electronic system.
10.Disconnect the battery jumper cables in the following sequence:
D – C – B – A.

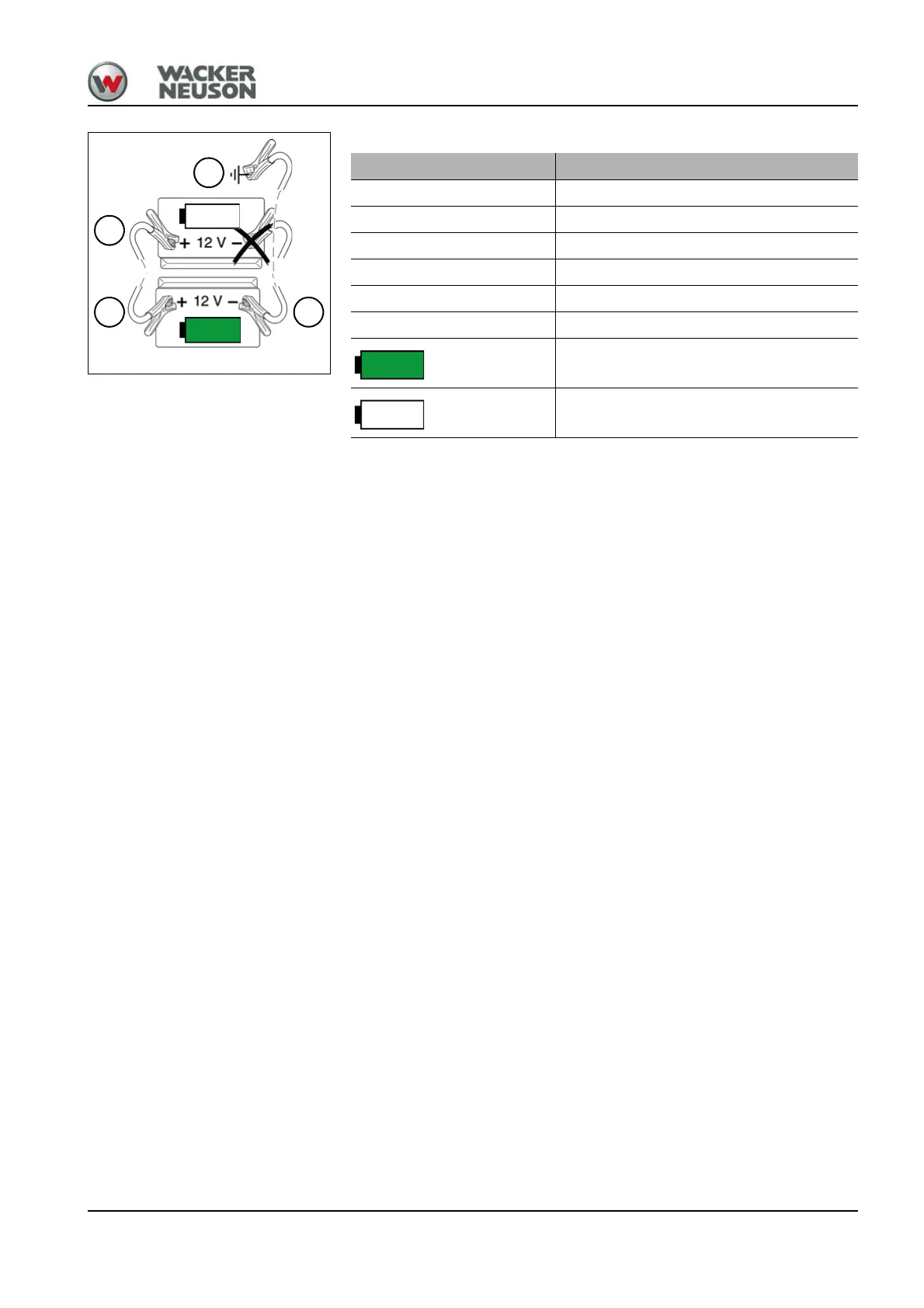

Designations/symbols Meaning
X Machine with empty battery
Y Vehicle with full battery
A Positive/machine X
B Positive/vehicle Y
C Negative/vehicle Y
D Negative/machine X
Full battery
Dead battery
