5 Operation
Drive range selection tier III
The machine has two speed ranges that can be selected with the dozer
blade lever.
1: Speed 1
2: Speed 2 (control lamp B appears in the display element)
In speed 2, reduced tractive power jerky movements may occur when
cornering due to the lower traction force.
Drive range selection tier IV (swiveling dozer blade option)
The vehicle has two speed ranges that can be selected with push button A
on the dozer blade lever.
If speed 2 is selected, the vehicle shifts to Auto 2-Speed mode.
The vehicle moves at higher speed.
Higher vehicle travel resistance (for example in curves): vehicle
automatically shifts down to speed range 1.
Normal vehicle travel resistance: vehicle automatically shifts up to speed
range 2.

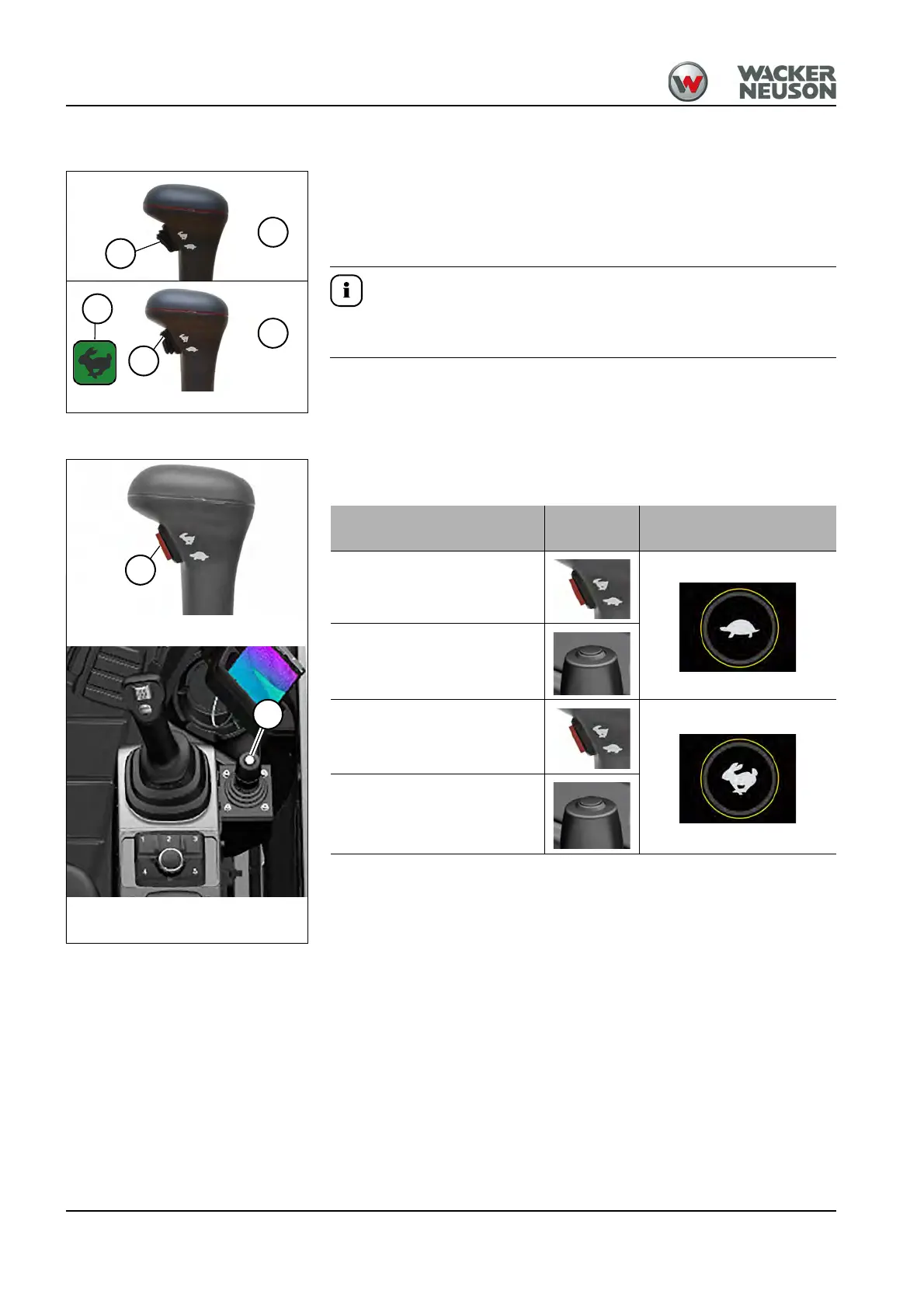

Fig. 127A Drive range selection tier IV (swiveling
dozer blade option)
A
Fig. 127 Drive range selection tier IV
A
Speed range selection
Push but-
ton
Indication
Speed range 1
Speed 1 (with swiveling dozer
blade option)
Speed range 2 (Auto 2-
speed)
Speed 2 (Auto 2-Speed/with
option of swiveling dozer
blade)
