7-8 BA E16 en* 1.0 * E16_10_700.fm
7 Maintenance
Permissible Bolt Settings Lehnhoff MSWS
The bolt settings can differ, depending on the condition of the quickhitch
and attachment receptacle.
Maximum permissible bolt settings:
Y: Internal or external edge of the quickhitch
In the case of deviating bolt settings, do not operate the mechanical
quickhitch; contact an authorized service center.
Check the bolt settings on a monthly basis.
The indicated bolt settings only apply to the attachments presented in this
Operator's Manual. (System Lehnhoff MSWS).
Quickhitch
X (inwards)
mm (in)
Z (outwards)
mm (in)
MS 03 0 (0) 6 (15/64)

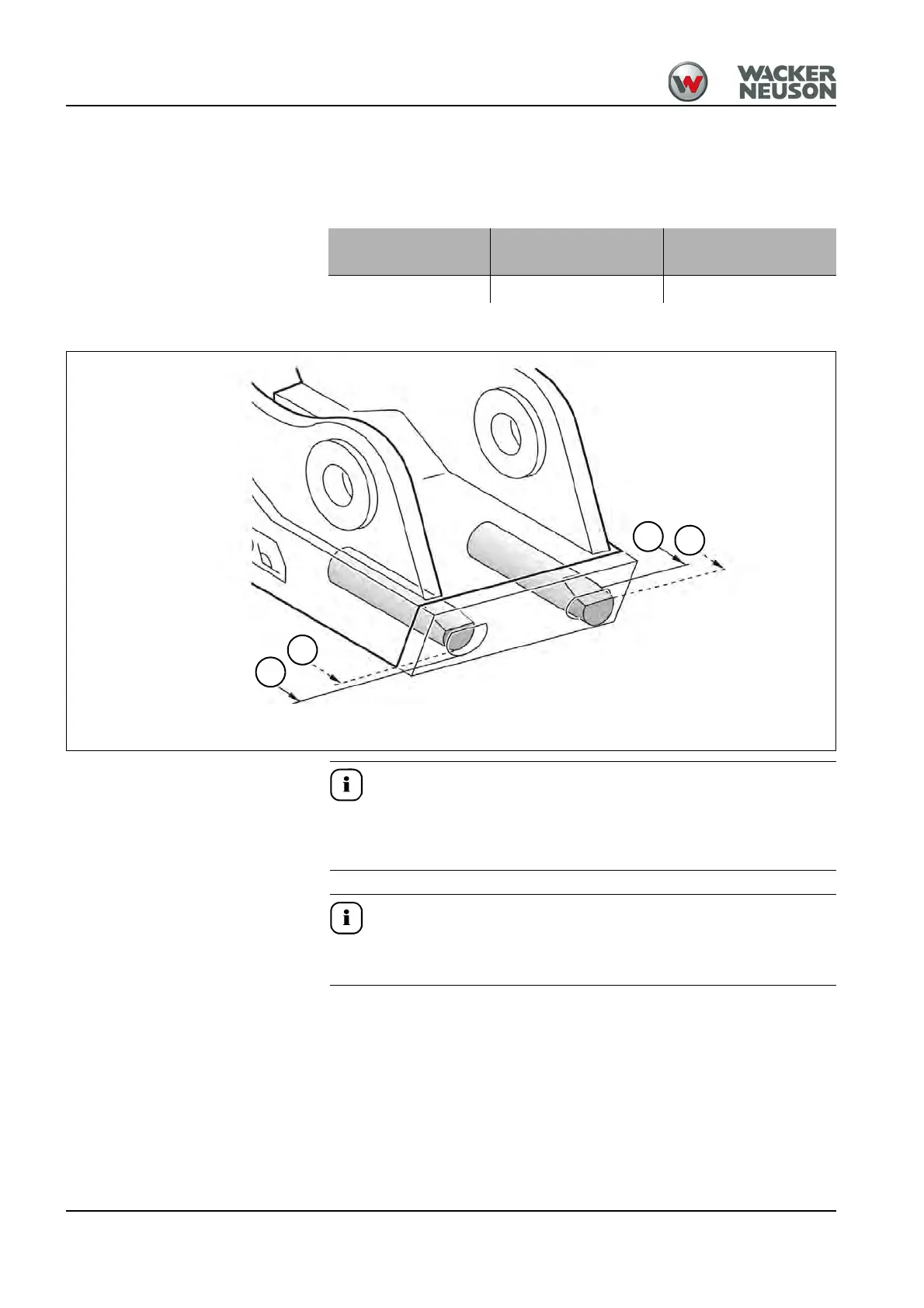

Fig. 263 (symbolic representation)
Z
Y
Y
X
