OM ET18/20/24 us 1.3 *
et18_20_24b510.fm
5-19
5
Increasing the width of the st
abilizer blade
1.
Raise the stabilizer blade to about
1 – 2 cm (about
0.39 – 0.79
in).
2.
Pull out pins
A
on either side.
3.
Turn out the stabiliz
er blade extensions
B
on either side.
4.
Insert pins
A
on either
side.

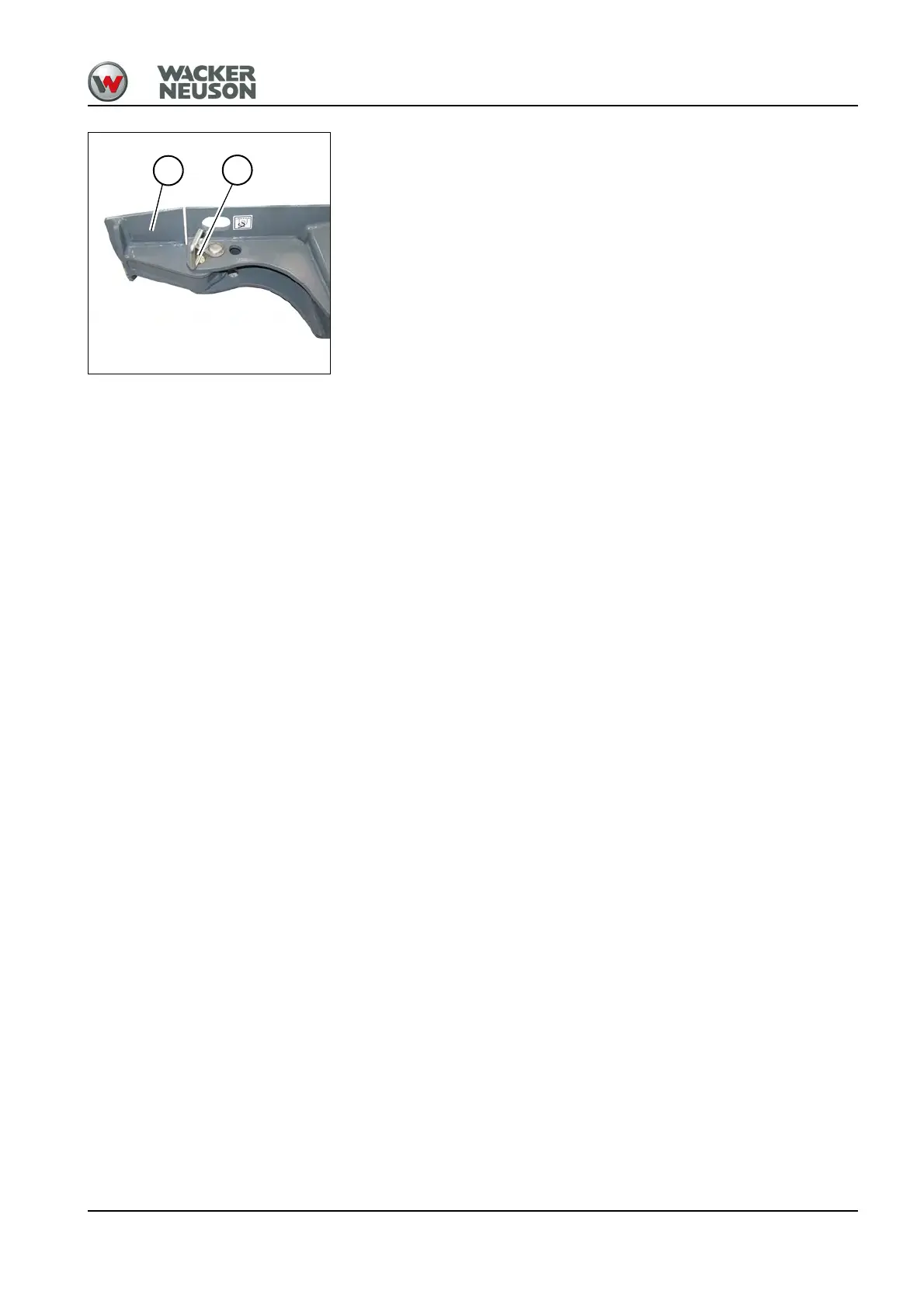

Fig. 145:
Changing the width of the stabili
zer
blade
A
B
112
114
