Legend

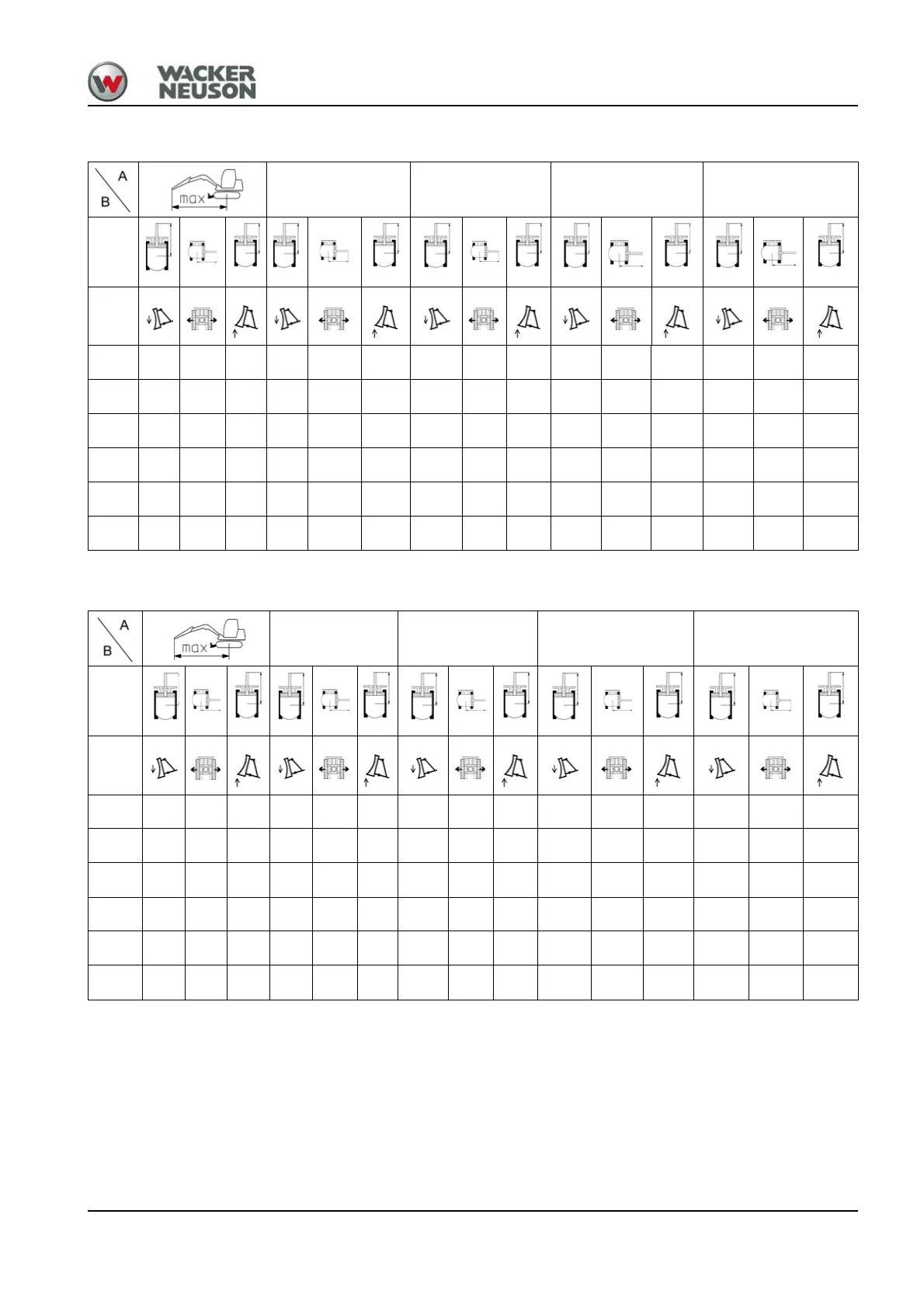

Authorized lift capacity applies to entire slewing range of 360°.
All table indications in kg (lbs) and horizontal position on firm and level
ground without bucket or exchangeable attachment.
The machine’s lift capacity is restricted by the settings of the pressure
limiting valves and the hydraulic system’s stabilizing features.
Neither 75 % of the static tilt load nor 87 % of the hydraulic lift capacity is
exceeded.
Calculation basis: according to ISO 10567. Setting pressure on boom
hydraulic cylinder 22500 kPa (3263 psi).
Lift capacities apply to machines under the following conditions:
• Lubricants and engine/machine fluids at the mandatory levels
• Full fuel tank
• Cab or canopy
• Machine at operating temperature
• Operator weight 75 kg (165 lbs)
Designation Explanation
X Reach from live ring center
Z Load hook height in the respective range
max Authorized lift capacity with horizontal boom
L Stick short/long
