3.2 Generator Monitoring
Generator information is displayed on the top line of the LCD panel and
is scrolled continuously while the generator is operating, to show the
voltage, amperage and frequency of each phase.
Note: To prevent the display from scrolling, press the ENG HRS switch
down.
Volts “V”- Displays the AC output voltage being produced by the
generator.
Phase “Ø” - Indicates which phase is currently being displayed.
Amps “A” - Displays the AC output amperage produced by the
generator. If the generator is operating at no-load, output amperage
will display a 0.
Hertz “Hz” - Displays output frequency.

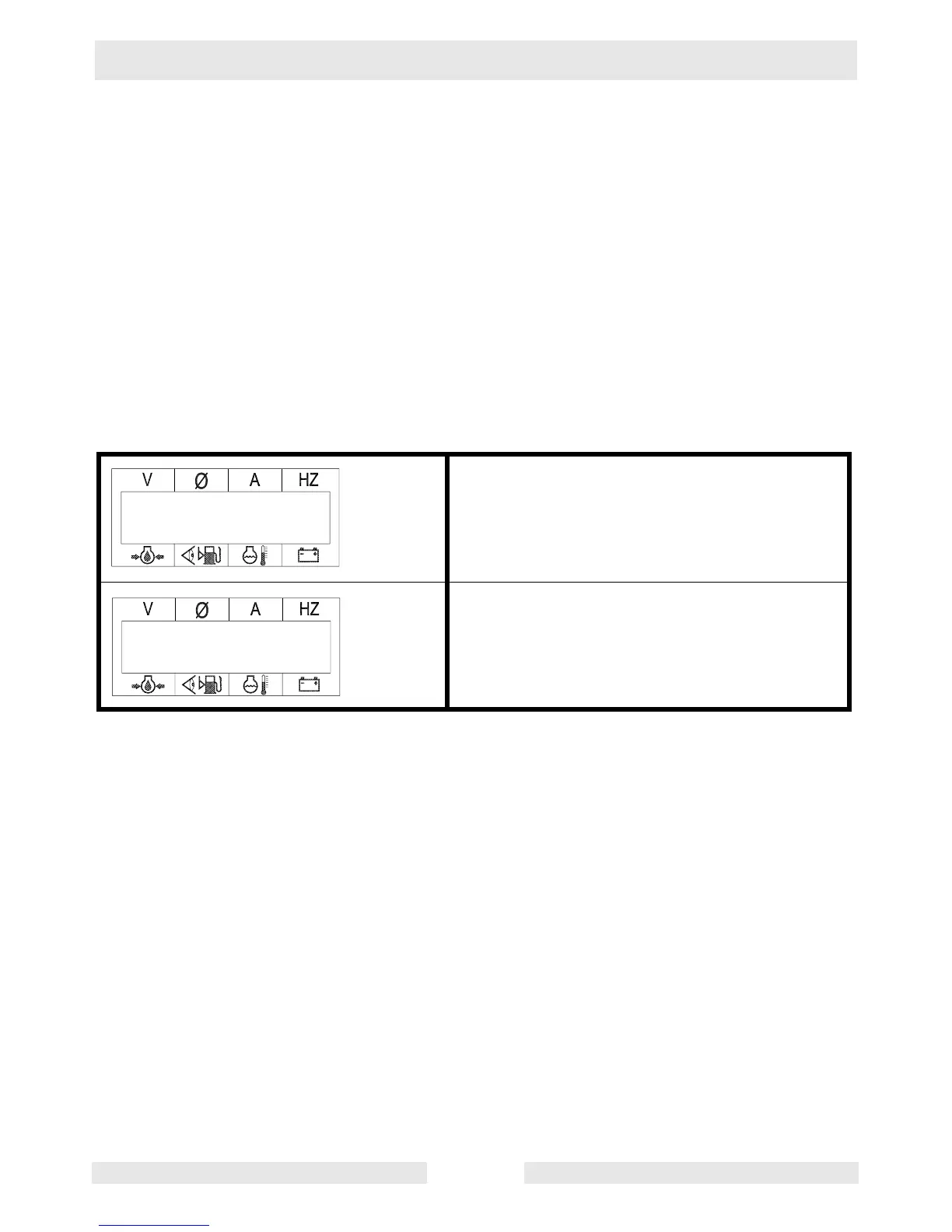

Sample display with engine running.
Sample display in “Auto” mode.
208 1 24 60
78 85% 175 14.3
UNIT IN AUTO
Ø 100% 85 13.2
