Schematics GP / GPS 5600A
60 wc_tx001774gb.fm

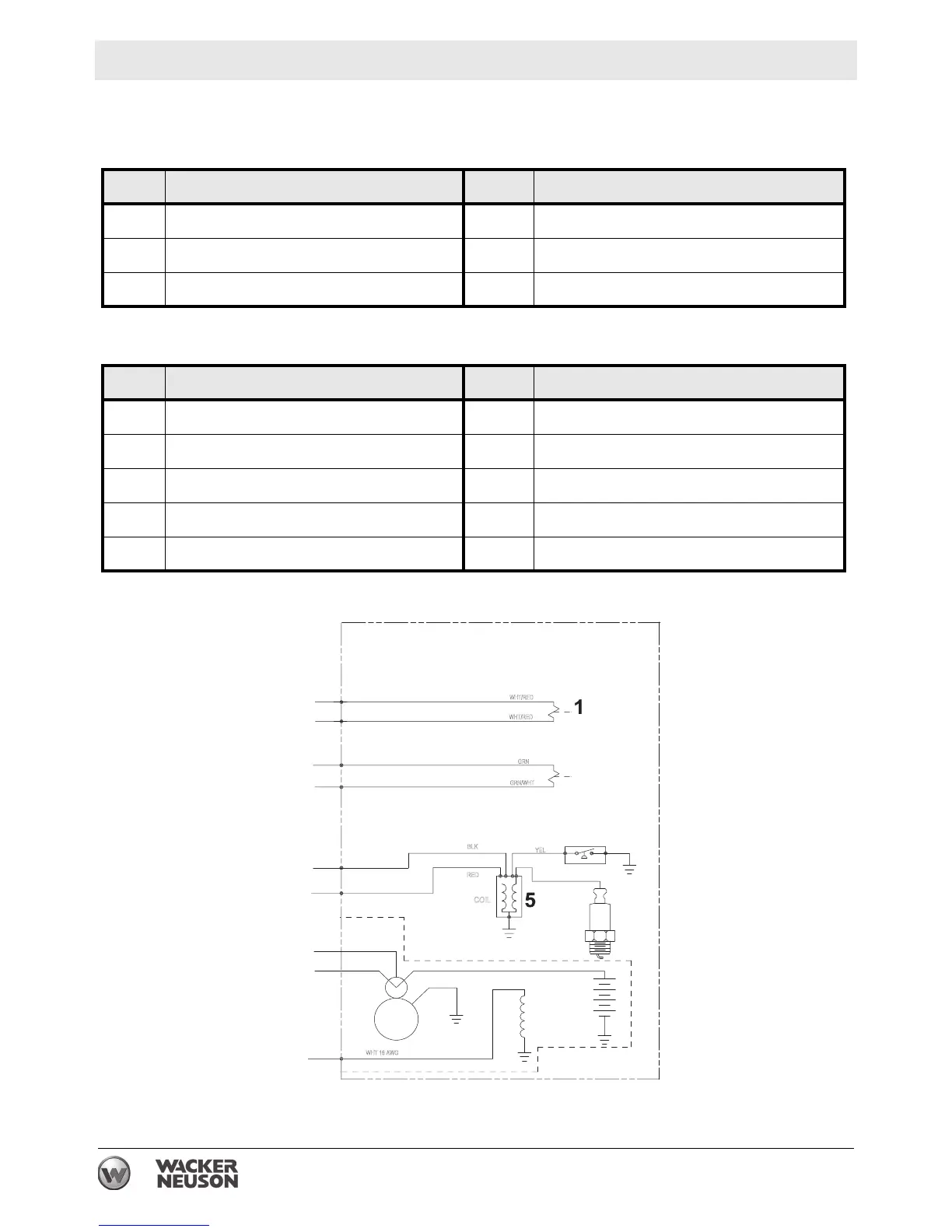

7.4 Engine Wiring
Ref. Description Ref. Description
A Generator D Honda Engine
B Control box
C Electric start engines (GPS)
Ref. Description Ref. Description
1 Idle solenoid 6 Solenoid (GPS only)
2 Fuel cut solenoid 7 Starter (GPS only)
3 Oil level sender 8 Charging coil (GPS only)
4 Spark plug 9 Battery (GPS only)
5Coil
I
H
G
F
E
D
C
D
A
B
wc_gr008237
GRN
YEL
BLK
COIL
WHT/RED
GRN/WHT
WHT/RED
WHT 16 AWG
RED
1
3
4
6
7
8
9
2
