6.7 Engine Auto Idle Module (G 3.7A, G 5.6A and GS 5.6A Models)
See Graphic: wc_gr000943
The plunger positioning is accomplished by loosening the clamping
screws, and turning the threaded plunger. Turning the plunger
clockwise shortens the travel distance of the governor which increases
the speed and turning it counter-clockwise reduces the speed.
The module senses current draw. When no current demand is sensed,
a signal is sent to the module. The module then controls the throttle-
actuator. When the generator is not under load, the module
automatically reduces engine speed 7 seconds after all appliances or
tools attached to the generator have been turned off. The engine
automatically returns to full speed when a tool or appliance is turned
back on.

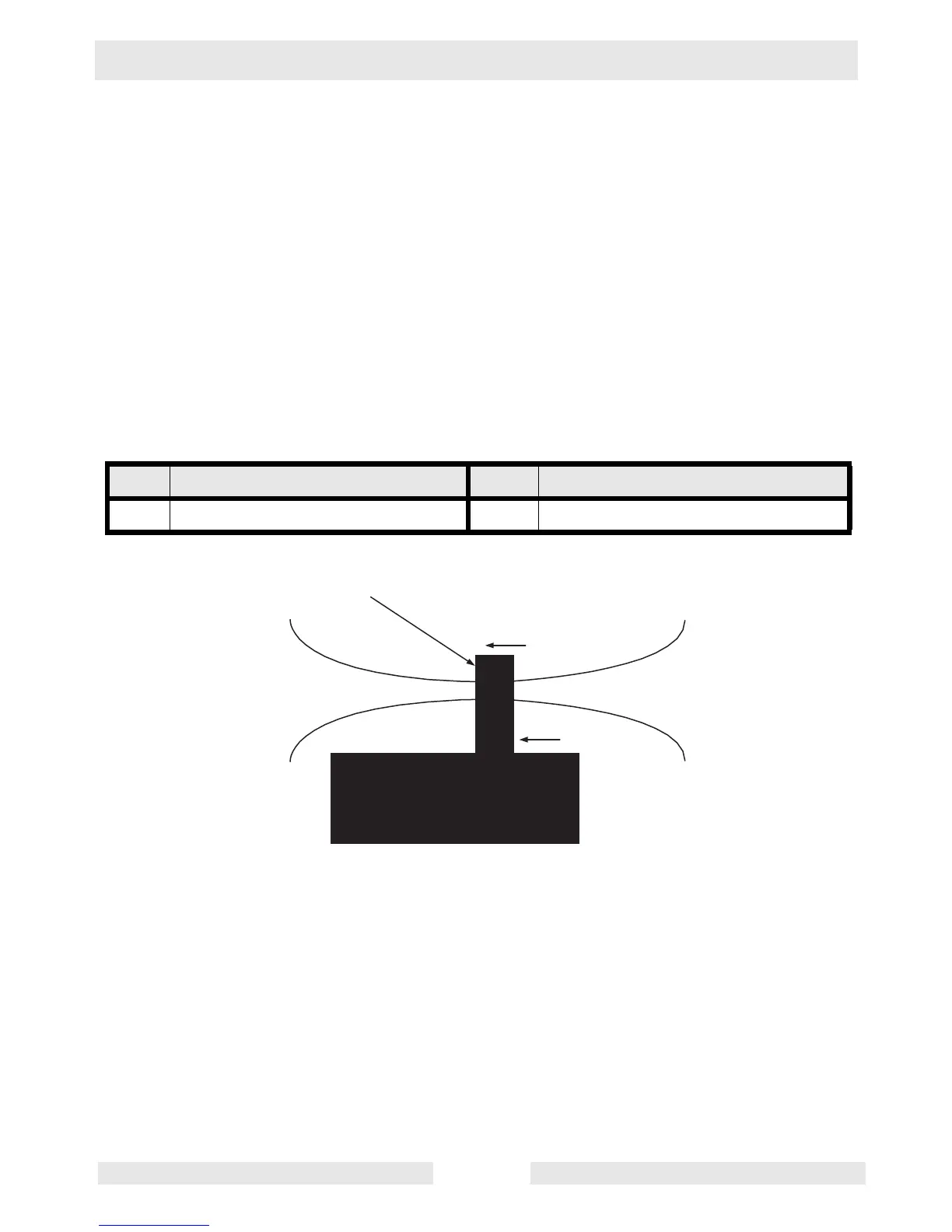

Ref. Description Ref. Description
a Induction Coil b Current Flow
w c _ g r 0 0 0 9 4 3
a
b
b
