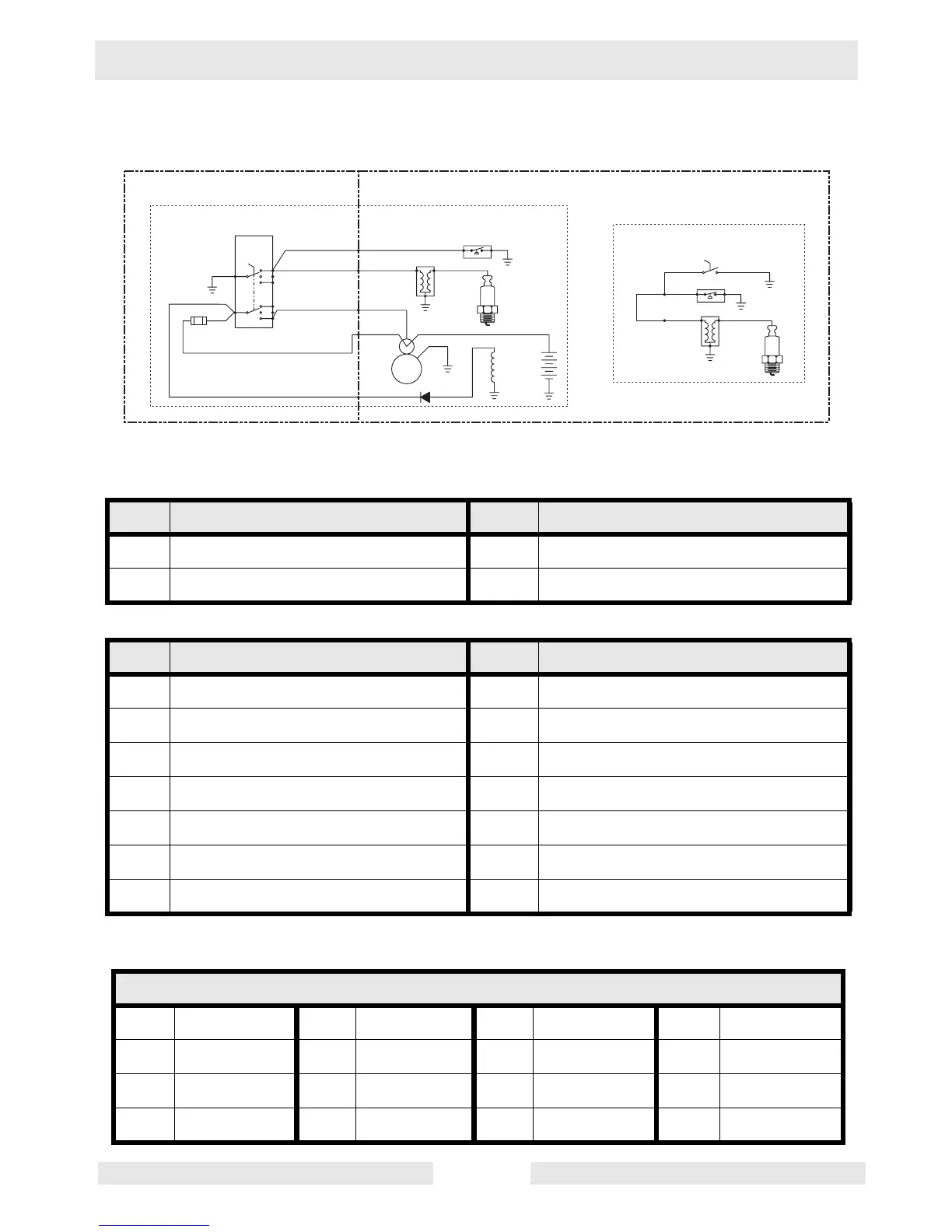

6.33 Engine Wiring Schematic (G 3.7A, G 5.6A, and GS 5.6A Models)
Ref. Description Ref. Description
A Control Box C Engine
B Electric Start Engines D Manual Start Engines
Ref. Description Ref. Description
1. Engine Crank Switch 5. Solenoid
1a. OFF 6. Starter
1b. RUN 7. Charging Coil
1c. START 8. Battery
2. Oil Level Switch 9. Ignition Switch
3. Coil 9a. ON
4. 15 Amp Fuse 9b. OFF
Wire Colors
B Black R Red Y Yellow Or Orange
G Green T Tan Br Brown Pr Purple
L Blue V Violet Cl Clear Sh Shield
P Pink W White Gr Gray LL Light Blue
