4.7 Wheel Kit (0162986)

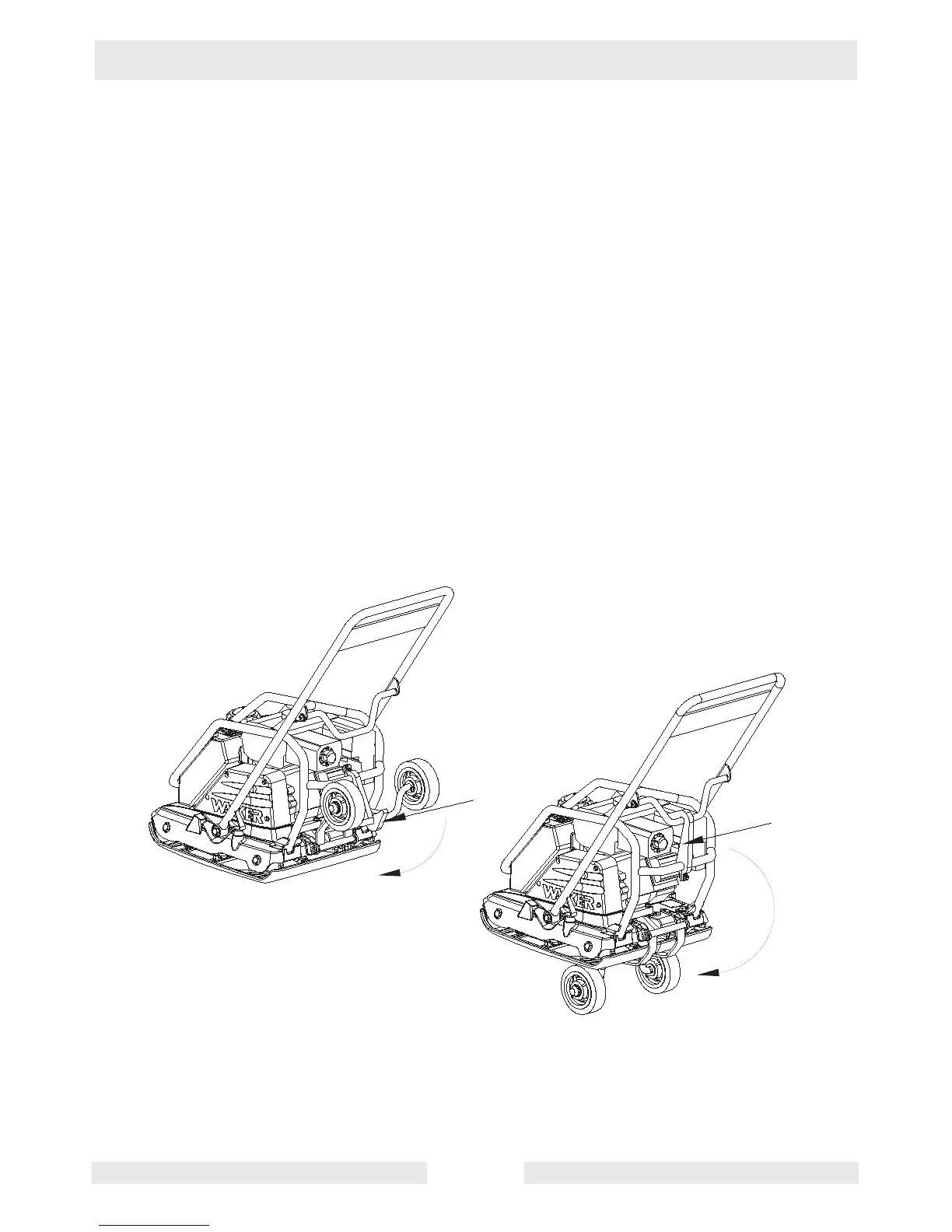

See Graphic: wc_gr002793
Wheel kit (Part No. 0162986) is a standard item on Item Number
0009545, 0009546, 0009547 and 0009548 only. Available as an
option on all other models.
4.7.1 Disengage wheel kit from holding latch (a) and position wheels in
“down” position.
4.7.2 Pivot holding latch and engage cross member brace into latch.
NOTICE: Latch prevents vibroplate from pivoting and falling back
towards the operator.
4.7.3 Push forward on guide handle to tip vibroplate forward and pivot
wheels into the “down” position.
4.7.4 Pull back on guide handle to tip vibroplate back up on wheels to
transport.
NOTICE: DO NOT lift the vibroplate by its guide handle. The vibroplate
can shift, causing it to fall.
