FRONT PANEL
All inverters described in this manual have an ON/OFF rocker switch, two LED
indicators, and multiple AC outlets. Actual locations of these components vary
by model. Multiple AC outlets enable multiple appliances to be operated at one
time.

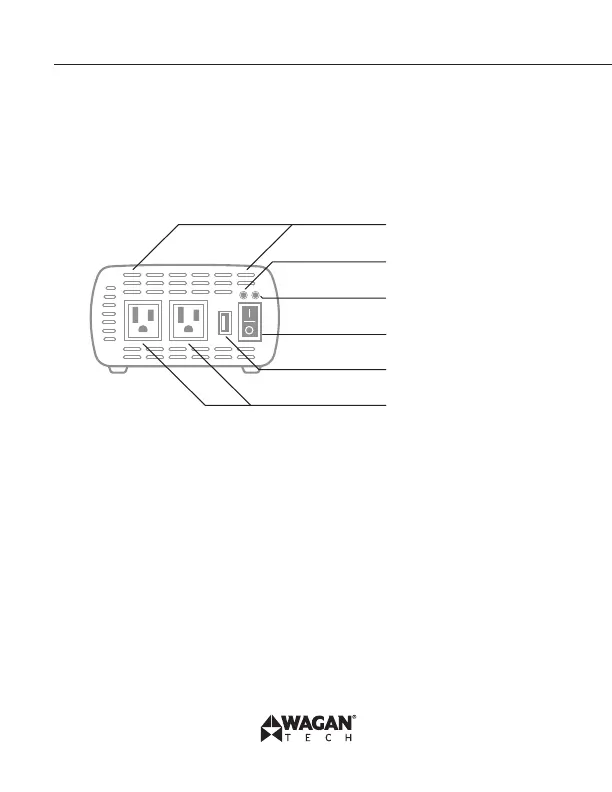

Fault Indicator (red)
Power On Indicator (green)
2x AC Outlets
ON/OFF Switch
USB Outlet
ON/OFF Switch – Controls operation of the inverter. The below indicators
operate when the switch is ON.
Green LED – When lit, indicates the inverter is on and operating normally. AC is
present at the outlets.
Red LED – When lit, indicates the inverter has shut down for any of the following
reasons:
1. Low DC battery voltage – less than 10.5V
2. Preceded by an audible alarm. Charge the battery as soon as possible.
3. High battery voltage – greater than 15V
4. Over temperature − Shut off the inverter and let it cool before restarting.
5. Overload – reduce the AC appliance load.
To Next Page
