ASSEMBLY
NEVER point the spray gun at any part of the
body.
Make sure the power cord is unplugged.

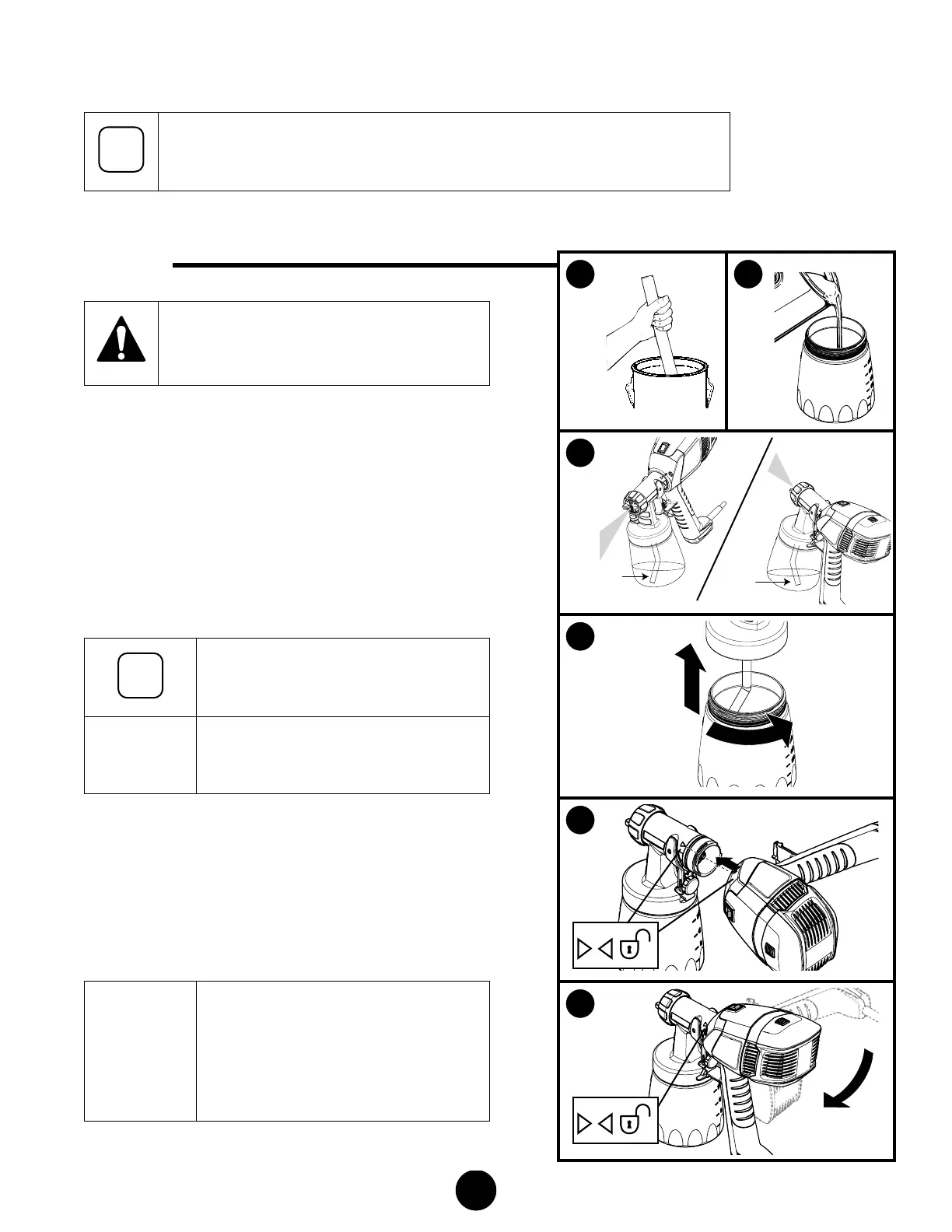

1. Stir the spraying material thoroughly.
2. Fill the container. Use a strainer to remove any particles.
(see Thinning the Material, previous page, if thinning is
required).
3. Align the pickup tube -
A If spraying downward, the angled end of the pickup tube
should be pointing toward the front of the nozzle.
B If spraying upward, the angled end of the pickup tube
should be pointing toward the rear of the nozzle.
Make sure the pickup tube is inserted as
far as it will go to ensure a tight t.
IMPORTANT: Never tip the sprayer at more than a 45°
angle. Material could get into the turbine
and damage the sprayer.
4. Carefully screw the cup back onto the nozzle assembly.
Tighten rmly.
5. Align the arrow on the nozzle with the “unlock” symbol on
the spray gun handle.
6. Insert and twist the nozzle into the handle toward the
“lock” symbol on the handle. The tab below the trigger will
lock the two pieces into place.
IMPORTANT: If the unit has already been used, make
sure the nozzle seal is in place (see page
10).
Do not pull trigger at any time if the
turbine is not running. Paint will drip
from the nozzle.
For a video showing how to set up the Control Spray, visit:
www.wagnerspraytech.com/controlspray250
