WAGNER GA 4000ACIC-R Operating Manual

18
GA 4000ACIC
FF
E
M8
A
D
C
B
B_03486
M5
Ø 3.2
B_3487
--
CA
AA
mm inch
A 129 5.08
B 47 1.85
C 77.5 3.05
D 55 2.17
E 18±0.1 0.71±0.004
F 18±0.1 0.71±0.004
OPERATING MANUAL
EDITION 06/ 2011 PART NO. DOC2312956

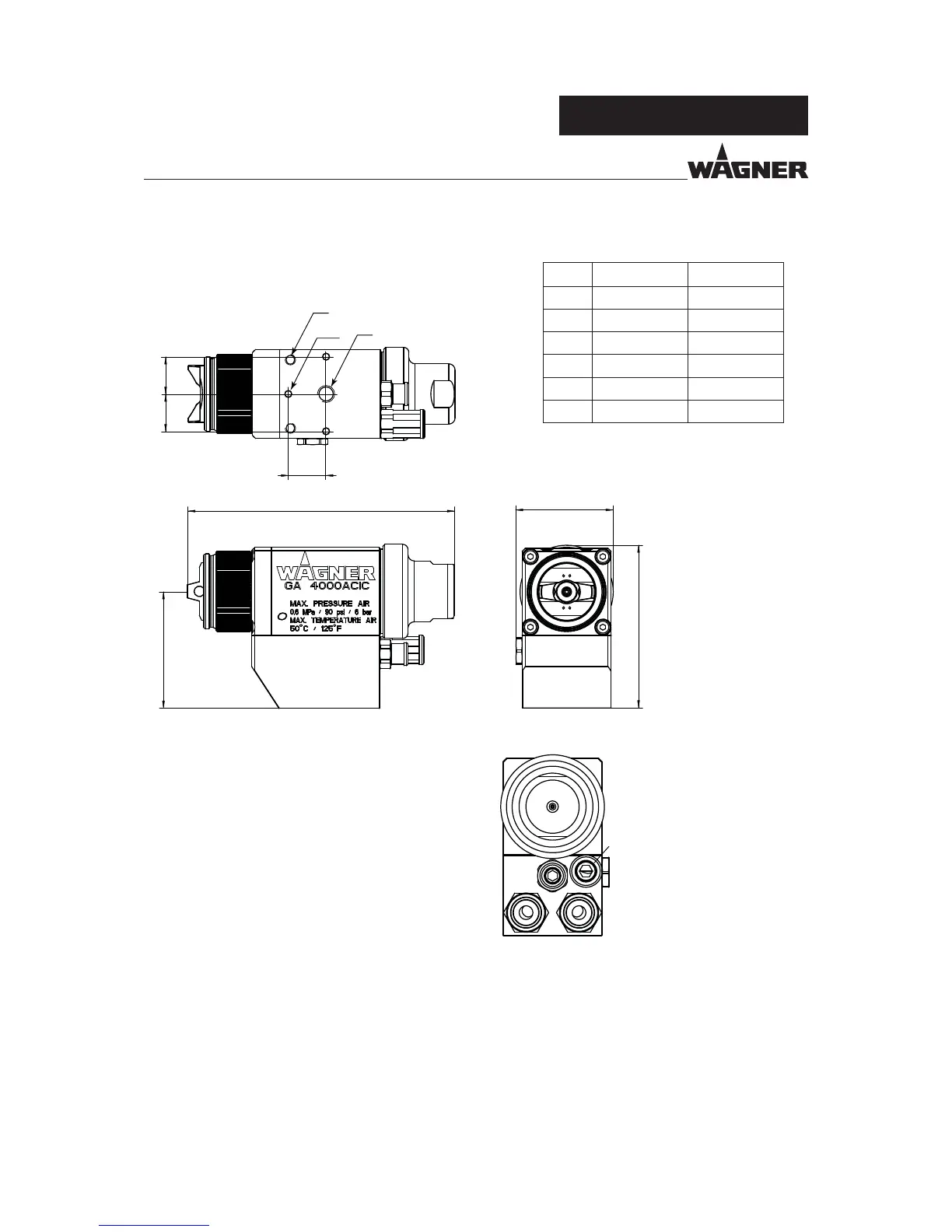

4.3.2 MEASUREMENTS AND CONNECTIONS
Connection data:
Ground plate to GA 4000ACIC R
CA = G1/8“ -> 6 mm; 0.24 inch (control air)
AA = G1/8“ -> 8 mm; 0.31 inch (atomizing air)
M = G1/4“ -> NPS1/4“ (material)
