WAGNER GA 4000ACIC-R User Manual

37
VERSION 05/2018
ORDER NUMBER DOC 2312956
GA 4000ACIC

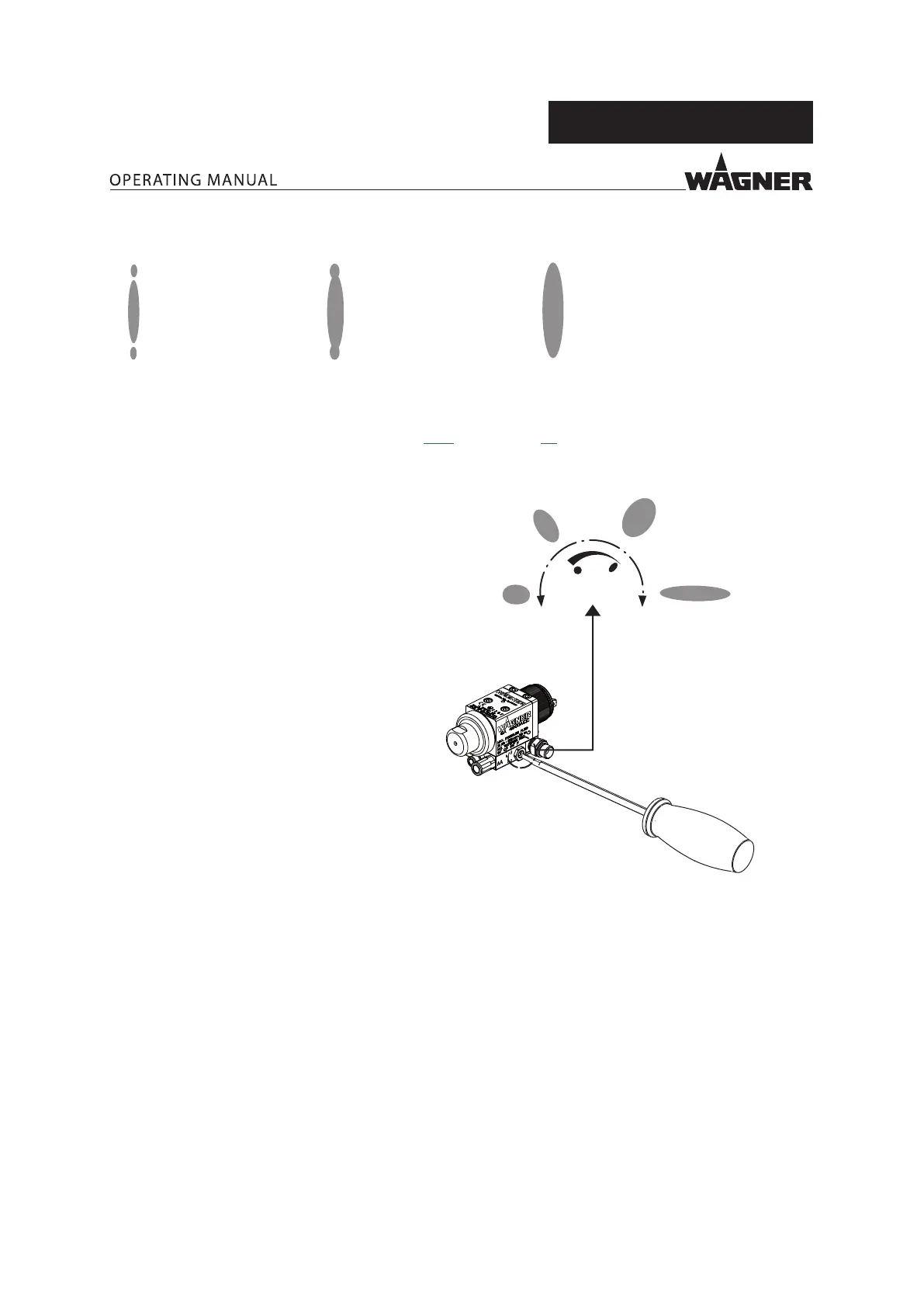

Spray pattern shapes
B_00071
No shaping air/
atomizing air
Too little shaping
air/atomizing air
Correct amount
of shaping air/
atomizing air
Note:
The ow rate can be changed by:
– changing the product pressure or
– Using a dierent at jet nozzle (see Chapter 7.2.4 and Chapter 13).
7.2.2 ADJUSTING THE SPRAY PATTERN
The spray pattern can be adjusted to suit the
object being sprayed using the shaping air
regulator. The illustration shows the inuence of
the shaping air regulator on the spray pattern.
Other nozzle sizes can be mainly used to obtain
larger or smaller spray patterns.
B_03053
Shaping air
throttle fully
open.
Shaping air
throttle fully
closed.
7.2.3 PRESSURE RELIEF/WORK INTERRUPTION
The pressure must always be relieved:
– when the spraying tasks are nished,
– before carrying out maintenance work on the spraying system,
– before carrying out cleaning tasks on the spraying system,
– before moving the spraying system to another location,
– if something must be checked on the spraying system,
– if the nozzle or the lter is removed from the spray gun.
The components for pressure relief on a CE-compliant spray system include:
– Air cock with pressure relief hole mounted between compressed air source and pneumatic pump.
– Product pressure relief valve mounted between pump and spray gun.
