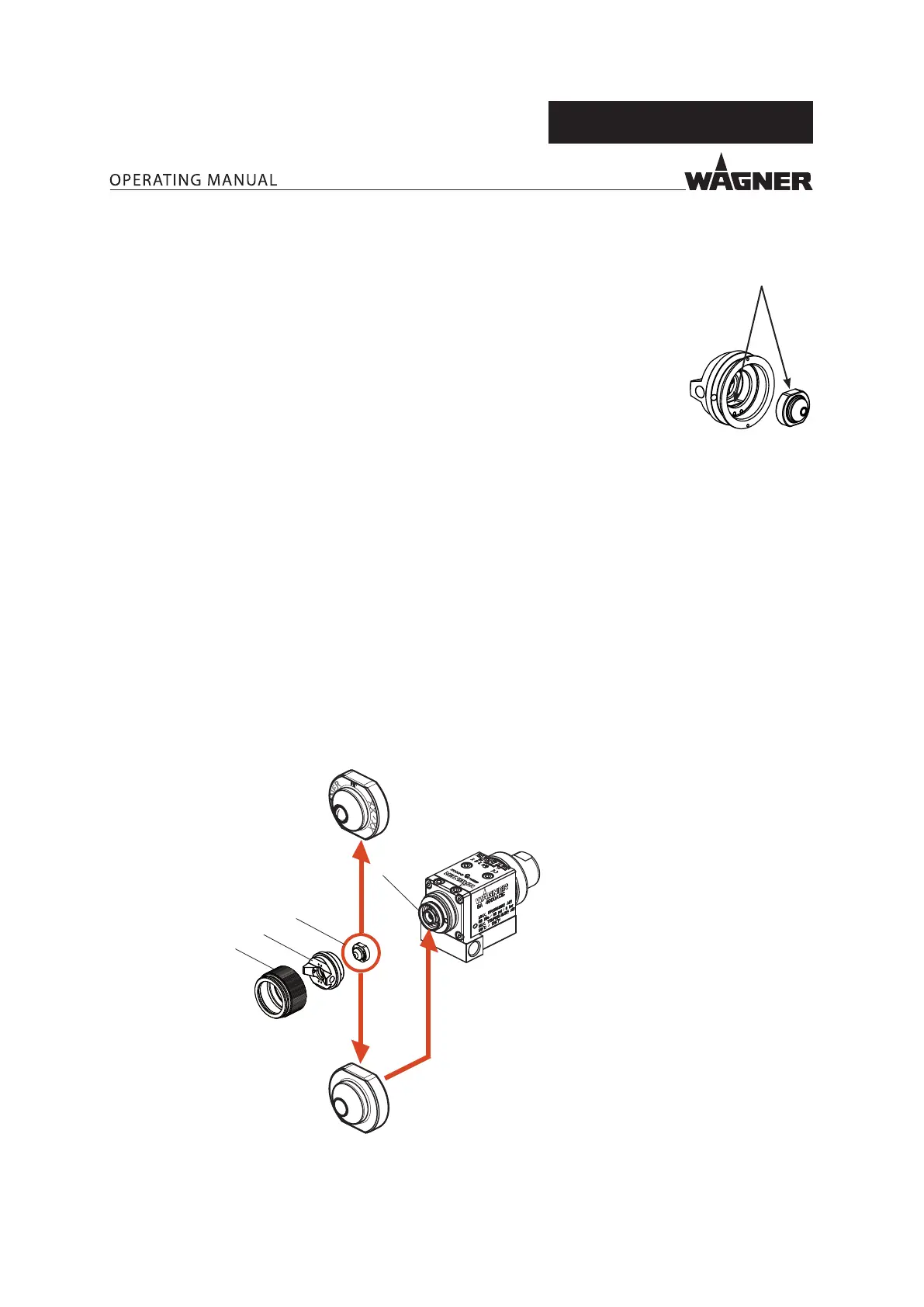

7.2.6 ELIMINATING NOZZLE CLOGGING
1. Relieve the pressure of gun and device.
B_03071
X
2. Secure gun (remove the control air hose).
3. Unscrew union nut (A).
4. Remove air cap (B).
5. Push AirCoat nozzle (C) out of air cap (B) by hand and place on nozzle seal (D) the
other way round with the nozzle tip towards the rear.
6. Fit air cap (B) on nozzle (C).
Note the attened parts (X) on the nozzle and in the air cap.
7. Screw on the union nut (A) over the air cap (B) onto the spray gun and tighten by
hand.
8. Switch the product pressure back on.
9. Spray (connect control air hose).
10. When the blockage has been ushed out, switch o the spray gun.
11. Relieve the pressure of gun and device.
12. Secure gun (remove the control air hose).
13. Unscrew union nut (A).
14. Remove air cap (B) and push AirCoat nozzle (C) out by hand.
Clean nozzle and nozzle seal and ret nozzle in spraying position on nozzle seal (D).
15. Fit air cap (B) on nozzle (C).
Note the attened parts (X) on the nozzle and in the air cap.
16. Screw on the union nut (A) over the air cap (B) onto the spray gun and tighten by
hand.
17. Connect control air.
Switch the product pressure and the air pressure back on.
Nozzle in spray position
Nozzle in cleaning position
B_06655
A
B
C
D
