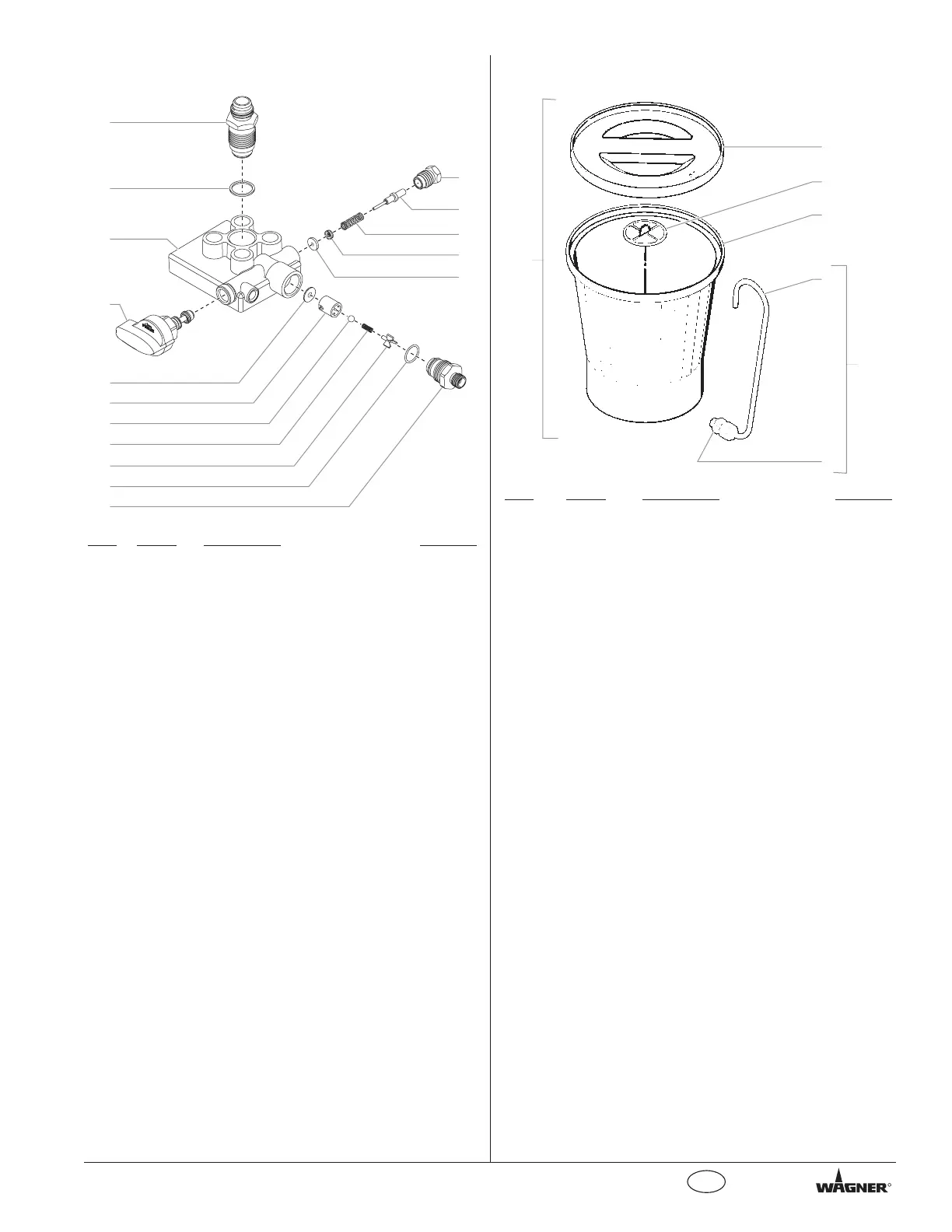

Pump Head Assembly

Item Part # Description Quantity

1 0278242 Inlet valve assembly (includes item 2)........1

2 0089482 Sealing washer, nylon.................................1

3 0278334 Paint pump..................................................1

4 0555901 PRIME/SPRAY valve assembly..................1

5 0278362 Outlet seal...................................................1

6 0278241 Ball seat......................................................1

7 0093635 Ball..............................................................1

8 0047485 Outlet spring ...............................................1

9 0278361 Ball guide....................................................1

10 9871114 O-ring..........................................................1

11 0278335 Outlet fitting.................................................1

12 0278337 Pusher body................................................1

13 0278250 Pusher stem assembly ...............................1

14 0278368 Pusher spring..............................................1

15 0156646 Seal.............................................................1

16 0278340 Pusher washer............................................1

Hopper Assembly

Item Part # Description Quantity

1 0279591 Cover, hopper .......................................1

2 0089917 Filter screen, fine (shown) ....................1

0088871 Filter screen, coarse

3 0090283 Hopper ..................................................1

4 0093865 Return tube...........................................1

5 0090617 Fitting ....................................................1

6 0090560 Return tube assembly

(includes items 4 and 5) .......................1

7 0288144 Hopper complete

(includes items 1 – 6) ...........................1
