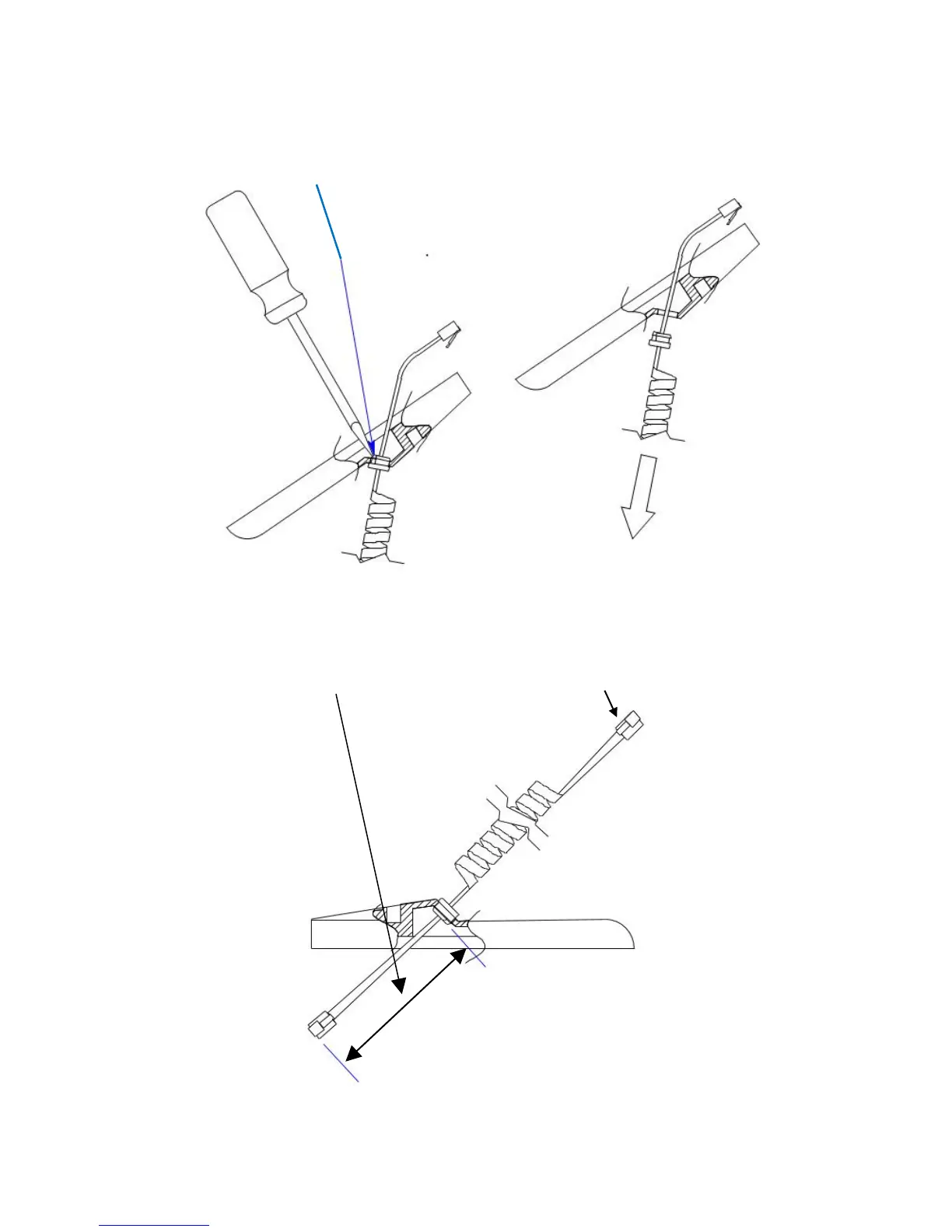

Step 3. Remove the old cord from the handle half-shell.
Rotate strain relief so latch is accessible then depress with screwdriver.
Step 4. Install replacement cord.
Reuse the strain relief from old cord and insert until latch clicks into hole.
Extend cord 3.75 inches into handle half with offset connector on outside.
