COIL CORD REPLACEMENT
IF THE COIL CORD BECOMES DAMAGED, IT CAN BE REPLACED AS DESCRIBED
BELOW
:

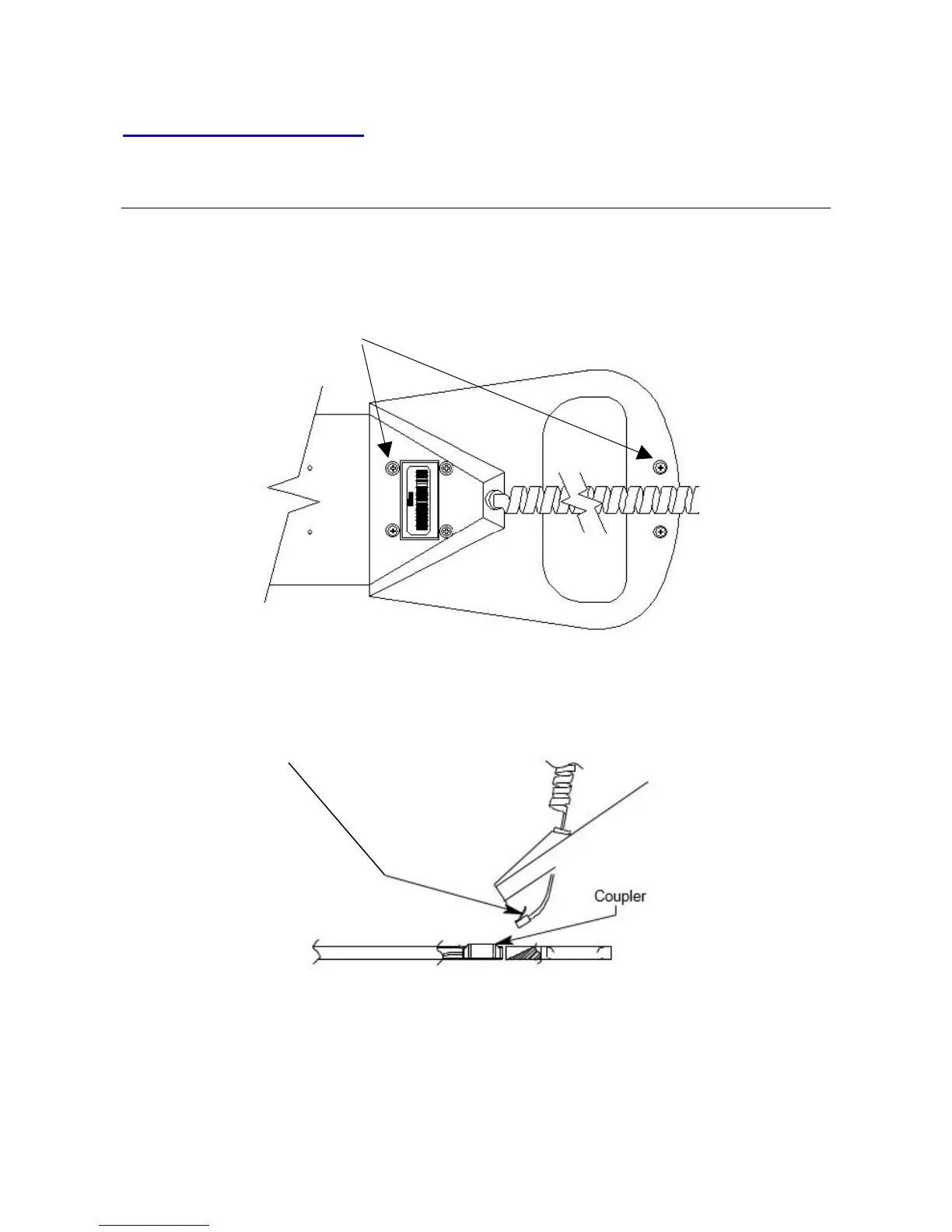

Step 1. Lay the L722 Stack Probe on a flat work space with the coil cord facing
upward. Remove the 6 screw fastening the handle half-shells together.
Separate the two halves of the handle.
Remove 6 Handle Screws
Step 2. Disconnect the old cord from the coupler.
Depress lever and extract plug from coupler.
