NOTE: Shipping costs for a complete Stack Probe is more than twice the cost to ship
a Probe Head due to the “oversized” length shippers charge.
If you would like to expedite the Probe repair, a replacement Probe Head can be
ordered and shipped to you directly by Wagner, see Replacement Parts section for
Part Numbers which may be purchased from the factory or through your distributor.
Head removal is described below.

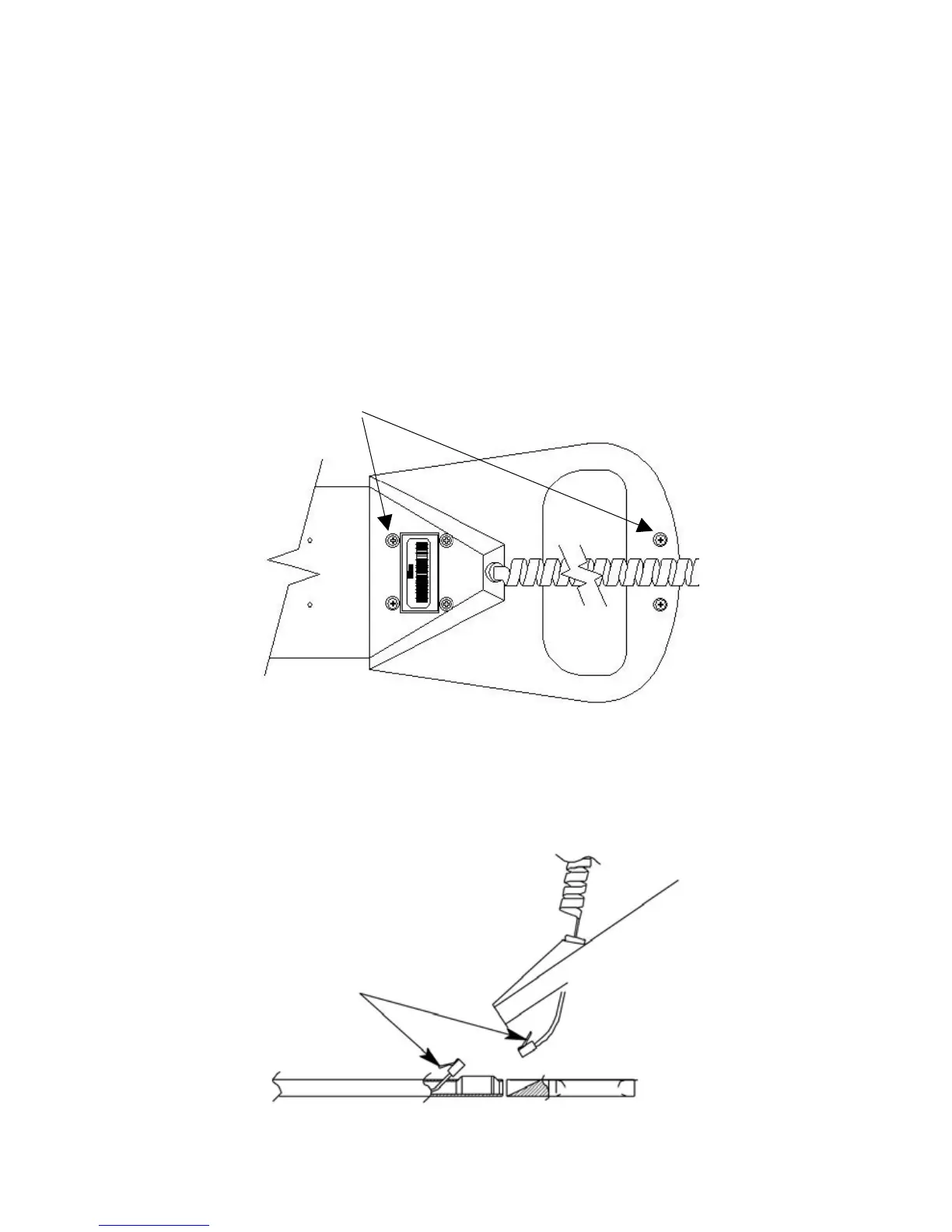

Step 1. Lay the L722 Stack Probe on a flat work space with the coil cord facing
upward. Remove the 6 screw fastening the handle half-shells together.
Separate the two halves of the handle.
Remove 6 Handle Screws
Step 2. Disconnect the old cord from the coupler.
Depress levers and extract plugs from coupler.
