WAGNER SF23 PRO - Spare Parts List High-Pressure Filter; Spare Parts List Hopper

62
Super Finish 23 Pro
GB
SPARE PARTS AND ACCESSORIES
ITEM ORDER NO. DESIGNATION
1 0097 121 High-pressure lter HF- 01 compl.
2 0097 301 Filter block
3 0097 302 Filter housing
4 0097 303 Hollow screw
5 0097 304 Seal ring
6 9970 110 Seal ring
7 9974 027 O-ring 30x2 (PTFE)
8 9971 401 O-ring 16x2 (PTFE)
9 0508 749 Bearing spring
10 0508 603 Bearing ring
11
0508 748
0508 450
0508 449
Filter insert 60 meshes
Optional:
Filter insert 100 meshes
Filter insert 30 meshes
12 9994 245 Pressure spring
11.3 SPARE PARTS LIST HIGHPRESSURE FILTER

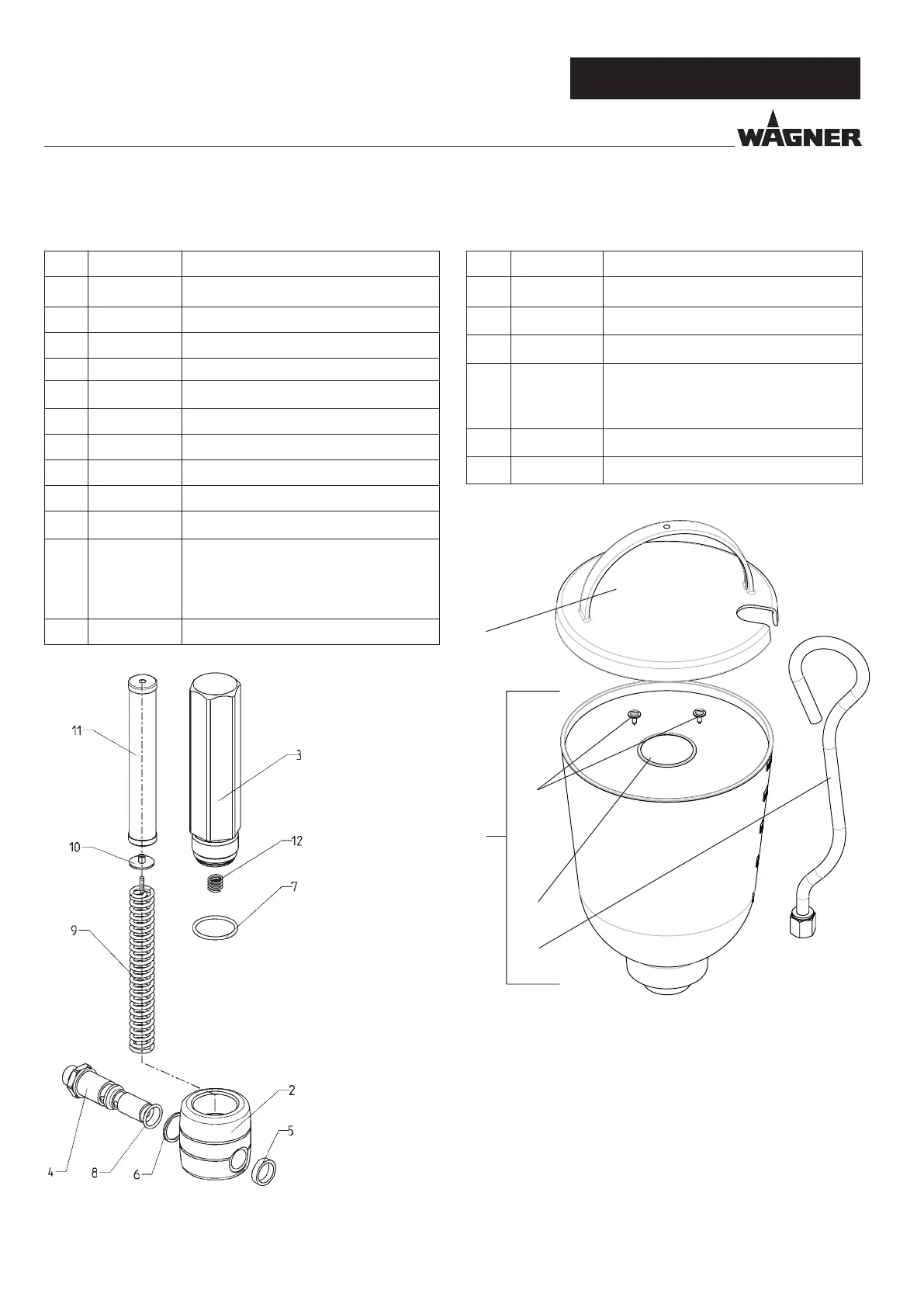

Spare parts diagram high-pressure lter
ITEM ORDERNO DESIGNATION
1 0341 265 Hopper 5l, assy. (pos. 2-6)
2 0340 901 Cover
3 9902 306 Sheet metal screw 3,9x13 (2)
4
0037 607
0003 756
Filter disk, mesh width 0,8 mm
Optional:
Filter disk, mesh width 0,4 mm
5 0340 904 Hopper
6 0340 908 Return pipe
11.4 SPARE PARTS LIST HOPPER
Spare parts diagram hopper
4
3
2
5
6
