GB
28
W 570 Flexio

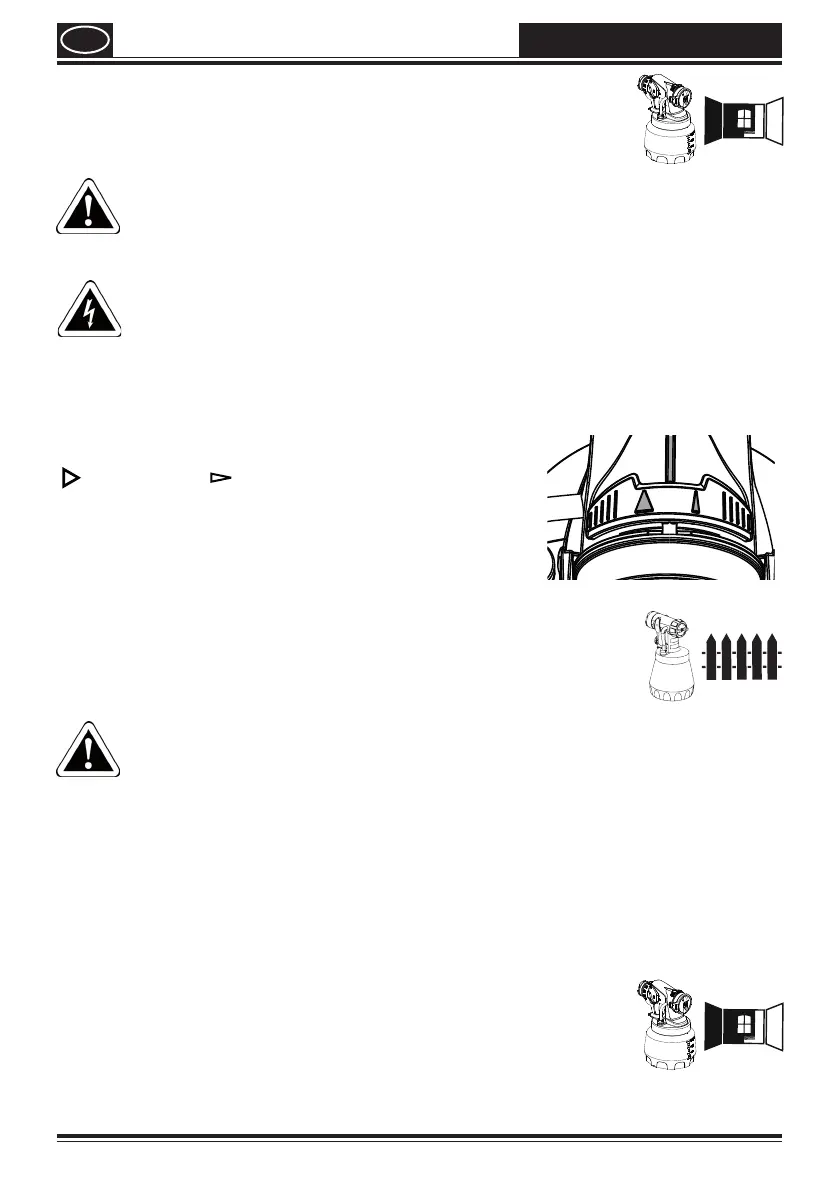

11. Selecting the Spray Setting
(Wall Extra I-Spray spray attachment)
WARNING! Danger of injury! Never pull the trigger guard while adjusting
the air cap.
2 dierent spray jet shapes can be set by turning the air cap (g. 5, 1)
Tighten the union nut (Fig. 5, 2) fully so that no paint is able to penetrate
the device. Check regularly whether the union nut has worked loose during
operation.
Fig. 6 A = vertical at jet
for horizontal surfaces
Fig. 6 B = horizontal at jet
for vertical surfaces
Use the red adjustment lever to also switch between a wide
( ) and a narrow ( ) spray jet.
12. Selecting the Spray Setting
(Standard spray attachment)
WARNING! Danger of injury! Never pull the trigger guard while adjusting
the air cap.
With the union nut (g. 7, 1) slightly unscrewed, turn the air cap (2) to the desired
spraysetting position (arrow). Then tighten the union nut.
Fig. 8 A = vertical at jet
for horizontal surfaces
Fig. 8 B = horizontal at jet
for vertical surfaces
Fig. 8 C = circular jet
for corners, edges and hard-to-reach surfaces
13. Adjusting the Material Volume
(Wall Extra I-Spray spray attachment)
The volume of material can be set by turning the material volume control (Fig. 9, 1) in
steps from 1 (minimum) to 12 (maximum).
