16
Bench Mount (B) Models
1. Check that all the feet are fitted and adjust to make the hob steady and level.
Optional Accessories (Refer to Replacement Parts List)
• Plinth Kit. For installation details, refer to the instructions supplied with each kit.

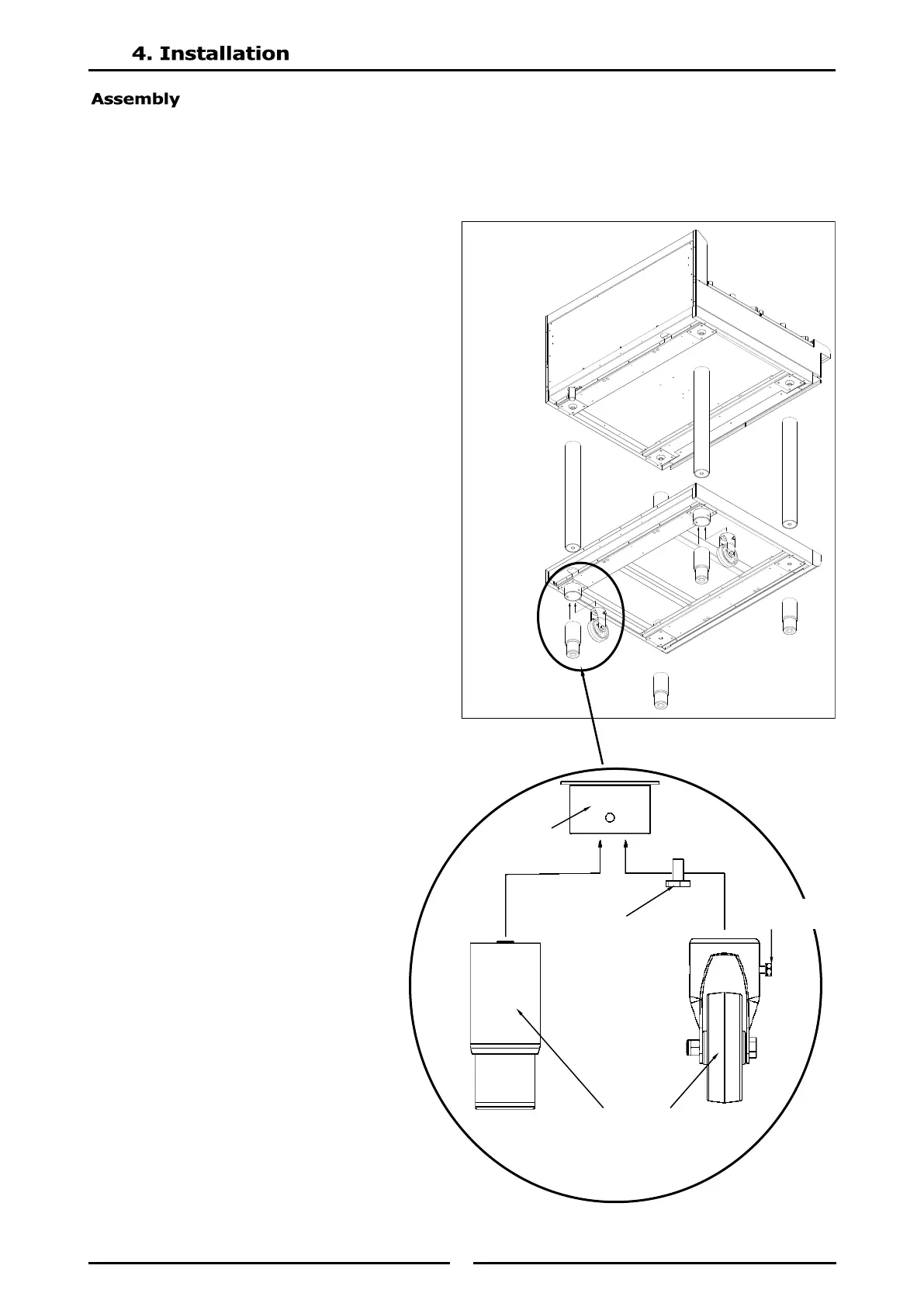

Leg Stand (LS) Models Only
1. Lower the appliance onto its rear face.
2. Attach the four Cooktop legs to the leg
mount points on the underside of the
Cooktop unit.
3. Secure each leg hand tight.
4. Align the 4 round holes in the corners of
the base tray with the 4 Cooktop legs
already fitted. (Ensure that the base
tray is orientated with the sloping edge
of the base tray facing the front of the
appliance).
5. Slot the base tray onto the 4 Cooktop
legs and push fully home.
6. Secure the base tray to the front
cooktop legs by screwing the adjustable
feet supplied, into the base of the front
cooktop legs. Secure each adjustable
foot, hand tight.
7. Fit the rear rollers to the rear leg ring
plates and secure using the locating
bolts supplied and tighten bolts using a
10mm spanner.
8. Lift the Cooktop back onto its legs.
NOTE: This appliance is fitted with adjustable
feet / rear rollers to enable the appliance
to be positioned securely and level. This
should be carried out on completion of
the electrical connection. Refer to the
‘Electrical Connection’ section.
All Other Models
All other models come pre-assembled.
Adjustable
Foot
Rear
Roller
Rear Leg
Securing Bolt
Roller
Locating Bolt
Rear Leg
Housing
