Waldorf IN8200E INL8200E INB8200E INLB8200E IN8400E INL8400E INB8400E INLB8400E User Manual

34
L1 N
PE
L1 L2 L3 PE
3.5kW SINGLE PHASE SINGLE COIL / WOK
5.0kW 3 PHASE SINGLE COIL / WOK
CUT POWER CABLE TO 1000mm LONG
REMOVE 100mm OF OUTER SHEATH
STRIP 15mm OF INSULATION FROM EACH WIRE
15
100
1000
15
100
1000
CUT POWER CABLE TO 1000mm LONG
REMOVE 100mm OF OUTER SHEATH
STRIP 15mm OF INSULATION FROM EACH WIRE
EARTH STUD
EARTH STUD
FIT RJ45 CABLE (SUPPLIED WITH INDUCTION)
TO CONTROL AND GENERATOR
FIT RJ45 CABLE (SUPPLIED WITH INDUCTION)
TO CONTROL AND GENERATOR

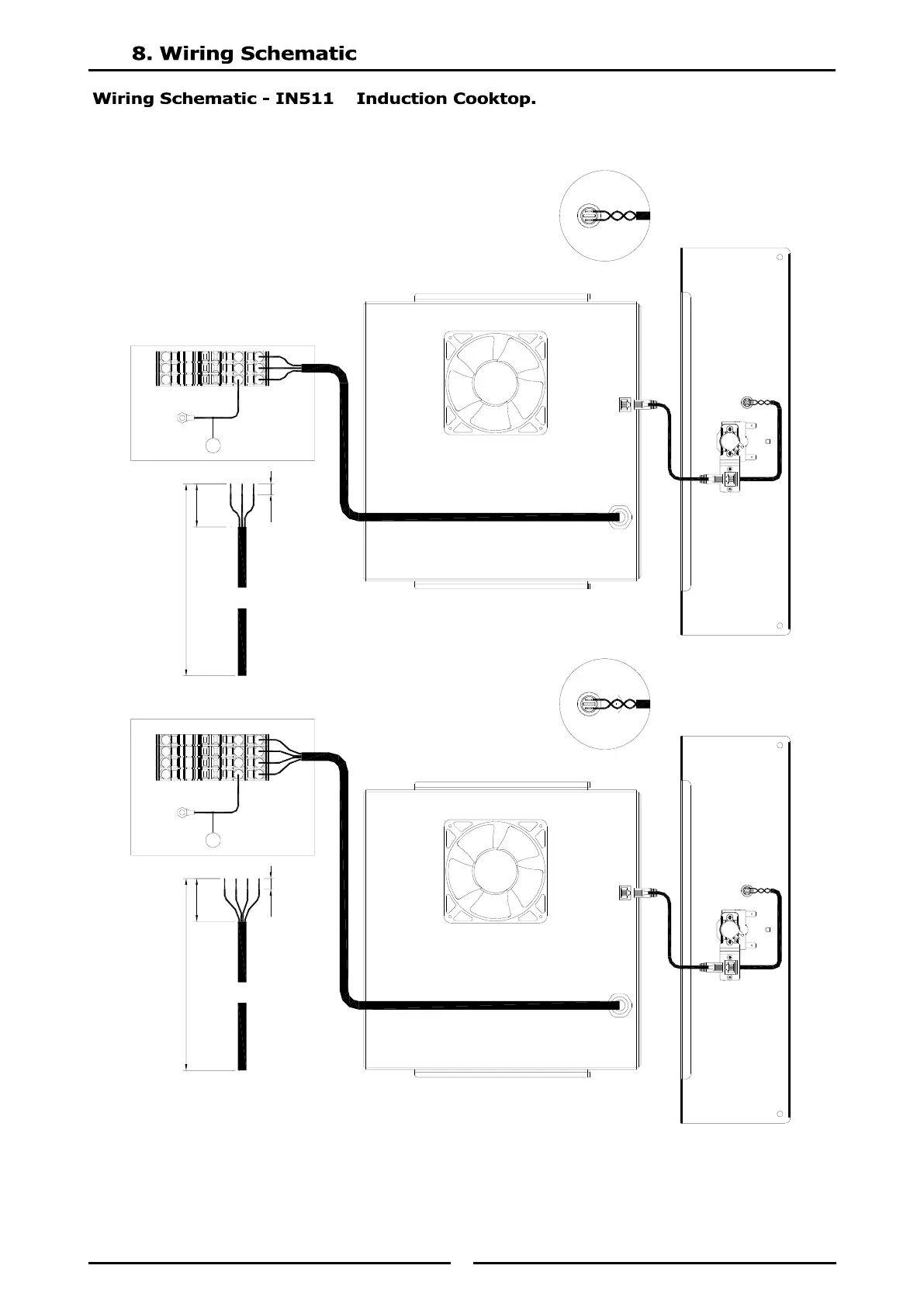

CONNECT CONTROL WIRES
(GRAY / VIOLET) TO LED (1)
CONNECT CONTROL WIRES
(GRAY / VIOLET) TO LED (1)
1
1
248431 2.5mm² GRAY x 1 248432 2.5mm² BLUE x 1 248433 2.5mm² PE x 1 248434 2.5mm² END PLATE 248449 MARKER L1 248452 MARKER N 248453 MARKER PE
248439 10mm² GRAY x 3 248441 10mm² PE x 1 248442 10mm² END PLATE 248449 MARKER L1 248450 MARKER L2 248451 MARKER L3 248453 MARKER PE
