Walker Edison BKMCPLAT - Página 8

P
P
P
P
Q
Q
P
20mm
30mm

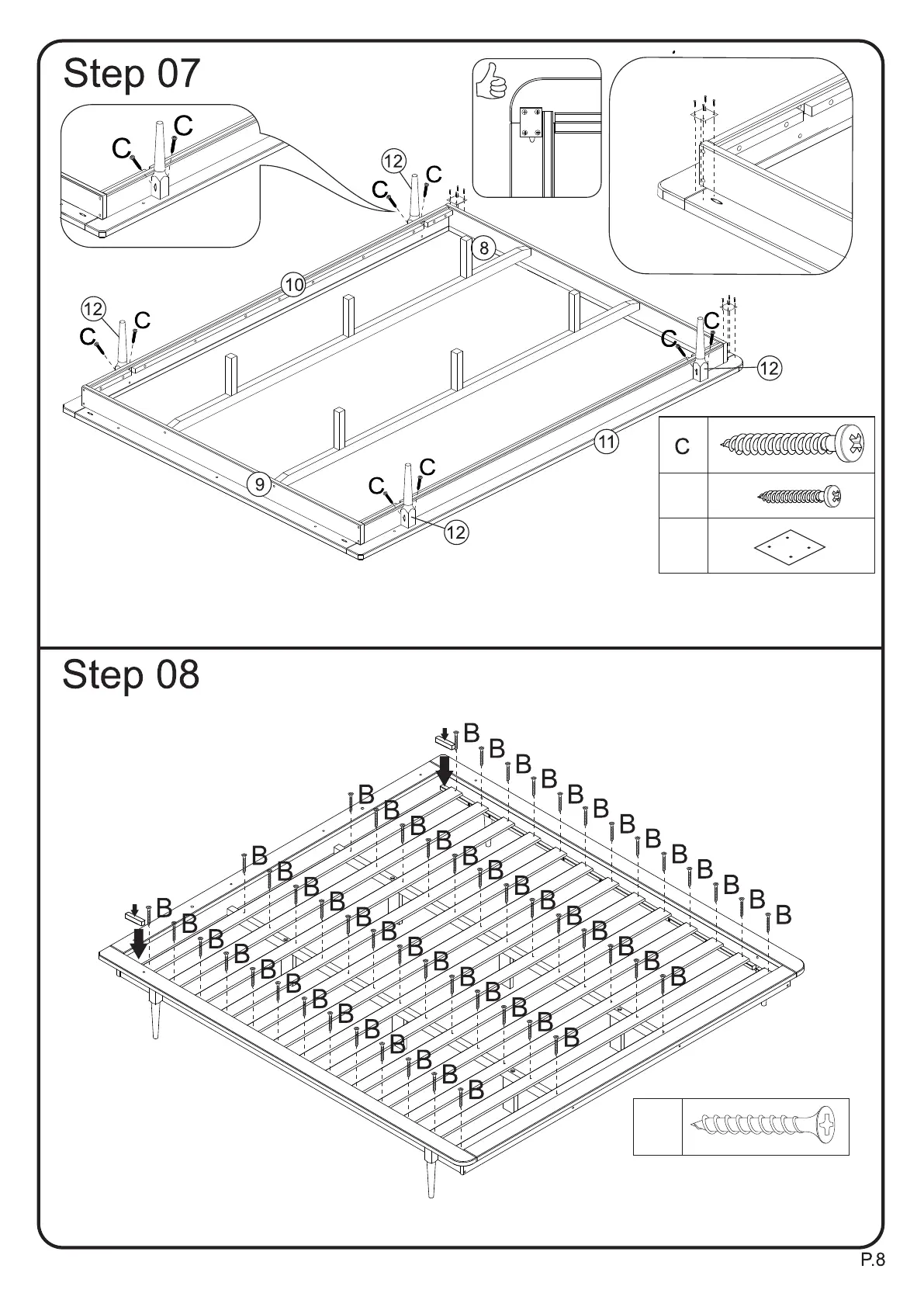

Secure feet to frame using screw(C).
Attach the metal connector plate (Q) to the 2 corners of the bed with screws (P). Take care to
aligne the plate over the sean of the two parts, as shown in the drawing, before seguring in place.
Start slats assemble
with slat spacer (L)
30mm
B
Secure slat (11) Using Screw (B) and slat spacer (L)
L
L
