M
Ø4,0*40mm
02
N
P
01
01
O
Ø4*16mm
01
L
01

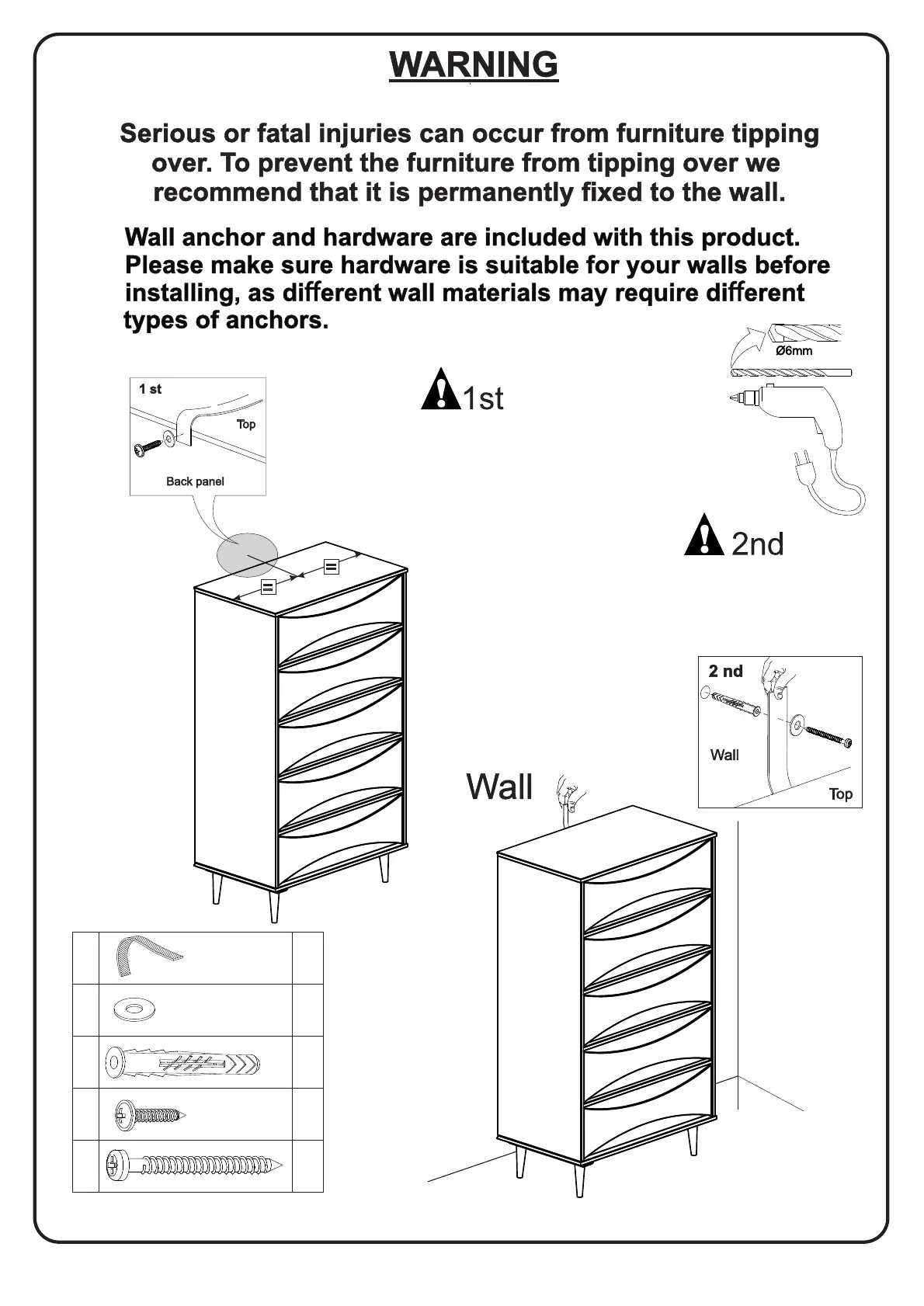

Attach part (L) with screw (O) and
panel using Phillips head screwdriver.
With drilling machine make one hole
Secure part (K) with screw (O) and washer (L)
in the wall using a Phillips head screwdriver.
M
O
L
M
P
N
L
washer (M), in the frame of unit top
Name and address information for the manufacturer responsible for the anti-tip hardware and date
of production can be found on the label on the back of the furniture.
Step 16
P.12
in the wall, insert part (M) in the hole.
