Walker Edison TW72DSW - Page 6

04
A
ø1/4*110mm
01
I
Hex key

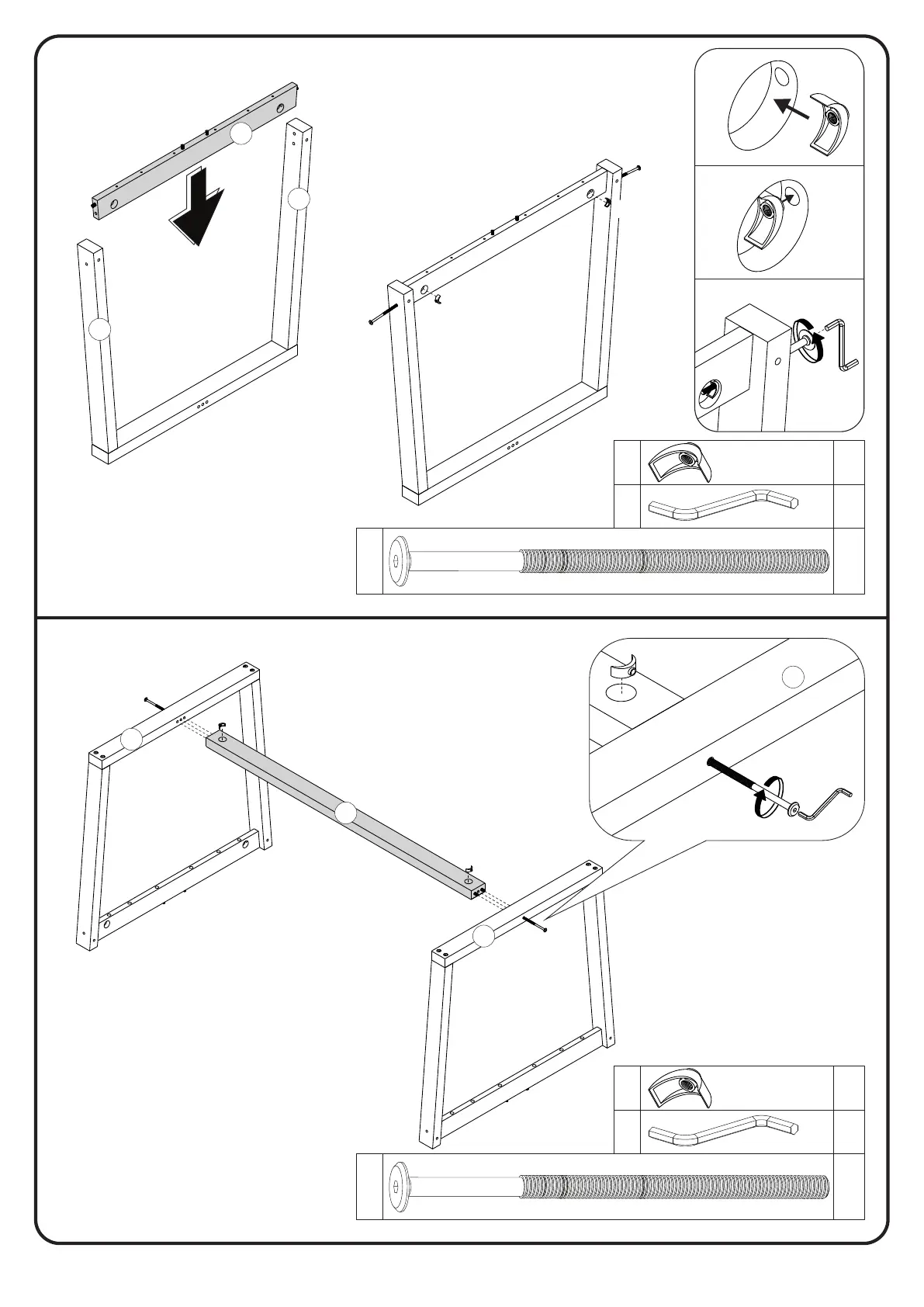

Step 4
Step 3
2x
Attach part (3) to parts (1) using
bolt (A) with barrel nut (G) and hex
key (I). Complete this step twice.
04
G
Barrel nut
1
1
3
A
A
G
G
A
G
I
1st
2nd
3rd
G
02
A
ø1/4*110mm
01
I
Hex key
02
G
Barrel nut
Attach part (4) to parts (2) using
bolt (A) with barrel nut (G) and
hex key (I).
P.6
2
2
4
A
G
G
A
G
A
I
2
