Walker Edison TW72DSW - Page 7

02
D
ø7*50mm
01
I
Hex key
Step 6
Step 5
D
04
A
ø1/4*110mm
01
I
Hex key
04
H
Plastic foot
P.7

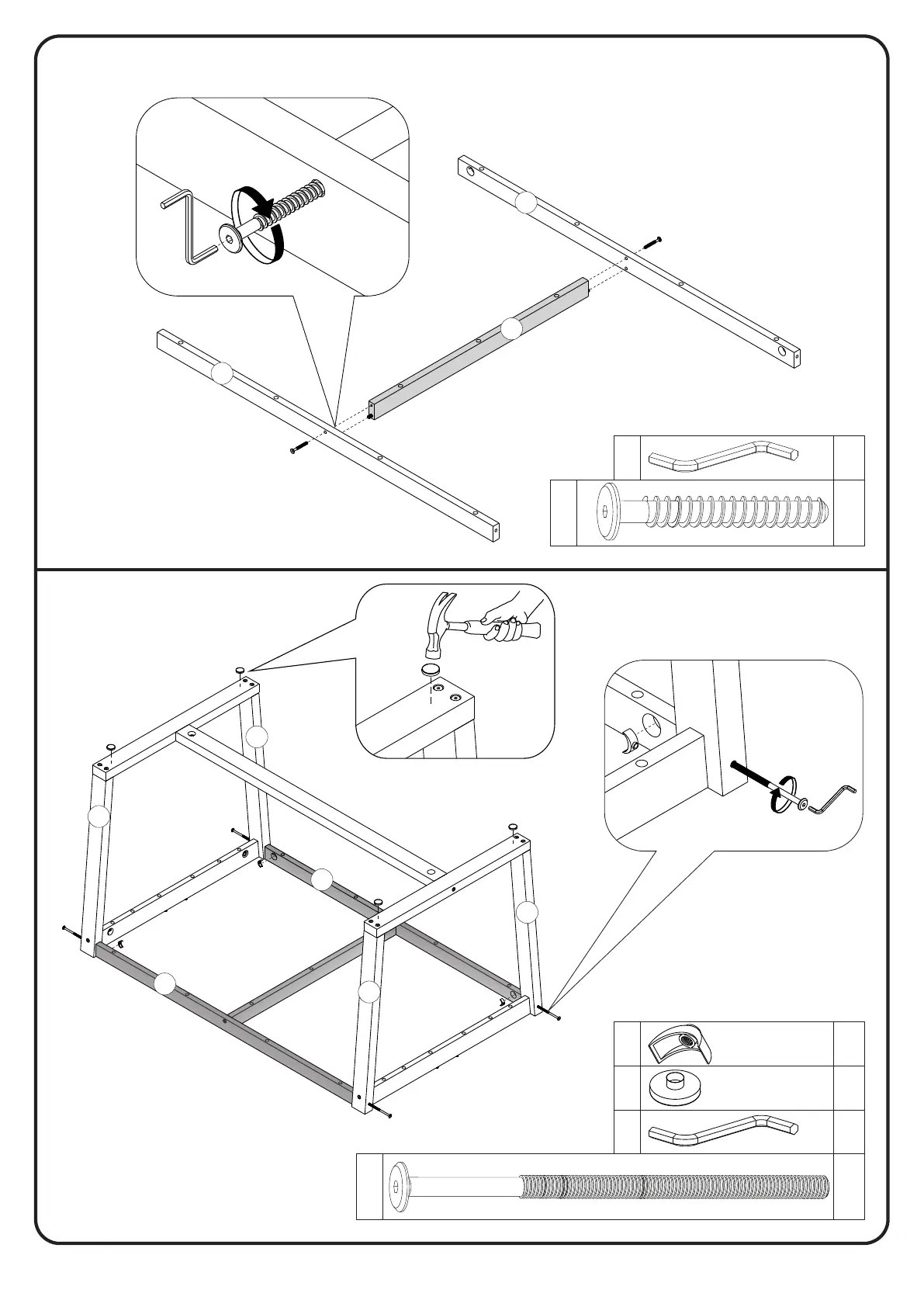

Attach part (6) to part (5)
using bolt (D) and hex key (I).
5
5
6
D
D
I
04
G
Barrel nut
5
5
1
1
1
1
H
H
H
H
A
G
G
A
A
A
G
G
H
G
A
I
Attach part (1) to part (5)
using bolt (A) with barrel nut (G)
and hex key (I). Complete this step
four times. Attach plastic feet (H)
to leg frame using a hammer.
