Walker Edison W58SBD - Base Structure Assembly

Step 8
Step 7
Copyright
©
2018, by Walker Edison Furniture Co., LLC. All rights reserved.
P.8
21 3
20
20
P
J
J
2

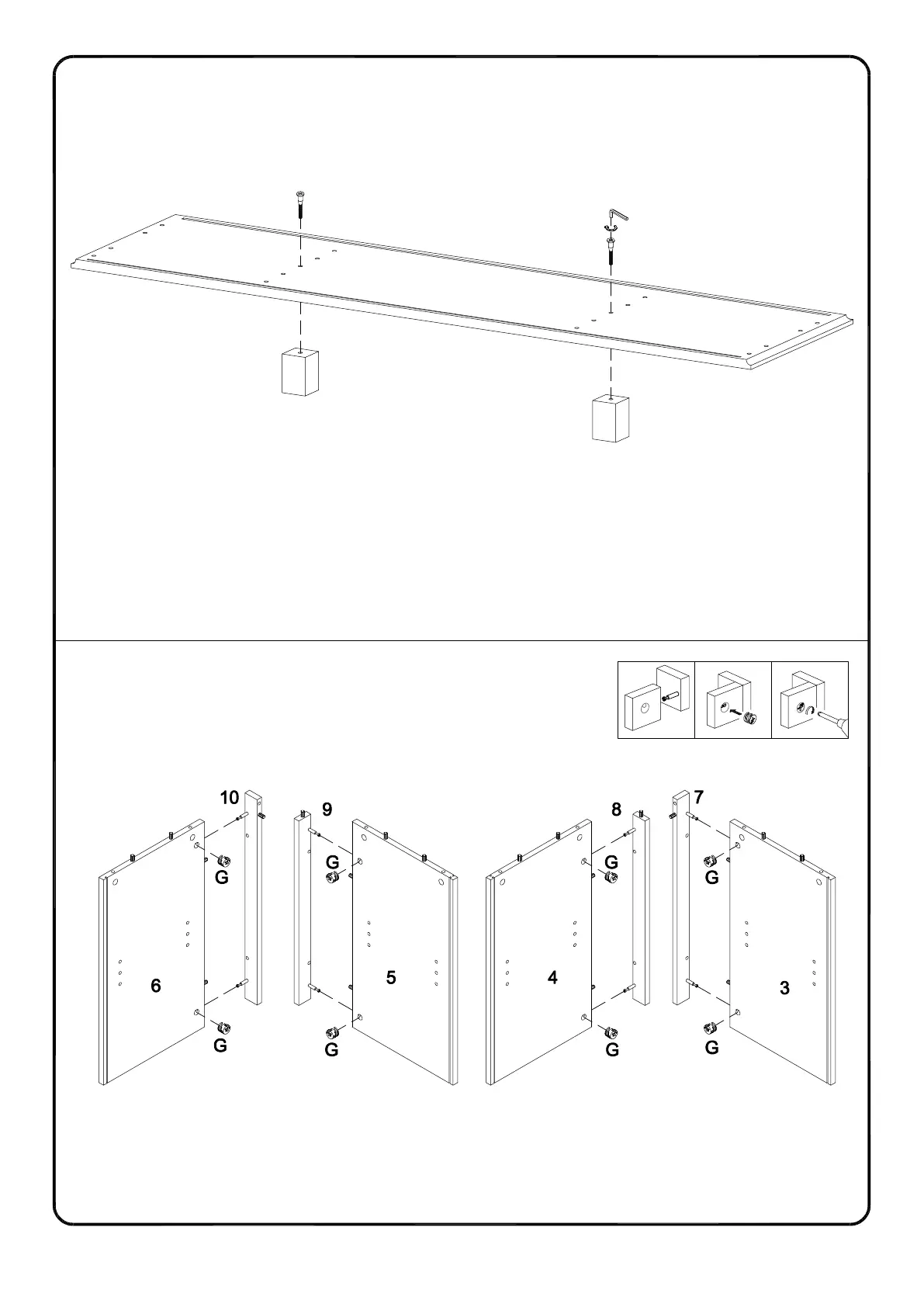

Attach part (20) to part (2) using bolt (J) with hex key (P).
Attach part (7,8,9,10) to part (3,4,5,6), then insert and secure cam lock (G) to part (3,4,5,6)
to lock it.
