Walker Edison W58SBD - Main Box Assembly

Step 10
Step 9
Copyright
©
2018, by Walker Edison Furniture Co., LLC. All rights reserved.
P.9
21 3
G
G
7
8
9
10
15
3
4
5
6
2
J x8
P

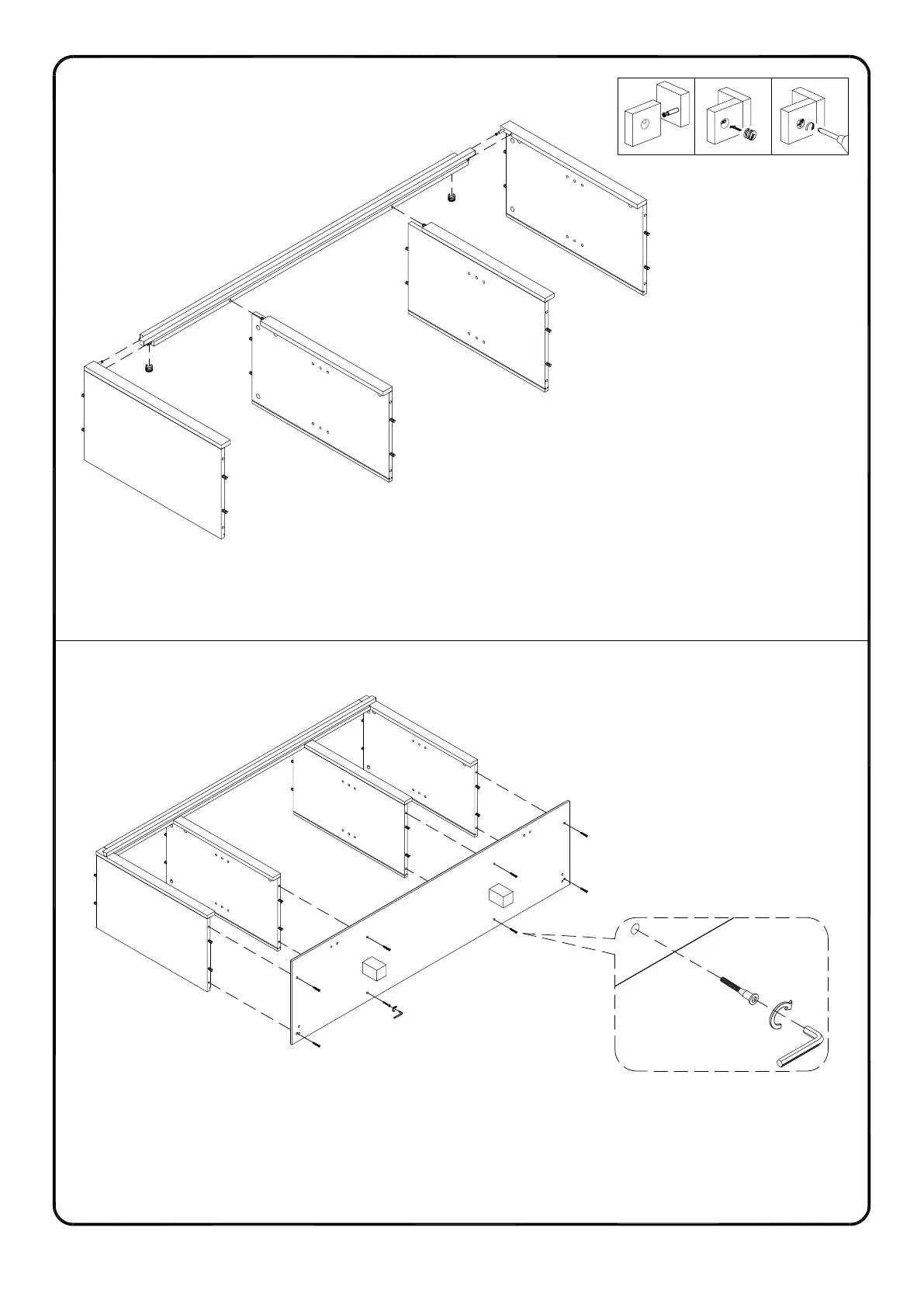

Attach part (7,8,9,10) to part (15), then insert and secure cam lock (G) to part (15) to lock it.
Attach part (2) to part (3,4,5,6) using bolt (J) with hex key (P).
