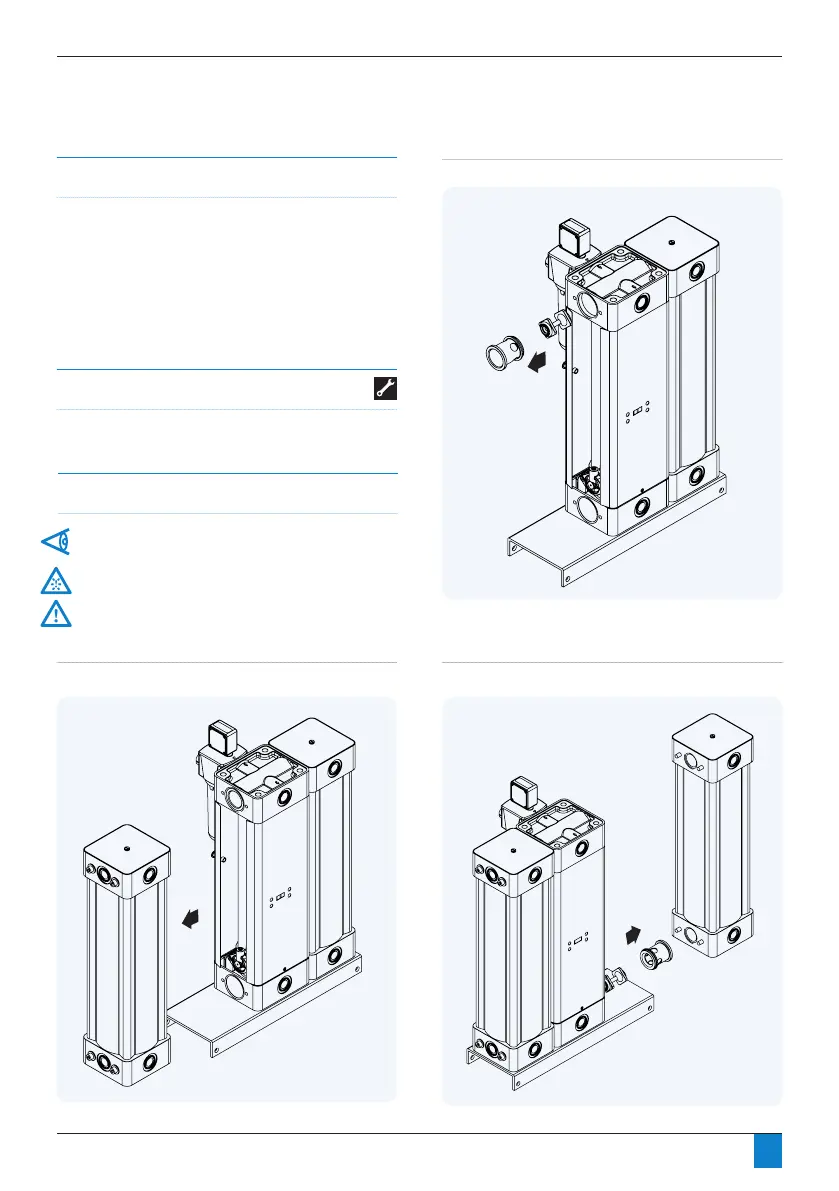

Figure 6.24: PD045-PD365 Shuttle seat and shuttle removal (Top block)
Replacing Shuttle Valves
Models PD045-PD365
• Remove tower
• Pull out shuttle seat
• Remove shuttle
• Replace shuttle
• Reinsert shuttle seat
• Re-secure tower
Tools required
• 8mm hex key
Section 6: Maintenance
Figure 6.25: PD045-PD365 Shuttle seat and shuttle removal (Bottom block)
Important information
Ensure shutdown and start-up procedures are followed prior
to carrying out any maintenance work on the dryer.
Walker Filtration will not accept responsibility for physical
injury, damage or delays caused by failure to observe the
instructions in this manual and manuals provided with your
equipment.
Figure 6.27: PD045-PD365 Tower removal
