WALKER FILTRATION PD006 - Component Parts

50
Pro Dry Instruction Manual | Walker Filtration | www.walkerltration.com
1
9
2
5
10
7
6
8
4
3
11

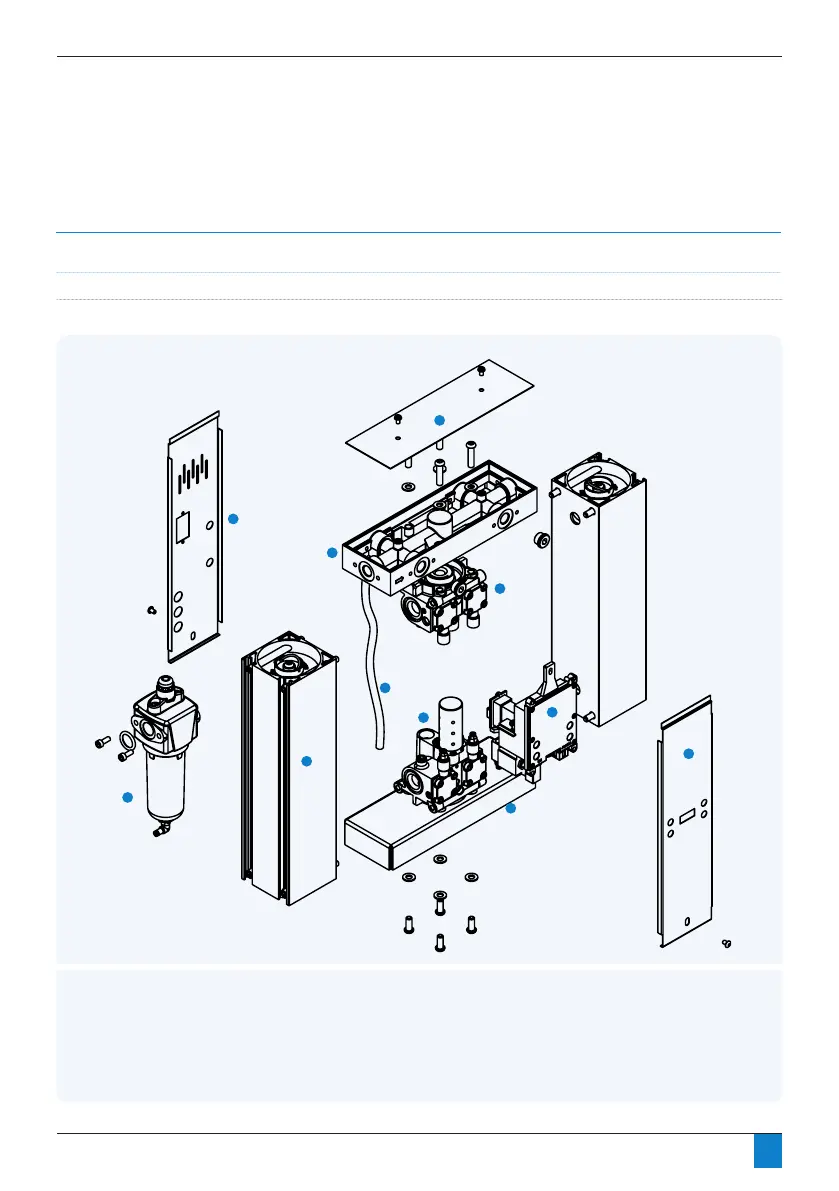

Fig 10.1 PD004 – PD035
PD004 -- PD035
1. Cover plate
2. Cruciform
3. Tower assembly
4. Front panel
5. Top block assembly
6. Controller
7. Bottom block assembly
8. Base/skid
9. Back panel
10. Downpipe
11. XA pre-filter
Section 10: Component Parts
Component Parts
