Safety Instructions
16

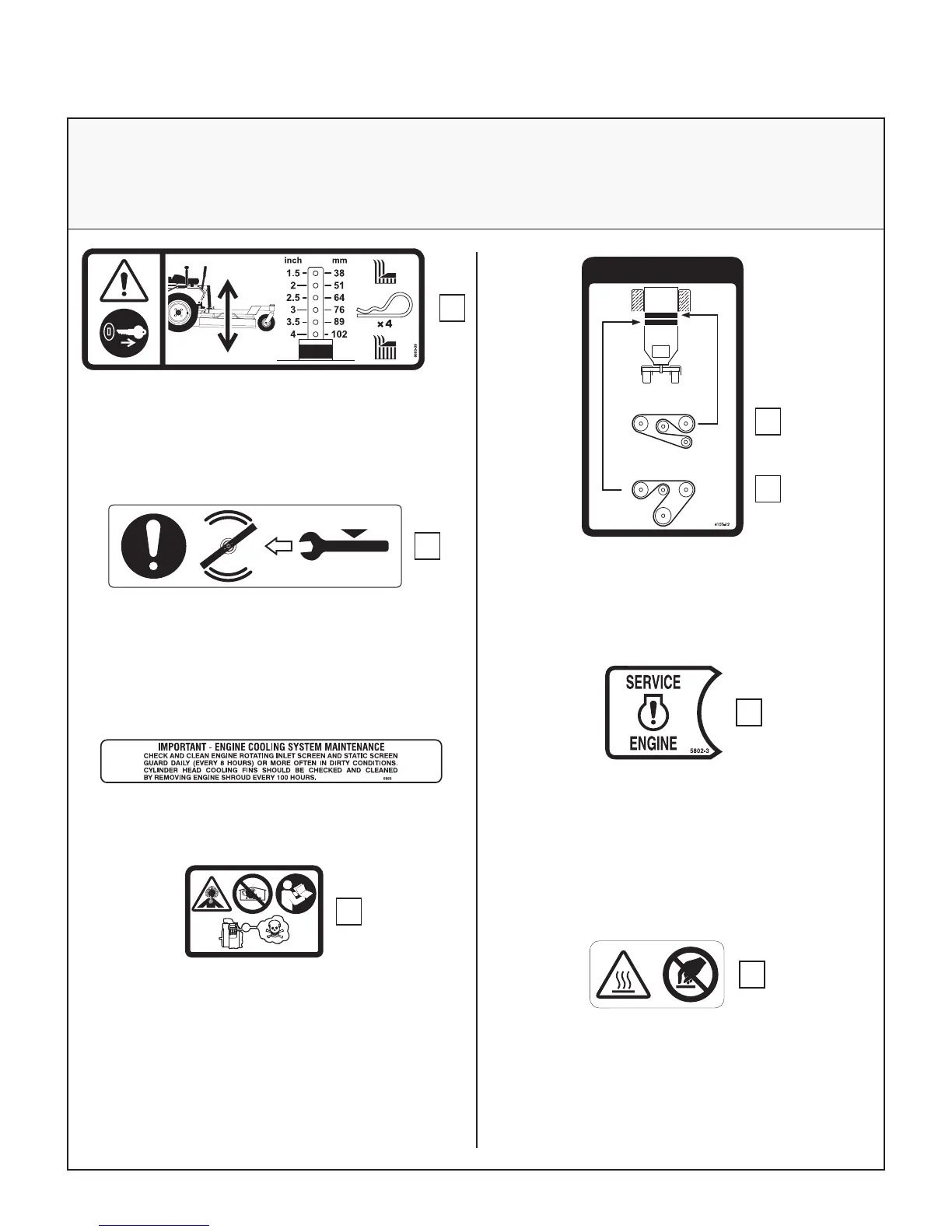

SAFETY, CONTROL, AND INSTRUCTION DECALS
Safety, Control, and Instruction Decals are installed on the machine;
if any are missing, illegible, or damaged, a replacement should be ordered and installed before
putting the machine into operation. The Decal Part Number is listed below and in the Parts Manual.
Location: Gearbox Cover
(Gear Drive Decks Only)
Part Number: 8600-9
Location: Rear Body
Part Number: 4107-12
Location: Engine Shroud
Part Number: 5855
Location: Engine
Part Number: 8600-12
1. Warning - stop engine and remove ignition key
before adjusting deck cutting height.
1. Tighten blade nuts on gear driven decks to
60 lb
·ft (81 N·m).
1. Ground drive belt routing.
2. Engine/PTO clutch belt routing.
1. Warning – carbon monoxide (CO) poisoning
hazard.
• CO emitted by a running engine can be deadly.
• Do not operate indoors or in other enclosed
areas.
Location: Rear Body Near Mufer
Part Number: 8600-5
8600-5
1.
1. Warning – hot surface, do not touch.
Location: Front Body
Part Number: 5802-3
1. Engine Service Indicator Light
• If illuminated during operation contact an
authorized Kohler Service Dealer as soon as
possible.
8600 -12
1.
1.
1.
8600-9
60 lb·ft (81 N·m)
GROUND DRIVE BELT
WALKER P/N 4230-2
ENGINE/PTO BELT
WALKER P/N 4230-1
BELT ROUTING
4107-12
1.
2.
Location: Deck Gearbox Cover
Part Number: 8600-39
1.
