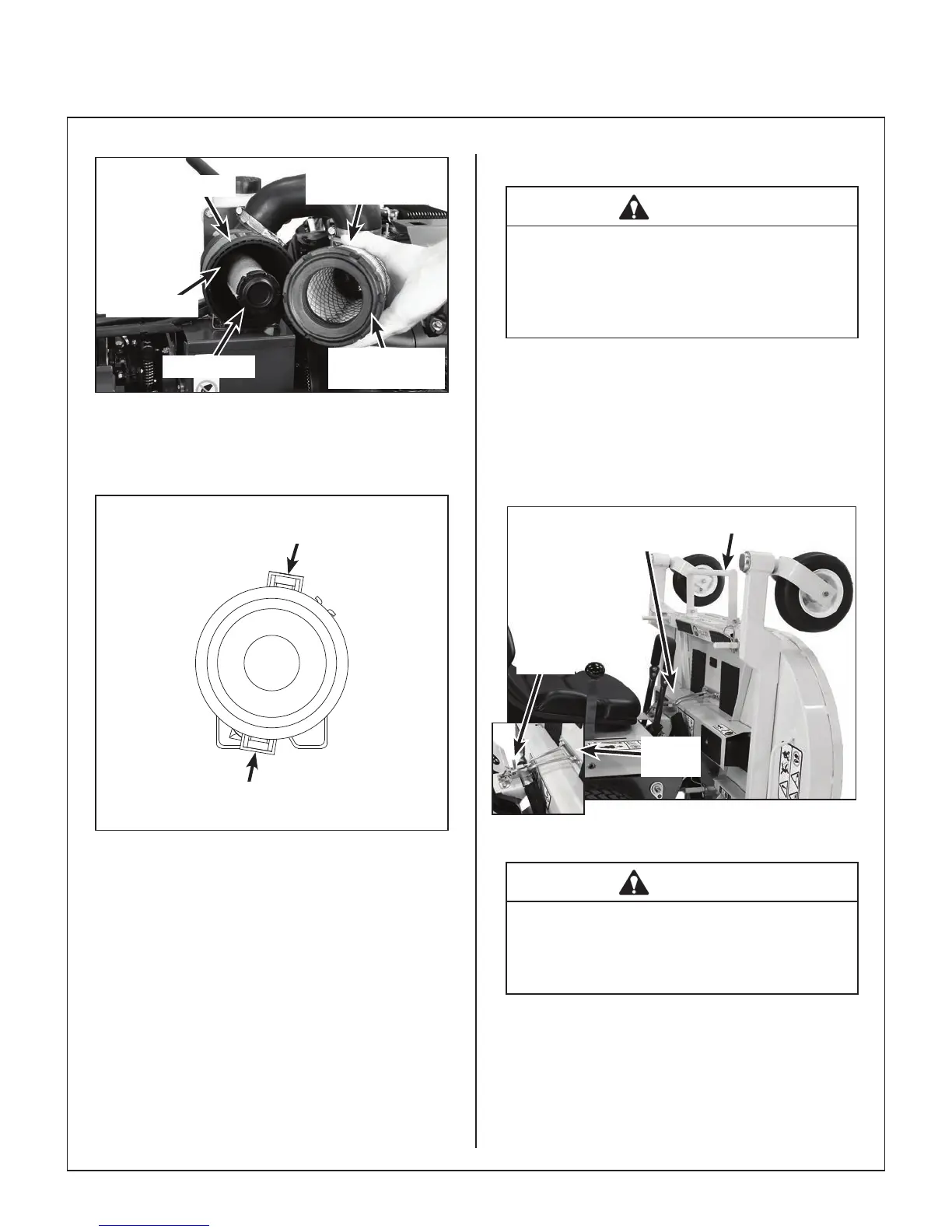

Walker B23i - Grass Buildup in Mower Deck Housing

Maintenance Instructions CLEANING
49
Primary
Filter Element
Radial Sealing
Surface
Canister
Safety Filter
Outlet Tube
Air Filter Element Replacement
10. Install the Enginaire™ air cleaner cover. Latch
the two (2) cover latches.
Cover
Latch
Cover
Latch
Proper Orientation of Air Cleaner Cover
11. Check the air intake hose for cuts, nicks, cracks,
etc., and the hose clamps for tightness.
12. Reset the air filter restriction gauge (press but-
ton on the end of the indicator).
Grass Buildup in Mower Deck Housing
DANGER
Before raising or removing the mower
deck for cleaning, stop the engine, re move
the ignition key, and disconnect the spark
plug wires.
1. Raise the deck lock lever handle on each side
of the carrier frame and pull out to release car-
rier frame for tilting action.
2. Using the carrier frame lift handle, raise deck to
the TILT-UP position and insert the deck hook
into the tilt-up latch on the tractor body.
Tilt Bar
Tilt-Up
Latch
Tilt-Up Hook and
Latch Connected
Tilt-Up
Hook
Deck Secured in TILT-UP Position
DANGER
Do not operate the mower with deck in tilt-
up position. Do not move the tractor with
the deck in the tilt-up position.
