Maintenance Instructions LUBRICATION
42
Ident Lubrication No.
No. Location Type Places
Ident Lubrication No.
No. Location Type Places
1 Deck Caster Wheel Fork Pivot Grease 2
2 Deck Caster Wheel Bearing Grease 2
3 Blade Spindle Grease
Δ
3
4 Pivot Assembly, Tilt-Up Deck Grease 4
5 Deck Support Arm Socket Grease 2
6 Right Angle Gearbox Oil*
Δ
1
7 Universal Joint Shaft Assembly Grease** 1(2
Δ
)
8 Dolly Wheel Retract Oil
Δ
1
Lever and Linkage
9 Dolly Wheel Pivot Grease
Δ
1
10 Idler Arm Pivot Grease
Δ
1
11 Tee Gearbox, Deck Oil* 1
12 Blade Drive Gearbox Oil* 2
13 Steering Lever Pivot Grease 2
14 Deck-to-PTO Coupling Grease 1
(Grease Spline Slide Area)
15 Universal Joint Tube Assembly Grease** 1
16 Deck Support Arm Pivot Grease 2
17 FSC Lever Pivot Grease 1
18 Body Latch Pivot Oil 1
19 Clutch Actuator Spring Assembly Grease 1
20 Hydro Idler Pivot Grease 1
21 PTO Clutch Lever Pivot Grease 1
22 Transaxle Oil Reservoir Oil/20W-50 1
23 Tail Wheel Caster Fork Pivot Grease 2
24 Rear Axle Pivot Grease 1
25 Rear Wheel Bearing Grease 2
26 Engine Dipstick Oil*** 1
27 Throttle Control Cable Ends Oil 2
28 Engine Oil Filler Oil*** 1
29 Brake Band Pivot Pins Oil 2
30 PTO Belt Tightener Pivot Grease 1
31 Parking Brake Clevis Oil 2
32 Parking Brake Lever Grease 1
33 Throttle Control Pivot Oil 1
* Gearboxes are permanently lubricated and sealed requiring
no scheduled lubrication. Oil level should be checked only
when an oil leak is noted.
** Grease every 25 hours.
*** Refer to Engine Oil located on page 39.
Δ
Belt Driven Decks Only
NOTE: DS42 and DS52 Tilt-Up Decks are shown for reference.
For other Deck Lubrication Points, refer to Deck and Car-
rier Frame Illustrated Parts Manual.

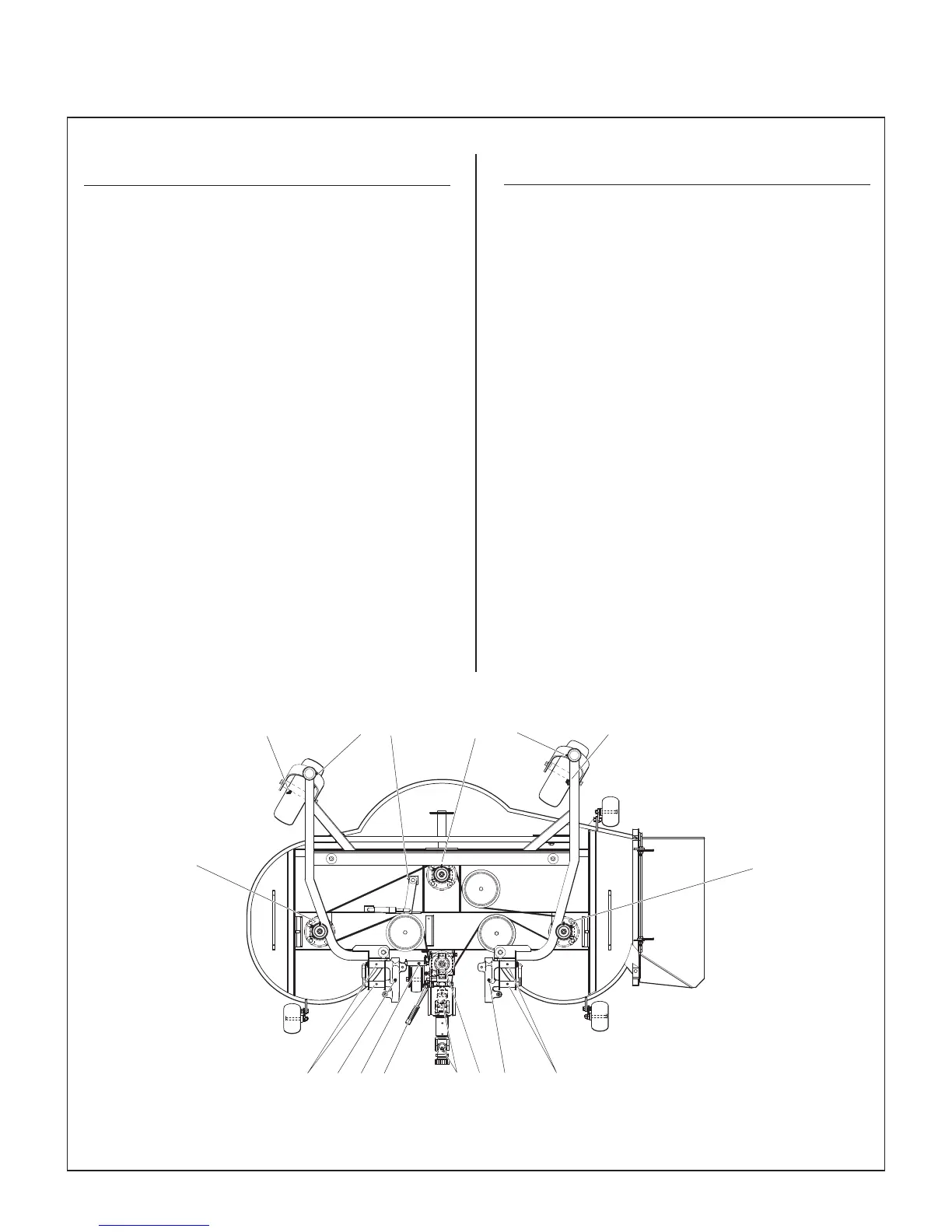

Lubrication Points for Optional Belt Driven Decks (DS52 Shown)
