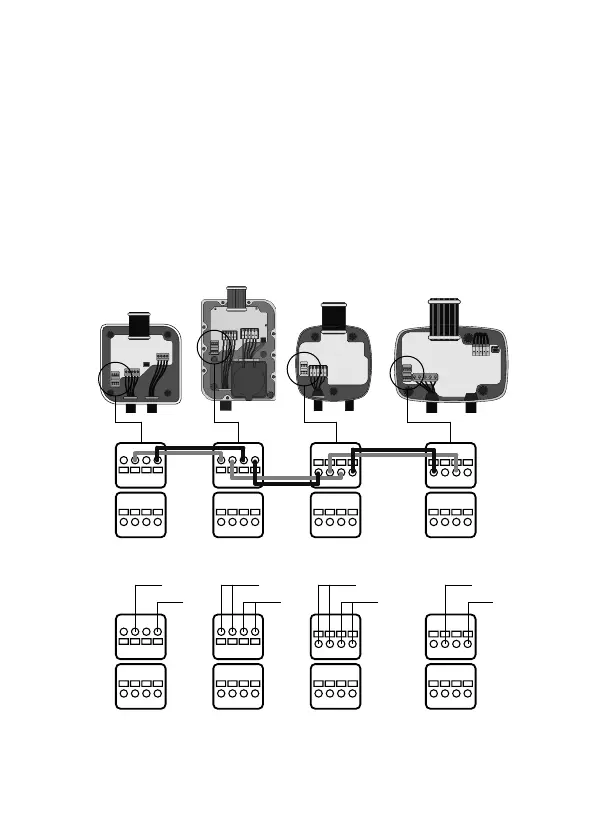

Cabling Network
Copper, Commander 2 and Pulsar Plus have
two slots for input and output cabling so the
conjunction is done inside the charger.
T Connection
Copper
Copper SB Rev. A
NT Connection
Copper
Copper SB Rev. A
NT Connection
Pulsar Plus
Commander 2
Copper SB Rev. B
T Connection
Pulsar Plus
Commander 2
Copper SB Rev. B
CAN-H
CAN-H
CAN-H
CAN-H
CAN-H CAN-L CAN-L
CAN-L
CAN-L
CAN-L
CAN-L
CAN-L CAN-H CAN-H
T NT NT T
1.
